About the product

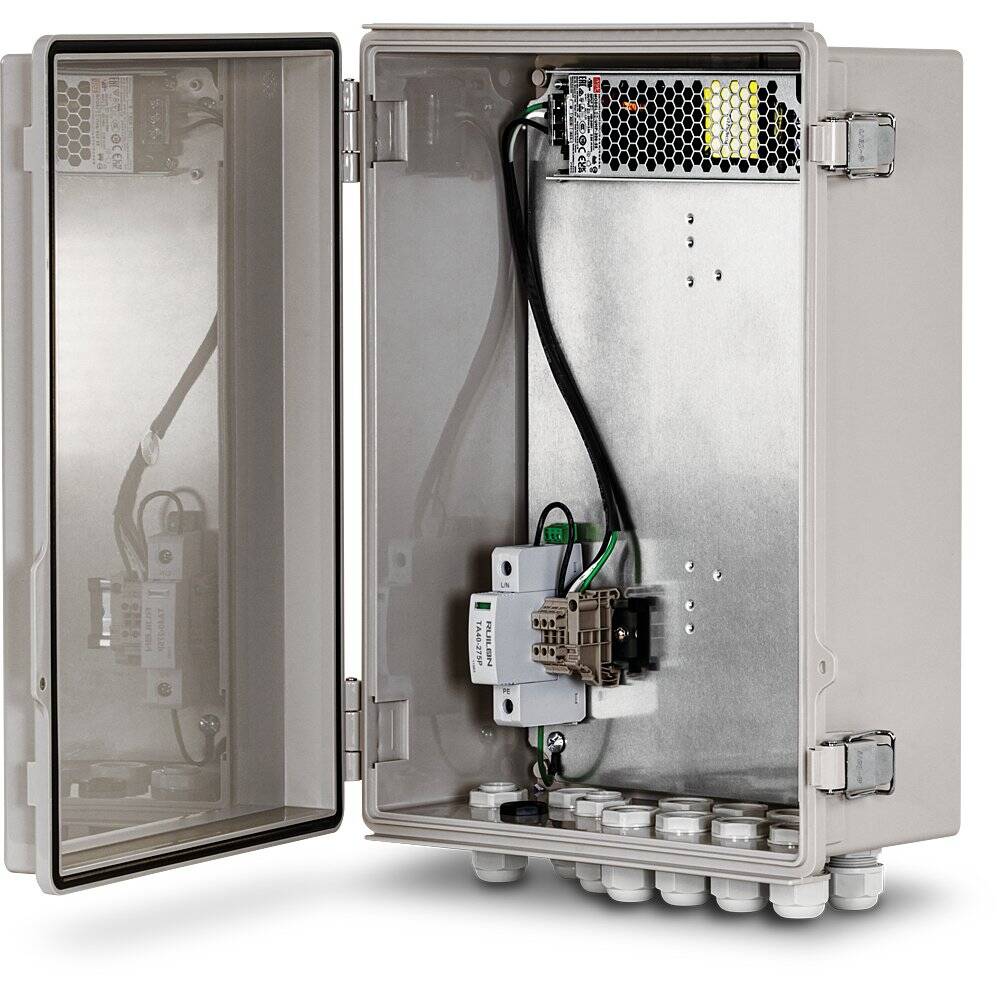

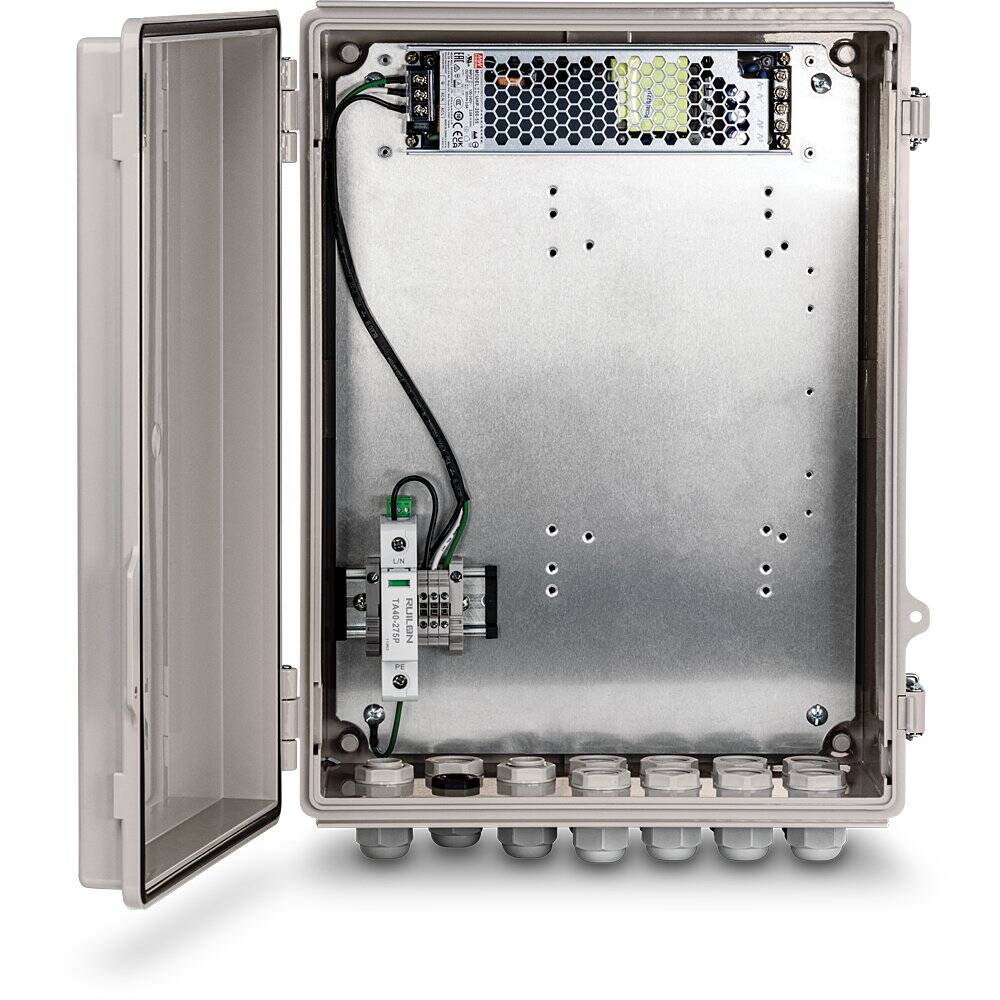

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply is a rugged polycarbonate enclosure with IP68 ingress protection and IK10 impact protection for challenging hot or cold outdoor environments or installations where non-covered outdoor network installations are required. Perfect for jobsites, railroad, transportation or rolling stockyard applications, or any challenging outdoor install that requires additional device protection. Includes an internal power supply that provides up to 200W (55VDC @ 3.6A) of power to industrial equipment like PoE switches, injectors, wireless access points, security cameras, and more with built-in 20kA @ 2/20 ?s surge protection. With an extreme -30° – 70° C (-22° – 158° F) temperature range, and convenient mounting options for additional TRENDnet products with the TI-BK01 bracket (sold separately), the TI-CA3K provides industrial outdoor protection in a durable, wall-mounted design.
TI-CA3K Specs and Features:
- Wall-mounting hardware included
- 20kA @ 2/20 ?s surge protection
- Polycarbonate IP68 rated construction
- 1.6mm SPHC hot rolled steel case
- FIPFG sealing
- Waterproof door lock
- 11 cable glands
- Power
- Input: 100-240V AC
- Output: 200W, 55V DC 3.6A
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- 18 AWG power cable included
- Extreme -30° – 70° C (-22° – 158° F) temperature range
- Dimensions: 400 x 300 x 150mm (15.75 x 11.8 x 5.9 in.)
- Weight: 3.4kg (7.5 lb.)
- Certifications: CE, FCC, UL 62368, CB IEC 62368
- Package Includes
- 1x TI-CA3K
- Quick Installation Guide
- Wall mount accessories and power cable
- Warranty
- Case: Lifetime
- Power supply: 1 year
- Surge protector: 1 year
Technical Specifications
The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply is a rugged polycarbonate enclosure with IP68 ingress protection and IK10 impact protection for challenging hot or cold outdoor environments or installations where non-covered outdoor network installations are required. Perfect for jobsites, railroad, transportation or rolling stockyard applications, or any challenging outdoor install that requires additional device protection. Includes an internal power supply that provides up to 200W (55VDC @ 3.6A) of power to industrial equipment like PoE switches, injectors, wireless access points, security cameras, and more with built-in 20kA @ 2/20 ?s surge protection. With an extreme -30° – 70° C (-22° – 158° F) temperature range, and convenient mounting options for additional TRENDnet products with the TI-BK01 bracket (sold separately), the TI-CA3K provides industrial outdoor protection in a durable, wall-mounted design.
TI-CA3K Specs and Features:
- Wall-mounting hardware included
- 20kA @ 2/20 ?s surge protection
- Polycarbonate IP68 rated construction
- 1.6mm SPHC hot rolled steel case
- FIPFG sealing
- Waterproof door lock
- 11 cable glands
- Power
- Input: 100-240V AC
- Output: 200W, 55V DC 3.6A
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- 18 AWG power cable included
- Extreme -30° – 70° C (-22° – 158° F) temperature range
- Dimensions: 400 x 300 x 150mm (15.75 x 11.8 x 5.9 in.)
- Weight: 3.4kg (7.5 lb.)
- Certifications: CE, FCC, UL 62368, CB IEC 62368
- Package Includes
- 1x TI-CA3K
- Quick Installation Guide
- Wall mount accessories and power cable
- Warranty
- Case: Lifetime
- Power supply: 1 year
- Surge protector: 1 year
