About the product

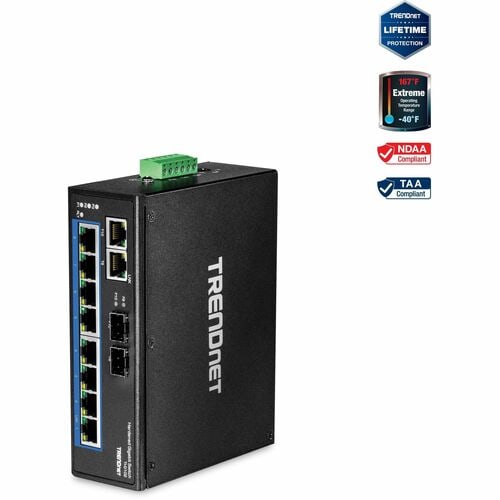

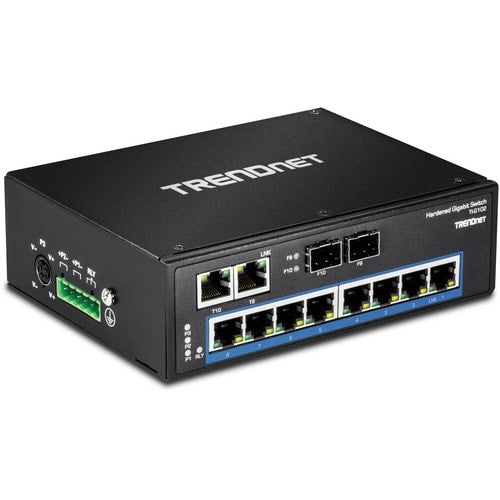

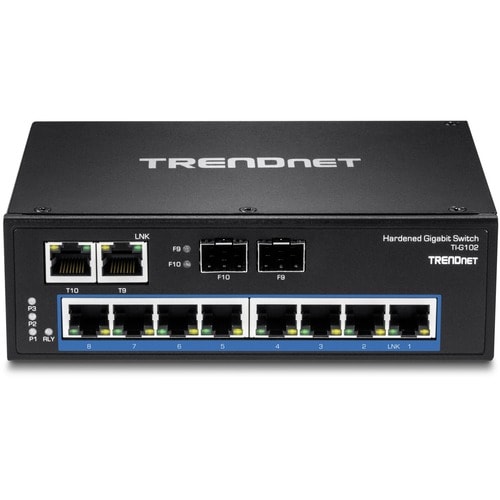

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 75C (-40 167F) for industrial environments.
TRENDnet TI-G102 Features
TRENDNET TI-G102 Specifications
Standards- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x

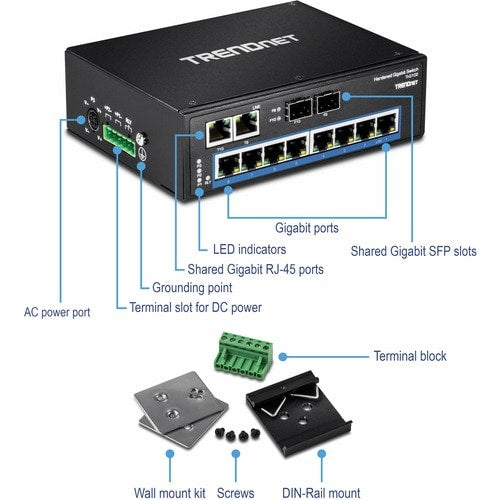

- 8 x Gigabit ports
- 2 x Gigabit Ethernet ports

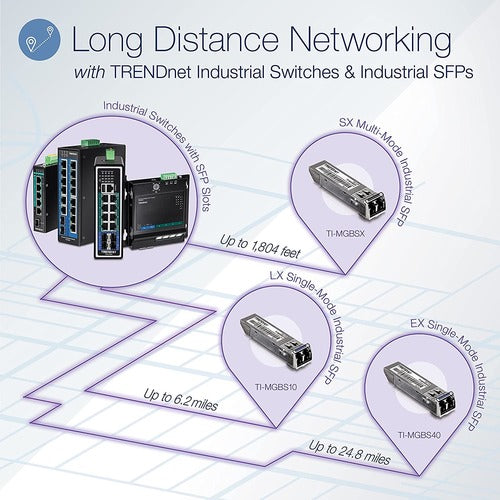

- 2 x Shared SFP slots
- 6-pin removable terminal block
- LED indicators

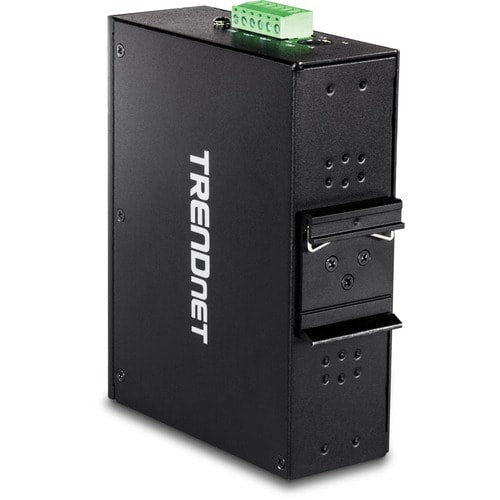

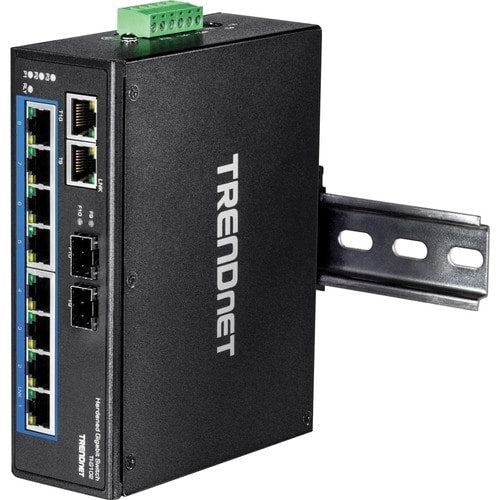

- DIN-Rail mount
- Wall mount
- Grounding point
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Data RAM Buffer: 2048 KB
- Switching Fabric: 20 Gbps
- MAC Address Table: 16 K entries
- Forwarding rate: 14.8 Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 6KV protection
- Input: 12 - 56 V DC
- Compatible power supply: TI-M6024 (sold separately)
- Consumption: 5.76 W max.

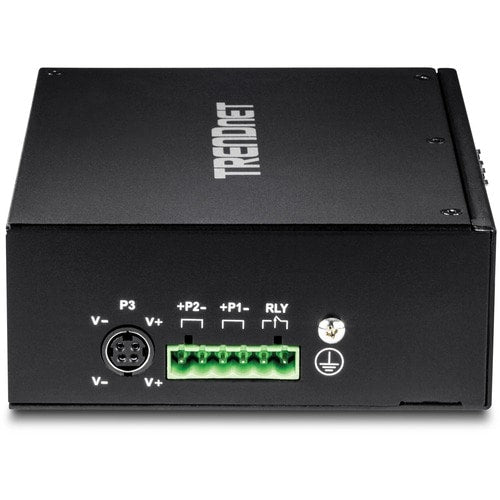

- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-24 / 14-22
- Stranded wire (AWG): 12-24 / 14-22
- Torque: 5 lb. In / 0.5 Nm / 0.56 Nm
- Wire strip length: 7-8 mm
- Relay outputs with current carrying capacity of 1 A, 24 V DC
- Open circuit mode when two power sources are connected
- Short circuit mode when only one power source is connected
- 510,400 hours
- IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- ESD 6 KV protection
- - 40 to 75 C (-40 to 167 F)
- Max. 95 % non-condensing

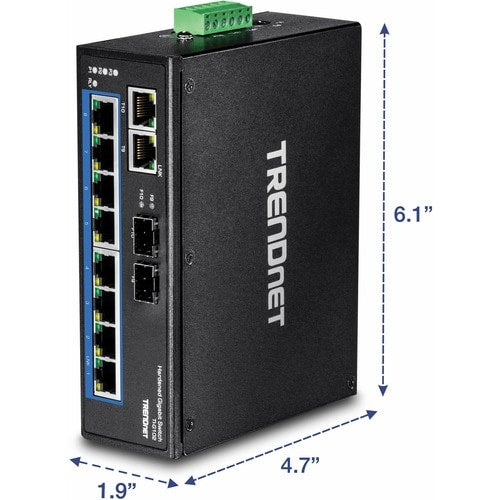

- 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)
- 415 g (1.1 lb)
- CE
- FCC
- Shock (EN 60068-2-27)
- Freefall (EN 60068-2-32)
- Vibration (EN 60068-2-6)

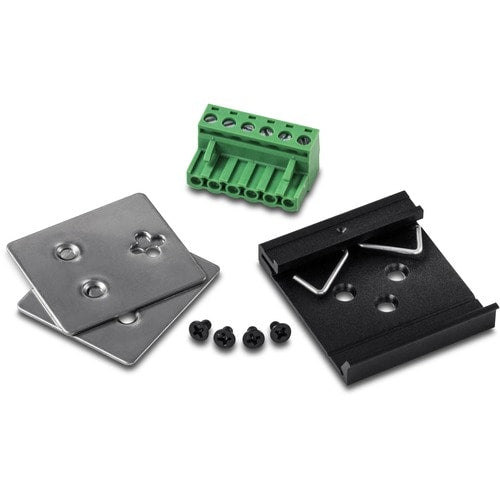

What's Included
