About the product

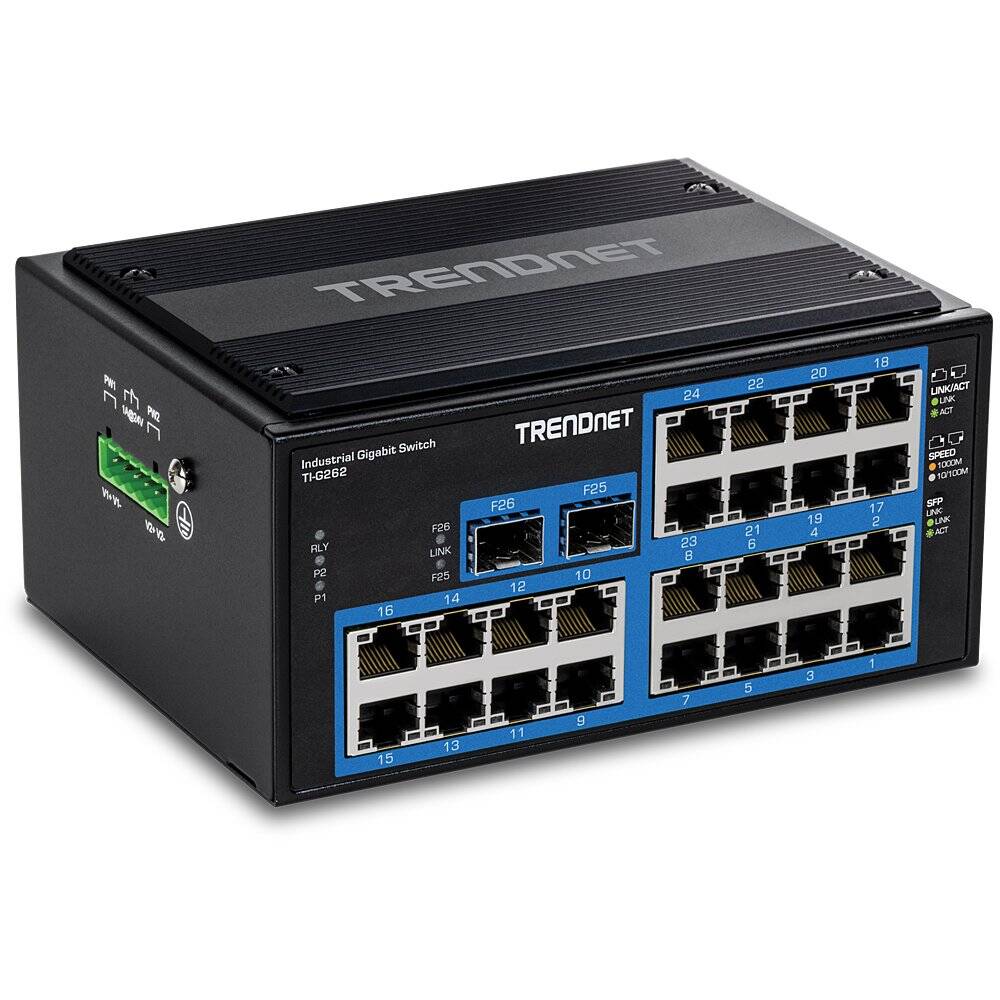

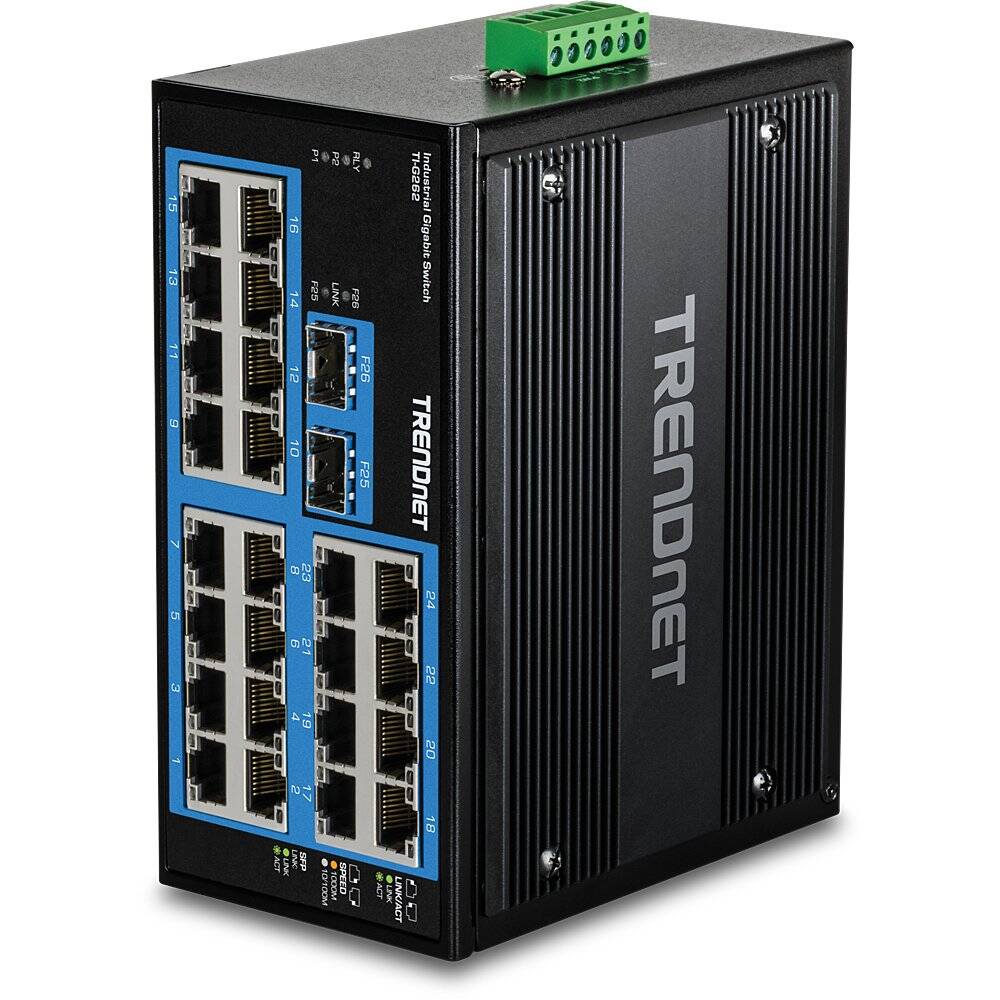

The TRENDnet 26-Port Industrial Gigabit DIN-Rail Switch is an industrial-grade rail- or wall-mounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-G262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
The TI-G262 also features redundant power inputs for mission-critical networking operations, and dry-contact alarm outputs rated at 24VDC @ 1 A, triggered by power failure or short circuiting, for complete integration into standard alarm systems to ensure that sensitive networking operations are running 24/7.
Please note: Power supply (TI-M6024 & TI-S15052) sold separately.
TI-G262 Specs and Features:
- Industrial-grade IP30 hardened enclosure
- DIN-Rail or wall mounted
- 8KV ESD protection and 2KV surge protection
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Device Interface:
- 24 x Gigabit ports
- 2 x SC multi-mode fiber port
- 6-pin removable terminal block
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2Gbps (full duplex)
- Fiber: 2Gbps (full duplex)
- Terminal Block:
- Redundant power inputs, alarm relay contact, 6-pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact:
- Relay outputs with current carrying capacity of 1A, 24V DC
- Short circuit mode when two power sources are connected
- Open circuit mode when only one power source is connected
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 163 x 120 x 77mm (6.41 x 4.72 x 3.03 in.)
- Weight: 936g (2.06 lbs.)
- Certifications: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- 1x TI-G262
- Quick Installation Guide
- Removable terminal block
- DIN-Rail / wall mount kit
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 26-Port Industrial Gigabit DIN-Rail Switch is an industrial-grade rail- or wall-mounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range. The TI-G262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
The TI-G262 also features redundant power inputs for mission-critical networking operations, and dry-contact alarm outputs rated at 24VDC @ 1 A, triggered by power failure or short circuiting, for complete integration into standard alarm systems to ensure that sensitive networking operations are running 24/7.
Please note: Power supply (TI-M6024 & TI-S15052) sold separately.
TI-G262 Specs and Features:
- Industrial-grade IP30 hardened enclosure
- DIN-Rail or wall mounted
- 8KV ESD protection and 2KV surge protection
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Device Interface:
- 24 x Gigabit ports
- 2 x SC multi-mode fiber port
- 6-pin removable terminal block
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2Gbps (full duplex)
- Fiber: 2Gbps (full duplex)
- Terminal Block:
- Redundant power inputs, alarm relay contact, 6-pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact:
- Relay outputs with current carrying capacity of 1A, 24V DC
- Short circuit mode when two power sources are connected
- Open circuit mode when only one power source is connected
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 163 x 120 x 77mm (6.41 x 4.72 x 3.03 in.)
- Weight: 936g (2.06 lbs.)
- Certifications: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- 1x TI-G262
- Quick Installation Guide
- Removable terminal block
- DIN-Rail / wall mount kit
- Lifetime Manufacturer’s Warranty
