About the product

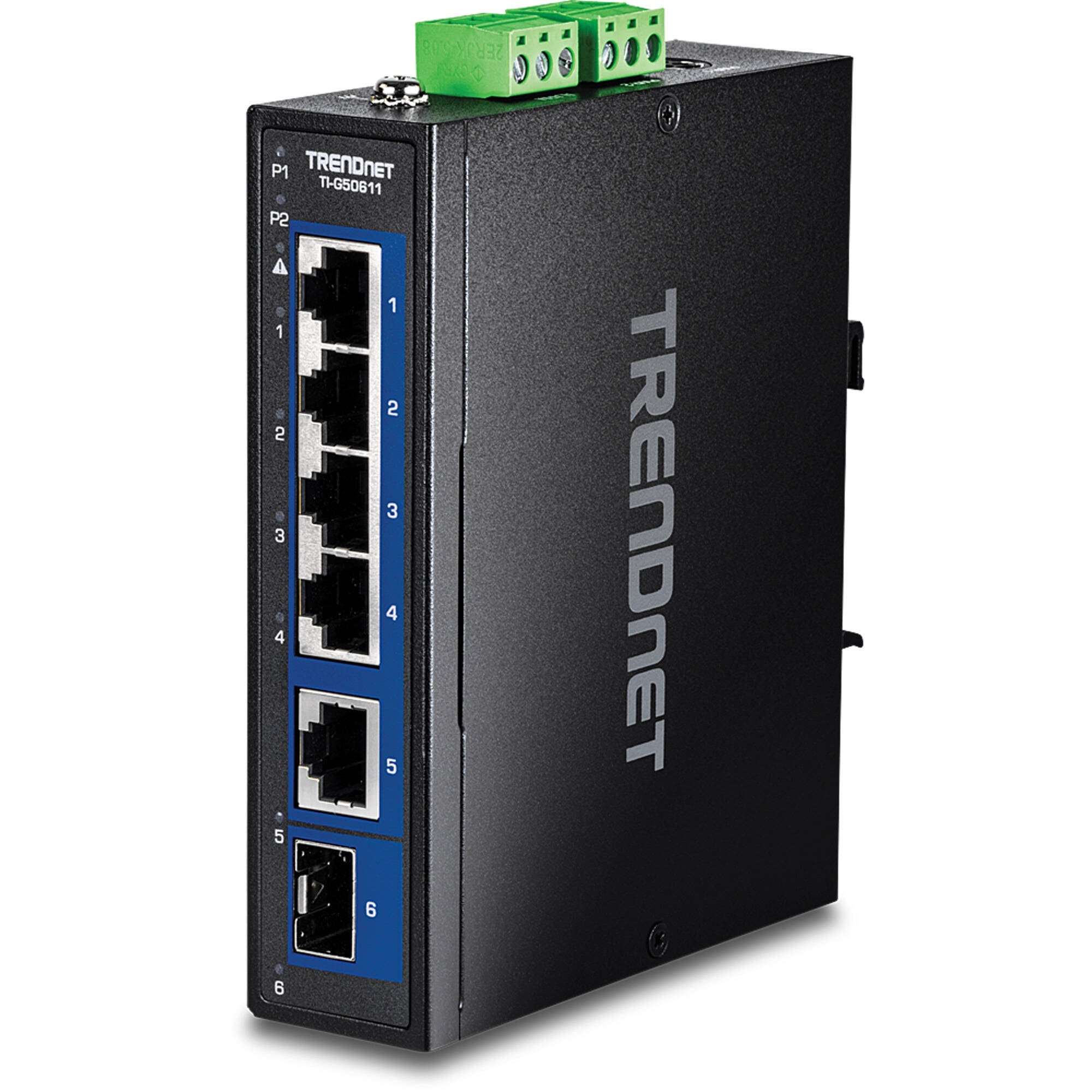

The TRENDnet 6-Port Industrial 2.5G DIN-Rail Switch with 10G Ports is an industrially hardened, IP50 rated 2.5G, 10G and fibre optic SFP+ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-G50611 Specs and Features
- Total Number of Network Ports: 6
- Modular: Yes
- Network (RJ-45): Yes
- Port/Expansion Slot Details: 4 x 2.5 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported: Twisted Pair, Optical Fiber
- Ethernet Technology: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Network Technology: 2.5GBase-T, 10GBase-T, 10GBase-X
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 1
- Layer Supported: 2
- Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
- MTBF: 798907 Hour
- Input Voltage: 9 V DC, 60 V DC
- Power Source: Power Supply, Power Adapter
- Power Consumption: 12.80 W
- Plug/Connector Type: Terminal Block
- Product Material: Metal
- Form Factor: DIN Rail Mountable, Wall Mountable
- Dimensions (H x W x D): 1.18"" (30 mm) x 4.72"" (120 mm) x 3.86"" (98 mm)
- Weight (Approximate): 496 g
- Package Contents: 6-Port Industrial 2.5G DIN-Rail Switch with 1 x 10G Port, Quick Installation Guide, Removable Terminal Blocks,DIN-Rail / Wall Mount Kit
- Application/Usage: Network, Industrial, Wireless Access Point
- Certifications & Standards: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- TAA Compliant: Yes
- Limited Warranty: Lifetime
Technical Specifications
The TRENDnet 6-Port Industrial 2.5G DIN-Rail Switch with 10G Ports is an industrially hardened, IP50 rated 2.5G, 10G and fibre optic SFP+ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-G50611 Specs and Features
- Total Number of Network Ports: 6
- Modular: Yes
- Network (RJ-45): Yes
- Port/Expansion Slot Details: 4 x 2.5 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported: Twisted Pair, Optical Fiber
- Ethernet Technology: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Network Technology: 2.5GBase-T, 10GBase-T, 10GBase-X
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 1
- Layer Supported: 2
- Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
- MTBF: 798907 Hour
- Input Voltage: 9 V DC, 60 V DC
- Power Source: Power Supply, Power Adapter
- Power Consumption: 12.80 W
- Plug/Connector Type: Terminal Block
- Product Material: Metal
- Form Factor: DIN Rail Mountable, Wall Mountable
- Dimensions (H x W x D): 1.18"" (30 mm) x 4.72"" (120 mm) x 3.86"" (98 mm)
- Weight (Approximate): 496 g
- Package Contents: 6-Port Industrial 2.5G DIN-Rail Switch with 1 x 10G Port, Quick Installation Guide, Removable Terminal Blocks,DIN-Rail / Wall Mount Kit
- Application/Usage: Network, Industrial, Wireless Access Point
- Certifications & Standards: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- TAA Compliant: Yes
- Limited Warranty: Lifetime
