About the product

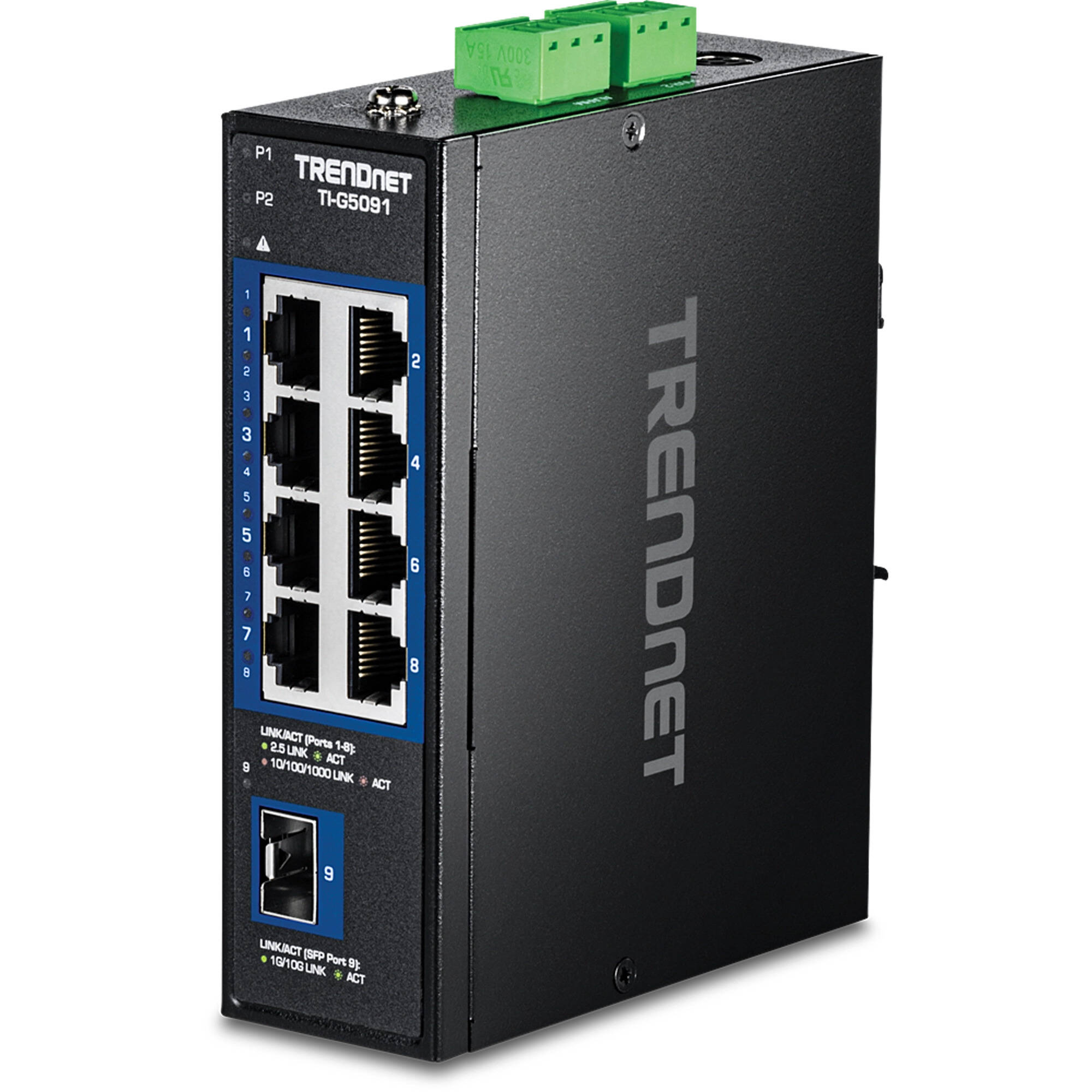

The TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Ports is an industrially hardened, IP50 rated 2.5G and fibre optic SFP+ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-G5091 Specs and Features
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz
- Device Interface: 8 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps), 1 x 10G SFP+ port (1000Mbps/10Gbps), 3-pin power terminal block, 3-pin alarm relay terminal block, Power port, LED indicators, Grounding point
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G SFP+: 20Gbps (full duplex)
- Data RAM Buffer: 1MB
- Switching Fabric: 60Gbps
- MAC Address Table: 4K entries
- Jumbo Frame: 12KB
- Forwarding Rate: 44.64Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 6kV protection
- Power: Input: 9 - 60V DC
- Compatible power supply: TI-M6024 (sold separately)
- Compatible power adapter: 48VDC3000 (sold separately)
- Max. consumption: 14W
- Terminal Blok: 3-pin terminal block
- Wire range: 2.5mm^2
- Solid wire (AWG): 16-28
- Stranded wire (AWG): 16-28
- Torque: 3 lb. – In / 0.3Nm / 0.33Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact: Relay outputs with current carrying capacity of 1A, 24V DC, Short circuit mode when two power sources are connected, Open circuit mode when only one power source is connected,
- MTBF: 615,965 hours
Housing: IP50 metal case, DIN-Rail mount, Wall mount - Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Operating Humidity: Max. 95% non-condensing
- Dimensions: 120 x 100 x 40mm (4.7 x 3.9 x 1.5 in.)
- Weight: 574g (20.2 oz.)
- Certifications: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Warranty: Lifetime Manufacturer's Warranty
Technical Specifications
The TRENDnet 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Ports is an industrially hardened, IP50 rated 2.5G and fibre optic SFP+ switch that can withstand extreme indoor environments ranging from -40°C up to 75°C, including industrial and high-traffic commercial environments. With shock, freefall and vibration protection, multiple power inputs with overload and current protection, the TRENDnet industrially hardened switches are perfect for permanent networking solutions for camera systems, extended fibre-optic networking, wireless access points, VoIP phone systems, IPTV decoders, access controls, and more.
Removable alarm relay terminal blocks provide extended alarming and relay control options with currents up to 1A @ 24VDC, increasing the security of any mission-critical networking installs by integrating into a standard panel alarm system or other extended security solutions.
Power supplies sold separately. Package includes optional DIN-Rail and wall mounting kits. NDAA/TAA compliant.
TI-G5091 Specs and Features
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz
- Device Interface: 8 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps), 1 x 10G SFP+ port (1000Mbps/10Gbps), 3-pin power terminal block, 3-pin alarm relay terminal block, Power port, LED indicators, Grounding point
- Data Transfer Rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G SFP+: 20Gbps (full duplex)
- Data RAM Buffer: 1MB
- Switching Fabric: 60Gbps
- MAC Address Table: 4K entries
- Jumbo Frame: 12KB
- Forwarding Rate: 44.64Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 6kV protection
- Power: Input: 9 - 60V DC
- Compatible power supply: TI-M6024 (sold separately)
- Compatible power adapter: 48VDC3000 (sold separately)
- Max. consumption: 14W
- Terminal Blok: 3-pin terminal block
- Wire range: 2.5mm^2
- Solid wire (AWG): 16-28
- Stranded wire (AWG): 16-28
- Torque: 3 lb. – In / 0.3Nm / 0.33Nm
- Wire strip length: 7-8mm
- Alarm Relay Contact: Relay outputs with current carrying capacity of 1A, 24V DC, Short circuit mode when two power sources are connected, Open circuit mode when only one power source is connected,
- MTBF: 615,965 hours
Housing: IP50 metal case, DIN-Rail mount, Wall mount - Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Operating Humidity: Max. 95% non-condensing
- Dimensions: 120 x 100 x 40mm (4.7 x 3.9 x 1.5 in.)
- Weight: 574g (20.2 oz.)
- Certifications: CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Warranty: Lifetime Manufacturer's Warranty
