About the product

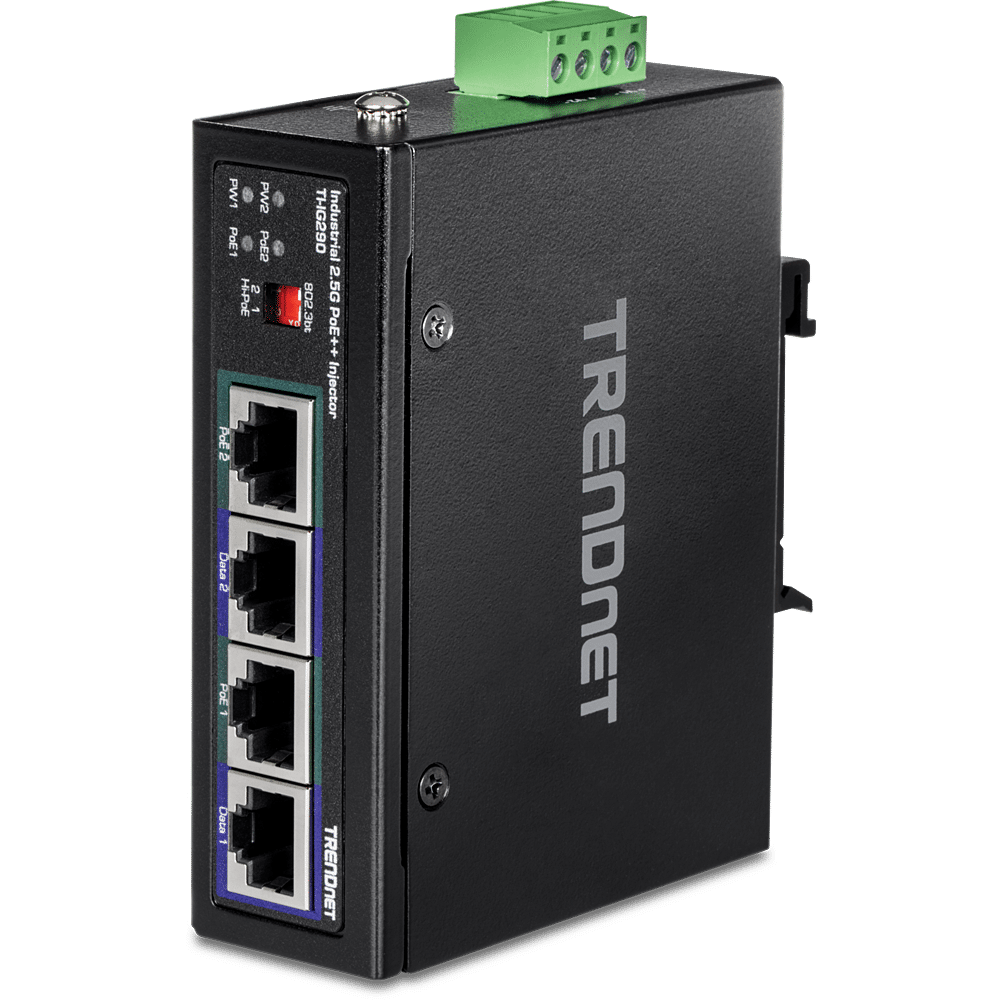

TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector Overview
TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30-rated metal enclosure, designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for harsh industrial environments.
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data in)
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
- Redundant power inputs with overload current protection

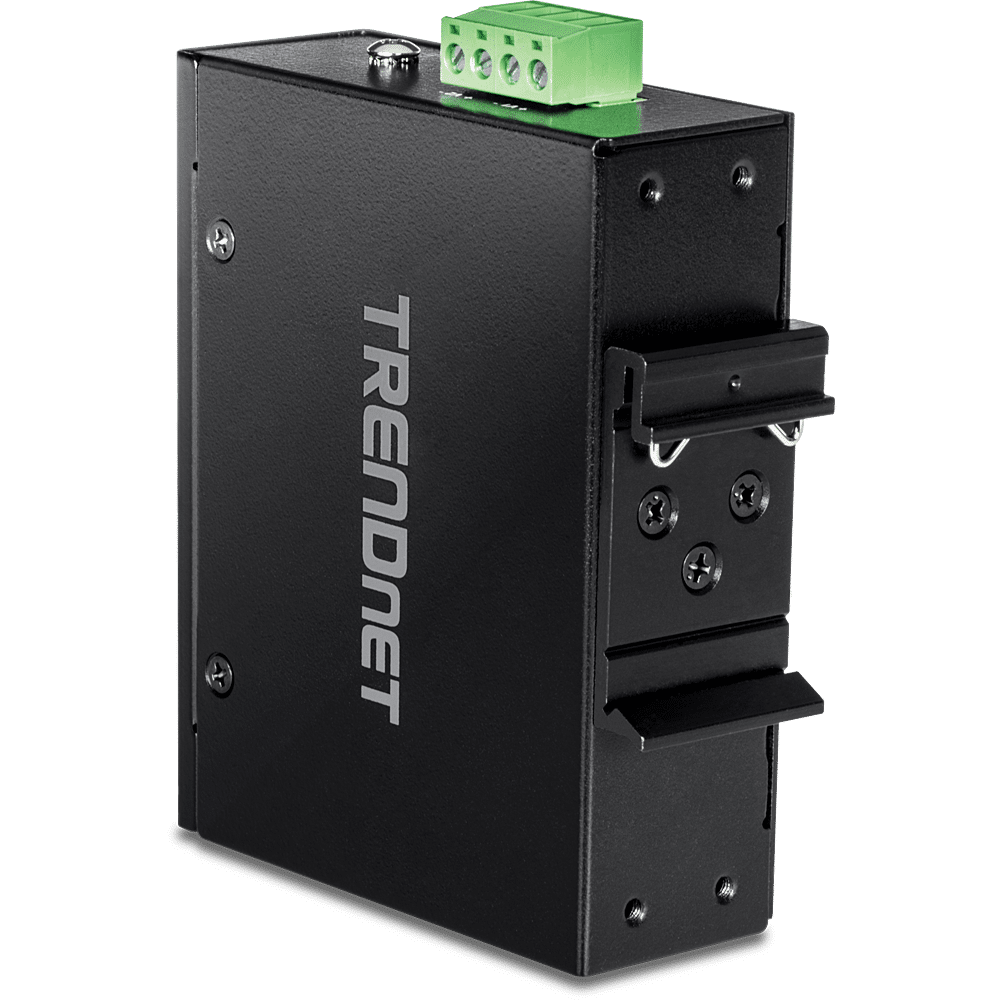

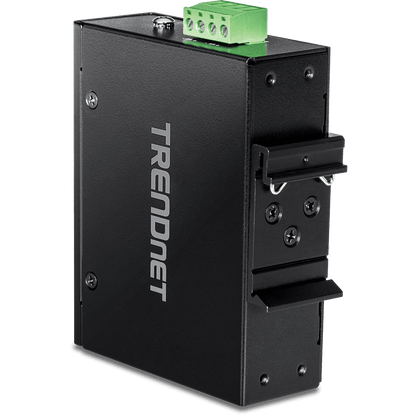

- Includes DIN-Rail mount and wall mount
- Power supply sold separately (model TI-S24048)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-IG290 95W 2-Port Industrial Injector Features
- 2-Port PoE
- This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.
- 2.5G Ports
- Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).
- Industrial Design
- IP30-rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 70° C (-40° – 158° F).
- 2-Port PoE++
- The 2-port industrial 802.3 bt PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices
- Industrial Features
- Equipped with an IP30-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments
- 2.5G Ports
- 2 x 2.5G ports (data in) and 2 x 2.5G PoE++ ports (data + PoE out)
- PoE Distance
- Provides two PoE network connections up to 100m (328 ft.) away from the 2-port industrial 802.3bt PoE++ adapter
- LED Indicators
- LEDs indicate PoE connectivity and power status
- Shock and Vibration Resistant
- Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- Grounding Point
- The grounding point protects equipment from external electrical surges
- Fanless Design
- Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption
TRENDnet TI-IG290 95W 2-Port Industrial Injector Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Device Interface
- 2 x 2.5GBASE-T ports
- 2 x 2.5GBASE-T PoE++ ports
- 4-pin removable terminal block
- LED indicators
- Wall mount
- Grounding point
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- 2.5 Gigabit: 5000Mbps (full duplex)
- Special Features
- 90W 4-Pair PoE ports
- 2.5Gbps speed
- Hardened components rated for extreme temperatures
- Dual redundant power inputs
- Auto-Negotiation
- Power
- Input: 52 – 56 V DC
- Compatible power supply: TI-S24048 (sold separately)
- Max. consumption: 95W
- PoE
- PoE budget: 180W
- Pin 3,6 for power+ and pin 1,2 for power-
- Pin 4,5 for power+ and pin 7,8 for power-
- Terminal Block
- Redundant power inputs, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- MTBF
- 716,685 hours
- Housing
- IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- Contact 6KV/Air 8 KV ESD protection
- 2 KV surge protection
- Operating Temperature
- - 40° — 75° C (-40° — 167° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (L x W x H)
- 103 x 81 x 30mm (4 x 3.2 x 1.2 in.)
- Weight
- 170g (6 oz.)
- Certifications
- CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- Warranty
- 3 year
- Package Contents
- TI-IG290
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
Technical Specifications
TRENDnet TI-IG290 95W 2-Port Industrial 2.5G PoE++ Injector Overview
TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30-rated metal enclosure, designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for harsh industrial environments.
- 2 x 2.5G PoE++ ports (Data + PoE out)
- 2 x 2.5G ports (Data in)
- 180W PoE power budget
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
- Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
- Network a PoE device located up to 100m (328 ft.) away
- Fanless design eliminates operating noise and lowers energy consumption
- Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
- Redundant power inputs with overload current protection
- Includes DIN-Rail mount and wall mount
- Power supply sold separately (model TI-S24048)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet TI-IG290 95W 2-Port Industrial Injector Features
- 2-Port PoE
- This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.
- 2.5G Ports
- Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).
- Industrial Design
- IP30-rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 70° C (-40° – 158° F).
- 2-Port PoE++
- The 2-port industrial 802.3 bt PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices
- Industrial Features
- Equipped with an IP30-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments
- 2.5G Ports
- 2 x 2.5G ports (data in) and 2 x 2.5G PoE++ ports (data + PoE out)
- PoE Distance
- Provides two PoE network connections up to 100m (328 ft.) away from the 2-port industrial 802.3bt PoE++ adapter
- LED Indicators
- LEDs indicate PoE connectivity and power status
- Shock and Vibration Resistant
- Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- Grounding Point
- The grounding point protects equipment from external electrical surges
- Fanless Design
- Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption
TRENDnet TI-IG290 95W 2-Port Industrial Injector Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Device Interface
- 2 x 2.5GBASE-T ports
- 2 x 2.5GBASE-T PoE++ ports
- 4-pin removable terminal block
- LED indicators
- Wall mount
- Grounding point
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- 2.5 Gigabit: 5000Mbps (full duplex)
- Special Features
- 90W 4-Pair PoE ports
- 2.5Gbps speed
- Hardened components rated for extreme temperatures
- Dual redundant power inputs
- Auto-Negotiation
- Power
- Input: 52 – 56 V DC
- Compatible power supply: TI-S24048 (sold separately)
- Max. consumption: 95W
- PoE
- PoE budget: 180W
- Pin 3,6 for power+ and pin 1,2 for power-
- Pin 4,5 for power+ and pin 7,8 for power-
- Terminal Block
- Redundant power inputs, 4 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- MTBF
- 716,685 hours
- Housing
- IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- Contact 6KV/Air 8 KV ESD protection
- 2 KV surge protection
- Operating Temperature
- - 40° — 75° C (-40° — 167° F)
- Operating Humidity
- Max. 95% non-condensing
- Dimensions (L x W x H)
- 103 x 81 x 30mm (4 x 3.2 x 1.2 in.)
- Weight
- 170g (6 oz.)
- Certifications
- CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- Warranty
- 3 year
- Package Contents
- TI-IG290
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
