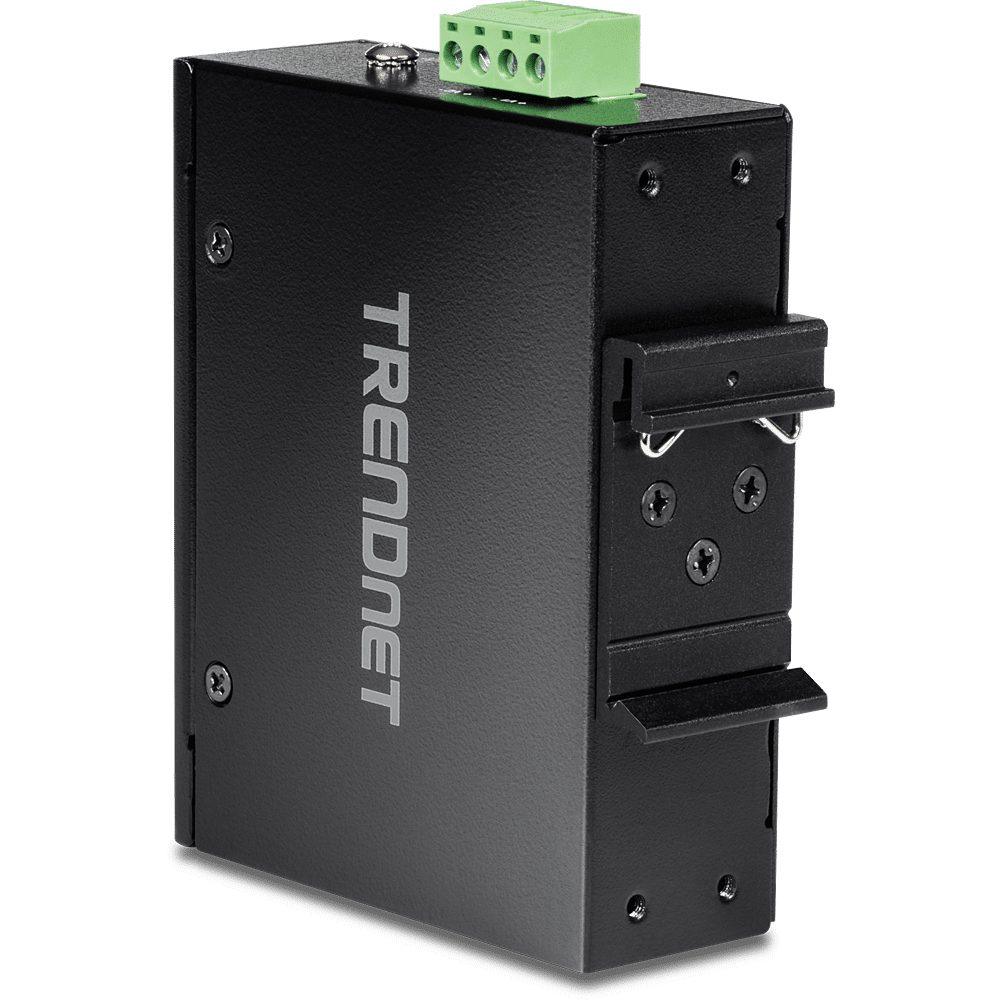

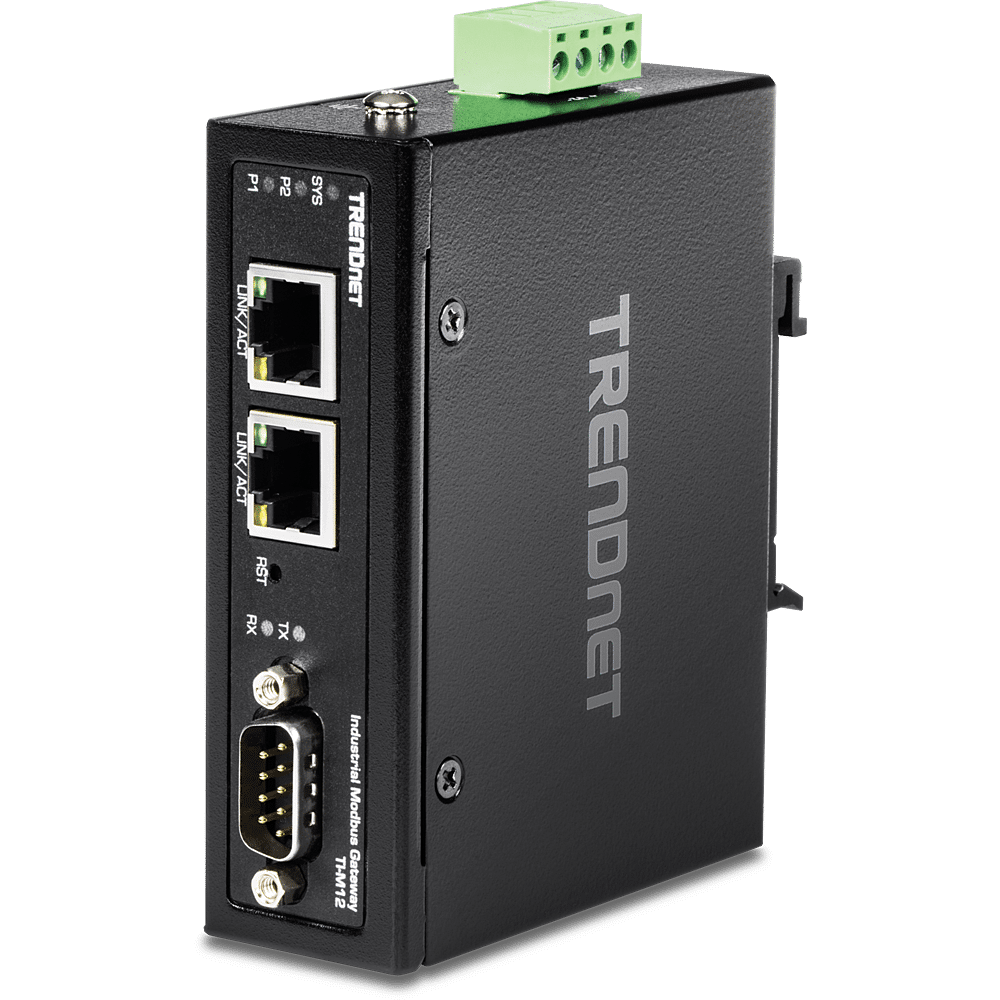

TRENDnet TI-M12 Industrial Modbus Gateway Overview
TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial Modbus gateway allows users to connect a Modbus serial device to a network.
- 1 x serial port, 2 x Fast Ethernet ports
- Connect an RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports DHCP, automatically obtains an IP address and queries IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° – 167° F)
- IP30-rated metal housing
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TI-M12 Industrial Modbus Gateway Features
- Network
- Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
- Serial Connector
- Easily connect RS-232/RS-422/RS-485 serial devices to the network.
- Industrial Design
- Designed with a rugged IP30-rated housing, vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range (-40° - 75° C (-40° – 167° F)).
- Network
- This Modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
- Serial Connector
- The Modbus RTU to TCP gateway easily allows users to connect RS-232/RS-422/RS-485 serial devices to the network
- Industrial Design
- This Modbus gateway is designed with a rugged IP30-rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surges, and a wide operating temperature range (-40° - 75° C (-40° – 167° F))
TRENDnet TI-M12 Industrial Modbus Gateway Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- RFC 768 UDP
- RFC 793 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 854 Telnet
- RFC 958 NTP
- RFC 1591 DNS (client only)
- RFC 1908 SNMP v2c
- RFC 2068 HTTP
- RFC 2131 DHCP Client
- EIA / TIA RS-232 / RS-422 / RS-485
- Device Interface
- 1 x Serial (DB-9) port
- 2 x 10/100Mbps ports
- 4-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- 50bps – 921600bps
- Performance
- Data RAM Buffer: 8 Bit
- MAC Address Table: 2K entries
- Parity Type: Even, Odd, None, Space, Mark
- Stop Bit: 1 or 1.5/2
- Special Features
- Supports RS-232, RS-422 and 2-wire RS-485
- Web / Telnet / Windows ®-based management
- Supports RTU Master / Slave and ASCII Master / Slave
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Pinout
- RS-232
- Pin 1: DCD
- Pin 2: RxD
- Pin 3: TxD
- Pin 4: DTR
- Pin 5: GND
- Pin 6: DSR
- Pin 7: RTS
- Pin 8: CTS
- RS-422
- Pin 1: TxD+ (A)
- Pin 2: TxD- (B)
- Pin 3: RxD- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-485
- Pin 3: RxD- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-232
- DC Power
- Input: 12 – 56 V DC
- Compatible power supply: TI-M6024 (sold separately)
- Max. consumption: 3.84W @ 48V DC
- Terminal Block
- Redundant power inputs, 4-pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- MTBF
- 521,243 hours
- Housing
- IP30 metal case
- DIN-Rail mount
- Grounding point
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95 % non-condensing
- Dimensions
- 103 x 80 x 31mm (4 x 3.14 x 1.22 in.)
- Weight
- 154g (5.4 oz.)
- Certifications
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- Warranty
- Lifetime Warranty*
- Package Contents
- TI-M12
- Quick Installation Guide
- Removable terminal block
- DIN-Rail and wall mount kit
Technical Specifications
TRENDnet TI-M12 Industrial Modbus Gateway Overview
TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial Modbus gateway allows users to connect a Modbus serial device to a network.
- 1 x serial port, 2 x Fast Ethernet ports
- Connect an RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports DHCP, automatically obtains an IP address and queries IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° – 167° F)
- IP30-rated metal housing
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TI-M12 Industrial Modbus Gateway Features
- Network
- Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
- Serial Connector
- Easily connect RS-232/RS-422/RS-485 serial devices to the network.
- Industrial Design
- Designed with a rugged IP30-rated housing, vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range (-40° - 75° C (-40° – 167° F)).
- Network
- This Modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
- Serial Connector
- The Modbus RTU to TCP gateway easily allows users to connect RS-232/RS-422/RS-485 serial devices to the network
- Industrial Design
- This Modbus gateway is designed with a rugged IP30-rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surges, and a wide operating temperature range (-40° - 75° C (-40° – 167° F))
TRENDnet TI-M12 Industrial Modbus Gateway Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- RFC 768 UDP
- RFC 793 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 854 Telnet
- RFC 958 NTP
- RFC 1591 DNS (client only)
- RFC 1908 SNMP v2c
- RFC 2068 HTTP
- RFC 2131 DHCP Client
- EIA / TIA RS-232 / RS-422 / RS-485
- Device Interface
- 1 x Serial (DB-9) port
- 2 x 10/100Mbps ports
- 4-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- 50bps – 921600bps
- Performance
- Data RAM Buffer: 8 Bit
- MAC Address Table: 2K entries
- Parity Type: Even, Odd, None, Space, Mark
- Stop Bit: 1 or 1.5/2
- Special Features
- Supports RS-232, RS-422 and 2-wire RS-485
- Web / Telnet / Windows ®-based management
- Supports RTU Master / Slave and ASCII Master / Slave
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Pinout
- RS-232
- Pin 1: DCD
- Pin 2: RxD
- Pin 3: TxD
- Pin 4: DTR
- Pin 5: GND
- Pin 6: DSR
- Pin 7: RTS
- Pin 8: CTS
- RS-422
- Pin 1: TxD+ (A)
- Pin 2: TxD- (B)
- Pin 3: RxD- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-485
- Pin 3: RxD- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-232
- DC Power
- Input: 12 – 56 V DC
- Compatible power supply: TI-M6024 (sold separately)
- Max. consumption: 3.84W @ 48V DC
- Terminal Block
- Redundant power inputs, 4-pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- MTBF
- 521,243 hours
- Housing
- IP30 metal case
- DIN-Rail mount
- Grounding point
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95 % non-condensing
- Dimensions
- 103 x 80 x 31mm (4 x 3.14 x 1.22 in.)
- Weight
- 154g (5.4 oz.)
- Certifications
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- Warranty
- Lifetime Warranty*
- Package Contents
- TI-M12
- Quick Installation Guide
- Removable terminal block
- DIN-Rail and wall mount kit
