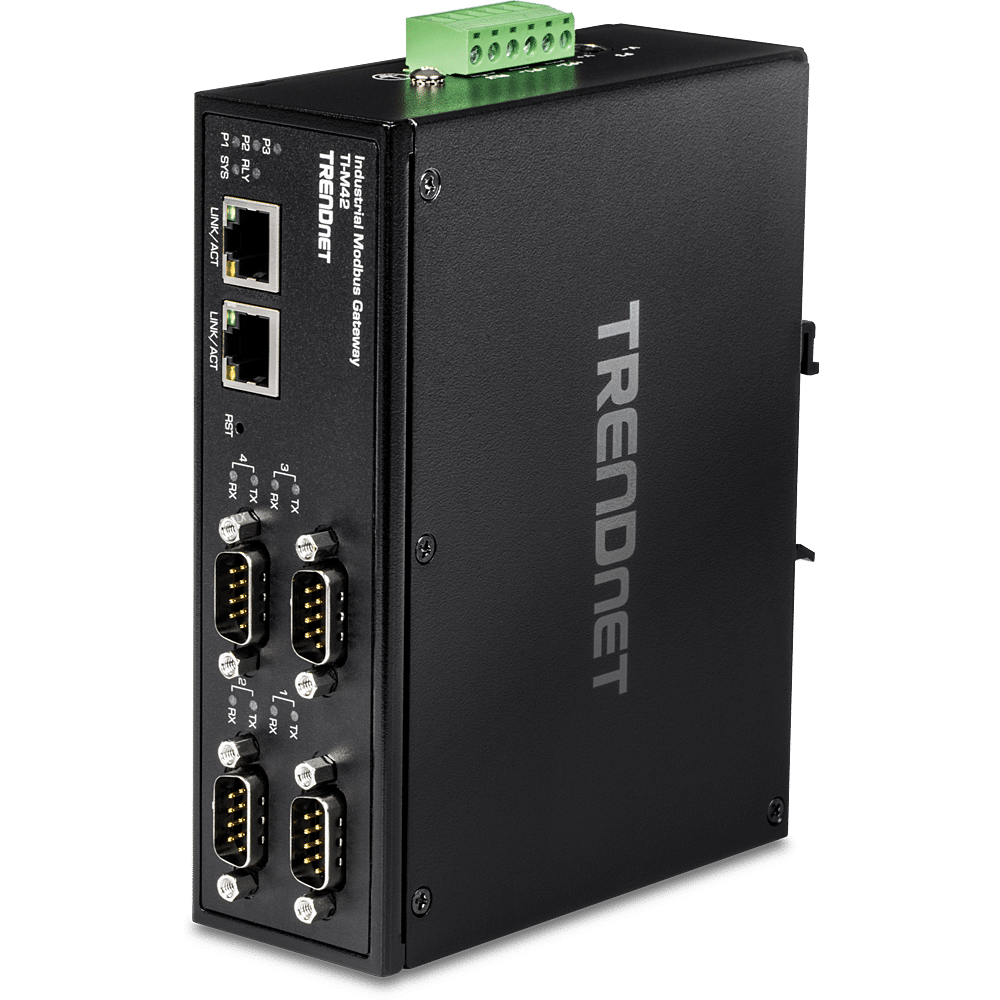

TRENDnet TI-M42 4-Port Industrial Modbus Gateway Overview
TRENDnet’s Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial gateway allows users to connect four Modbus serial devices to a network.
- Connect up to four RS-232/RS-422/RS-485 serial devices to a network
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TI-M42 4-Port Industrial Modbus Gateway Features
- Industrial Design
- Designed with a rugged IP30-rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operating temperature range -40° - 75° C (-40° – 167° F).
- Network
- Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling
- Serial Connector
- Connect up to four RS-232/RS-422/RS-485 serial devices to the network
- Industrial Design
- Designed with a rugged IP30-rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and a wide operating temperature range -40° - 75° C (-40° – 167° F)
TRENDnet TI-M42 4-Port Industrial Modbus Gateway Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- RFC 768 UDP
- RFC 793 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 854 Telnet
- RFC 958 NTP
- RFC 1591 DNS (client only)
- RFC 1908 SNMP v2c
- RFC 2068 HTTP
- RFC 2131 DHCP Client
- EIA / TIA RS-232 / RS-422 / RS-485
- Device Interface
- 4 x Serial (DB-9) ports
- 2 x 10/100Mbps ports
- 6-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Data Transfer Rate
- 50bps – 921600bps
- Performance
- Data RAM Buffer: 8 Bit
- MAC Address Table: 2K entries
- Parity Type: Even, Odd, None, Space, Mark
- Stop Bit: 1 or 1.5/2
- Special Features
- Supports RS-232, RS-422 and 2-wire RS-485
- Web / Telnet / Windows ®-based management
- Supports RTU Master / Slave and ASCII Master / Slave
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Pinout
- RS-232
- Pin 1: DCD
- Pin 2: RxD
- Pin 3: TxD
- Pin 4: DTR
- Pin 5: GND
- Pin 6: DSR
- Pin 7: RTS
- Pin 8: CTS
- RS-422
- Pin 1: TxD+ (A)
- Pin 2: TxD- (B)
- Pin 3: RxD- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-485
- Pin 3: Data- (B)
- Pin 4: RxD+ (A)
- Pin 5: GND
- RS-232
- DC Power
- Input: 12 – 56 V DC
- Compatible power supply: TI-M6024 (sold separately)
- Max. consumption: 3.84W @ 48V DC
- Terminal Block
- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- MTBF
- 535,534 hours
- Housing
- IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- Operating Temperature
- - 40° – 75° C (-40° – 167° F)
- Operating Humidity
- Max. 95 % non-condensing
- Dimensions
- 103.5 x 81.5 x 32mm (4.1 x 3.2 x 1.25 in.)
- Weight
- 512g (1.13 lb.)
- Certifications
- CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- Warranty
- Lifetime Warranty*
- Package Contents
- TI-M42
- Quick Installation Guide

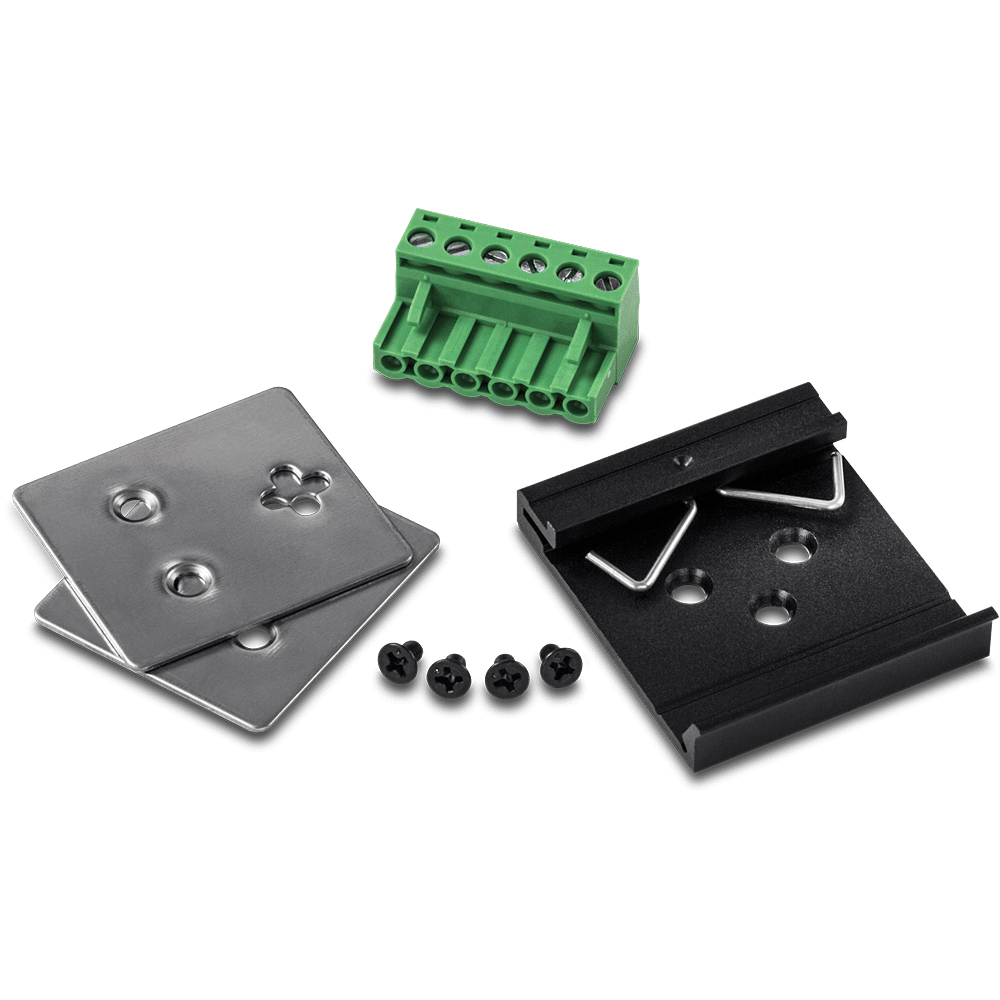

- Removable terminal block
- DIN-Rail and wall mount kit
