About the product

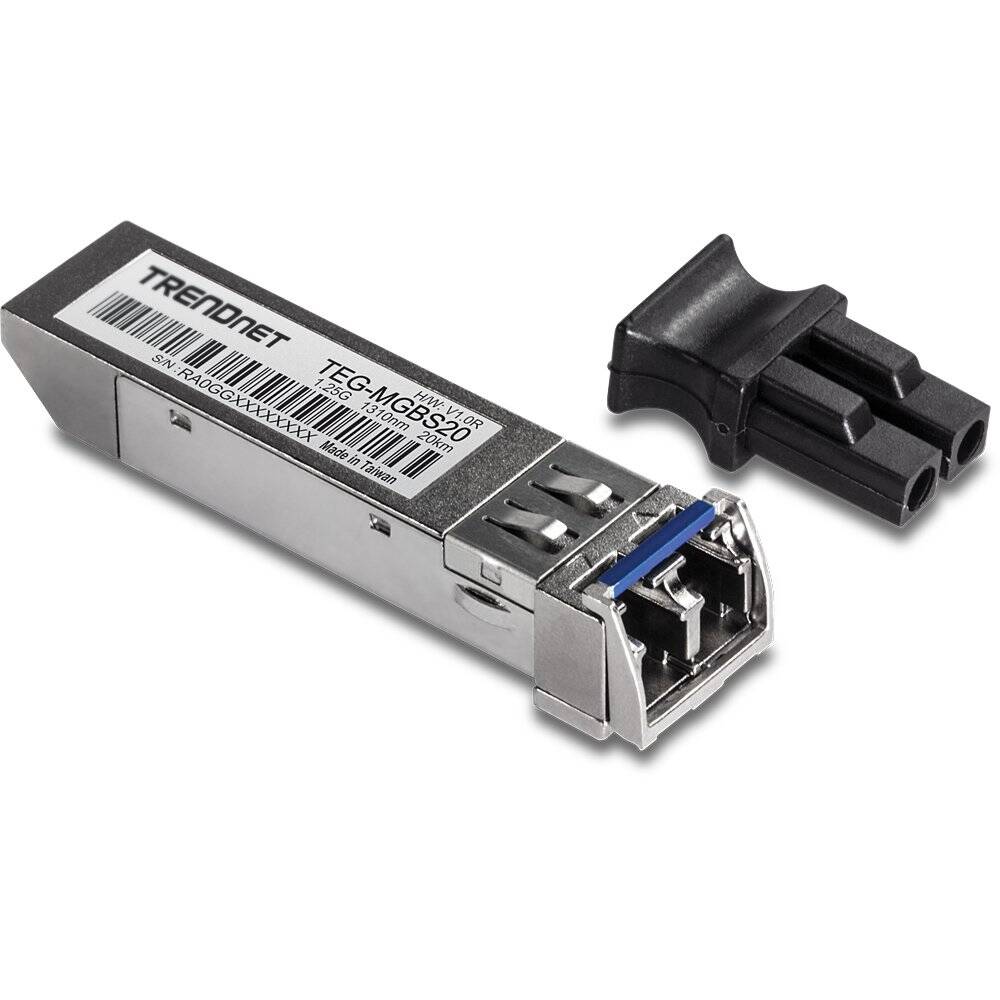

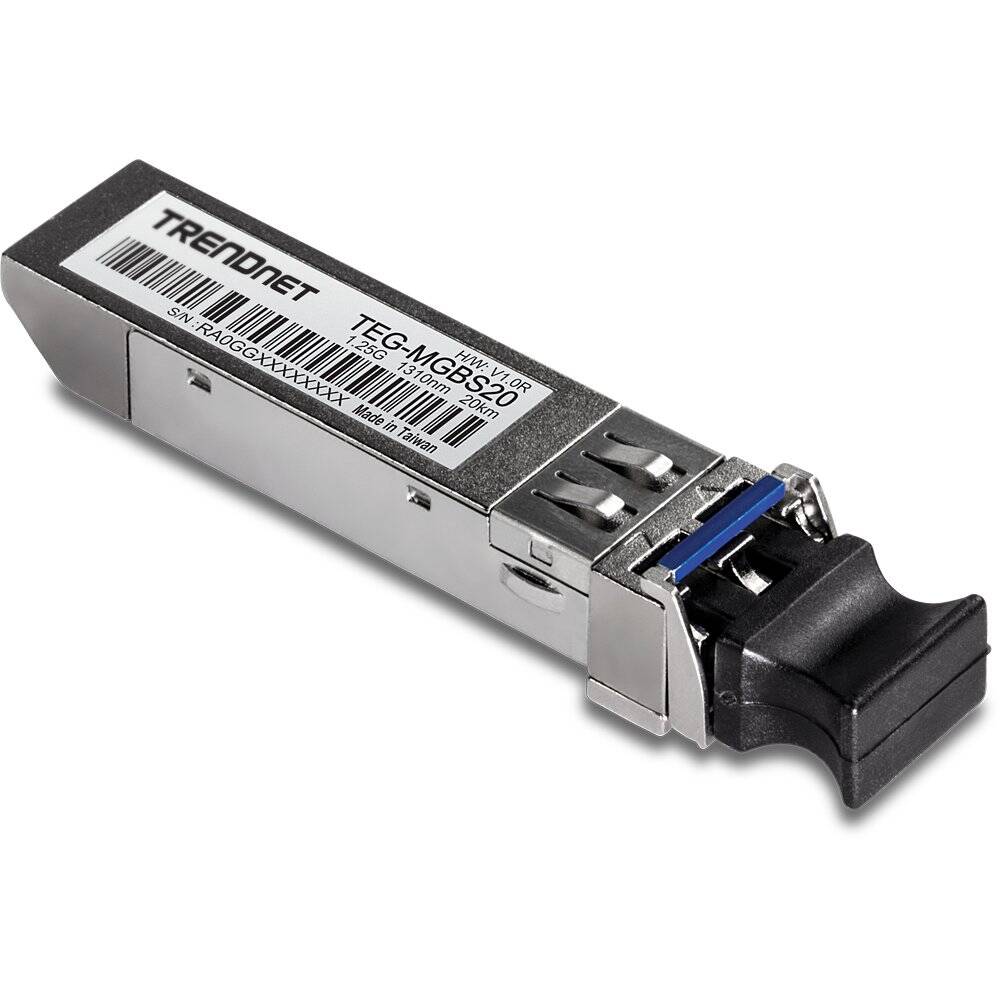

The TRENDnet SFP Single Mode LC Module is an ANSI Fiber Channel and IEEE 802.3z Gigabit Ethernet compliant hot-pluggable SFP module compatible with Duplex LC fiber connector types. Supporting data transit rates of up to 1.25 Gbps for transmission distances up to 20 km (12.4 mi.). Hot-pluggable with any MSA compliant SFP slot, this module allows for easy fiber connection using LC-type duplex connectors.
Low EMI design for minimal interference over long wired connections, support for 1310nm singlemode network transmissions, and low power consumption (max 0.8W) is ideal for extremely high-footprint fiber networking like large-scale manufacturing, business parks and school campuses.
TI-MGBS20 Features and Specs:
- Duplex LC optical interface
- SFP MSA Compliant
- Wavelength: 1310nm
- Hot-Pluggable SFP transceiver compatible with an MSA compliant SFP slot
- High-range operating temperatures from -40°– 85 °C (-40° – 185 °F)
- Supports networking for distances up to 550 m (1804 ft.)
- Data Transfer Rate: 1.25 Gbps
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Operating temperature: 0° – 70° C (32° – 158 °F)
- Dimensions: 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
- Weight: 18g (0.6 oz.)
- Package Includes:
- 1x TI-MGBS20
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet SFP Single Mode LC Module is an ANSI Fiber Channel and IEEE 802.3z Gigabit Ethernet compliant hot-pluggable SFP module compatible with Duplex LC fiber connector types. Supporting data transit rates of up to 1.25 Gbps for transmission distances up to 20 km (12.4 mi.). Hot-pluggable with any MSA compliant SFP slot, this module allows for easy fiber connection using LC-type duplex connectors.
Low EMI design for minimal interference over long wired connections, support for 1310nm singlemode network transmissions, and low power consumption (max 0.8W) is ideal for extremely high-footprint fiber networking like large-scale manufacturing, business parks and school campuses.
TI-MGBS20 Features and Specs:
- Duplex LC optical interface
- SFP MSA Compliant
- Wavelength: 1310nm
- Hot-Pluggable SFP transceiver compatible with an MSA compliant SFP slot
- High-range operating temperatures from -40°– 85 °C (-40° – 185 °F)
- Supports networking for distances up to 550 m (1804 ft.)
- Data Transfer Rate: 1.25 Gbps
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Operating temperature: 0° – 70° C (32° – 158 °F)
- Dimensions: 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
- Weight: 18g (0.6 oz.)
- Package Includes:
- 1x TI-MGBS20
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
