About the product
TRENDnet's 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to sixteen Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial PoE switch features dual redundant power inputs with output alarm relay.
Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).
- 16 x Gigabit PoE+ ports
- 240W PoE power budget
- 32Gbps switching capacity
- Hardened IP30 rated metal switch

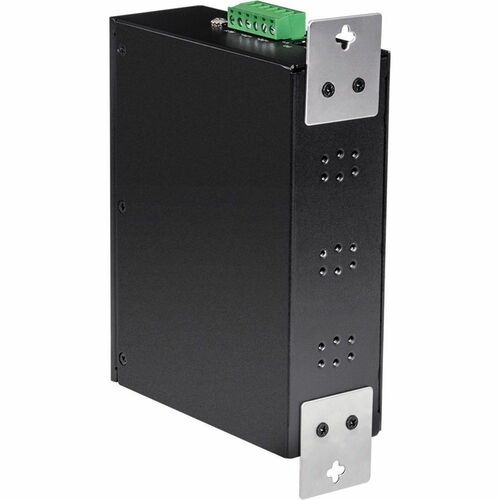

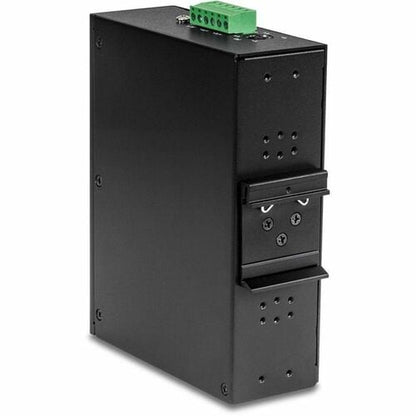

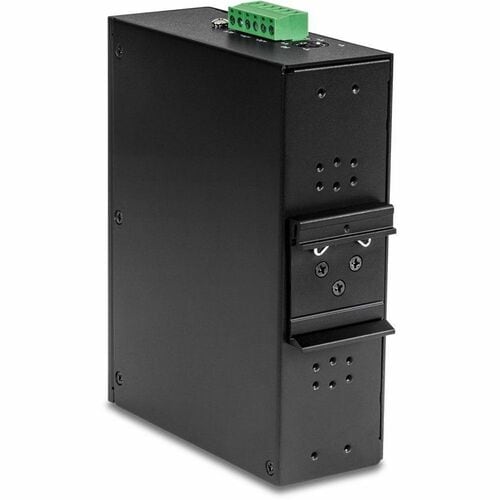

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75° C (-40° - 167° F)

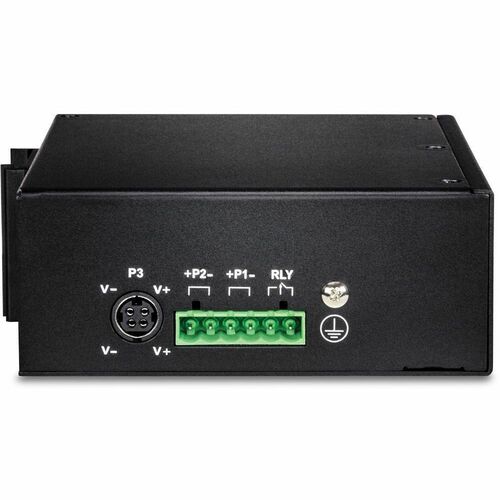

- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24048, TI-S48048)
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Interfaces/Ports | |
| Modular | No |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Application/Usage | Industrial |
| Package Contents |
|
| TAA Compliant | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TIPG160I |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TI-PG160 |
| Product Name | 16-Port Industrial Gigabit PoE+ DIN-Rail Switch |
| Brand Name | TRENDnet |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3u | |
| IEEE 802.3af | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.3at | |
| Physical Characteristics | |
| Weight (Approximate) | 1.10 lb (500 g) |
| Form Factor | DIN Rail Mountable |
| Wall Mountable | |
| Length | 6.10" (155 mm) |
| Height | 1.89" (48 mm) |
| Width | 4.72" (120 mm) |
| Product Material | Metal |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 5.76 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 240 W |
