About the product
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 75 C (-40 167 F) for industrial environments.
TRENDnet TI-PG80F Features
TRENDNET TI-PG80F Specifications
Standards- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at

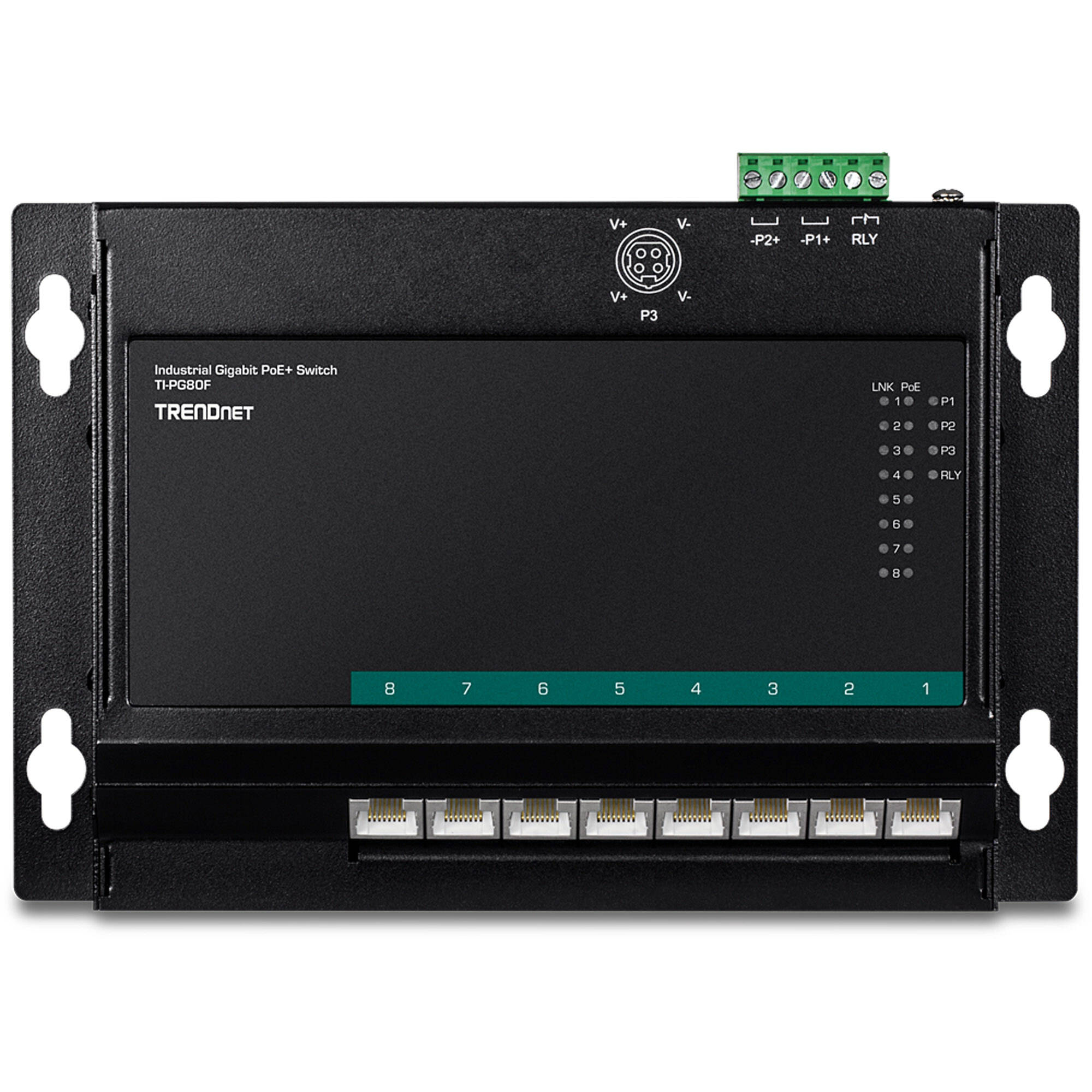

- 8 x Gigabit PoE+ ports
- 6-pin removable terminal block
- LED indicators

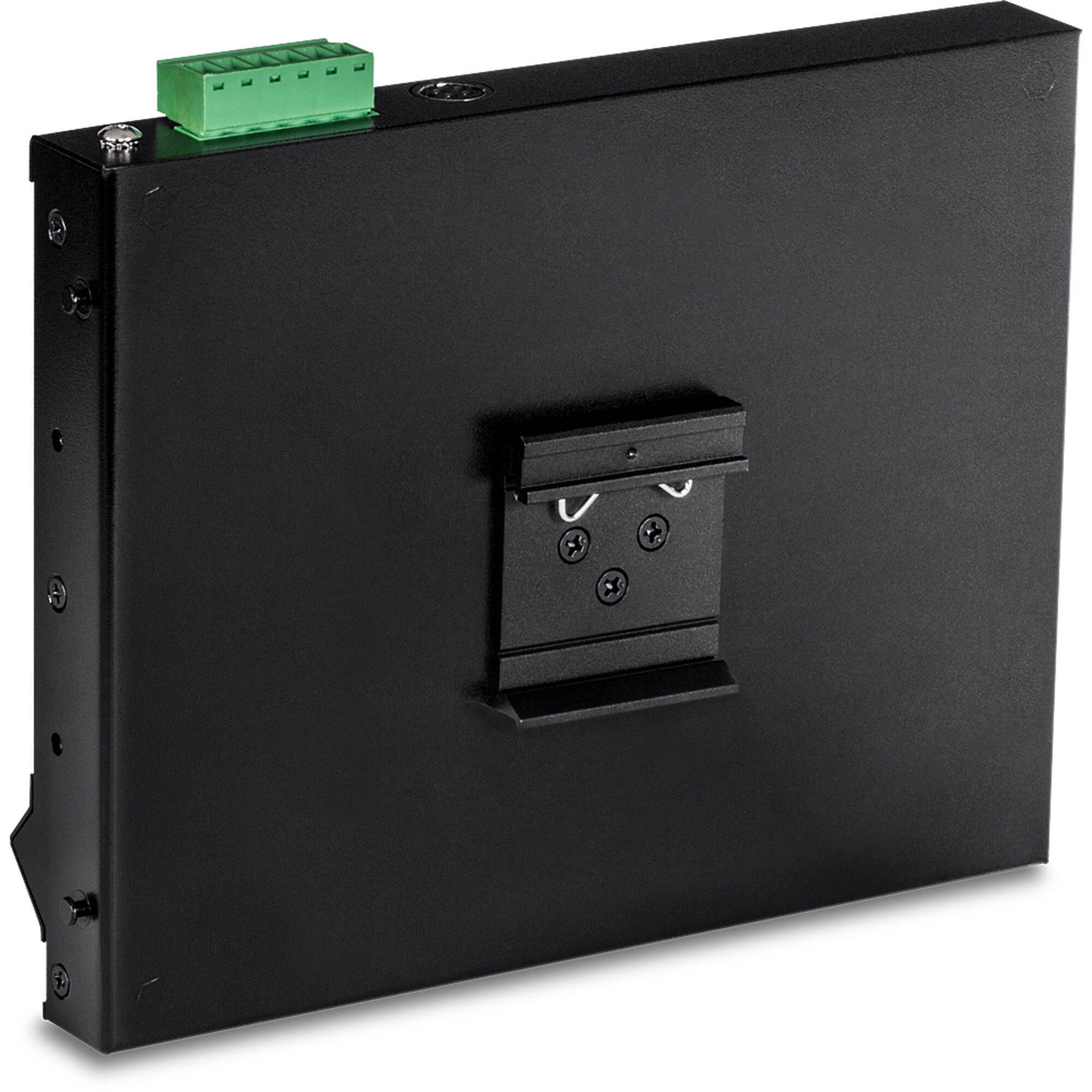

- DIN-Rail mount
- Wall mount
- Grounding point
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Data RAM Buffer: 1024KB
- Switching Fabric: 16Gbps
- MAC Address Table: 4K entries
- Jumbo Frame: 9KB
- Forwarding rate: 11.9Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV support
- Input: 48 - 56 V DC
- Compatible power supply: TI-S24048 (sold separately)
- Max. consumption: 5.76W (no PoE)
- Input: 100 - 240 V AC, 50/60 Hz, 2 A
- Output: 48V DC, 3.34A 160W max.
- PoE budget: 200W
- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Relay outputs with current carrying capacity of 1A, 24V DC
- Open circuit mode when two power sources are connected
- Short circuit mode when only one power source is connected
- 500,000 hours
- IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- - 40 - 75 C (-40 - 167 F)
- Max. 95 % non-condensing
- 150 x 145 x 26.7mm (5.9 x 5.7 x 1.1 in.)
- 635g (22.5 oz.)
- CE
- FCC
- UL
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
What's Included
Technical Specifications
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 75 C (-40 167 F) for industrial environments.
TRENDnet TI-PG80F Features
TRENDNET TI-PG80F Specifications
Standards- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- 8 x Gigabit PoE+ ports
- 6-pin removable terminal block
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Data RAM Buffer: 1024KB
- Switching Fabric: 16Gbps
- MAC Address Table: 4K entries
- Jumbo Frame: 9KB
- Forwarding rate: 11.9Mpps (64-byte packet size)
- Hardened components rated for extreme temperatures
- Redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV support
- Input: 48 - 56 V DC
- Compatible power supply: TI-S24048 (sold separately)
- Max. consumption: 5.76W (no PoE)
- Input: 100 - 240 V AC, 50/60 Hz, 2 A
- Output: 48V DC, 3.34A 160W max.
- PoE budget: 200W
- Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. In / 0.5Nm / 0.56 Nm
- Wire strip length: 7-8mm
- Relay outputs with current carrying capacity of 1A, 24V DC
- Open circuit mode when two power sources are connected
- Short circuit mode when only one power source is connected
- 500,000 hours
- IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- - 40 - 75 C (-40 - 167 F)
- Max. 95 % non-condensing
- 150 x 145 x 26.7mm (5.9 x 5.7 x 1.1 in.)
- 635g (22.5 oz.)
- CE
- FCC
- UL
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
What's Included
