About the product

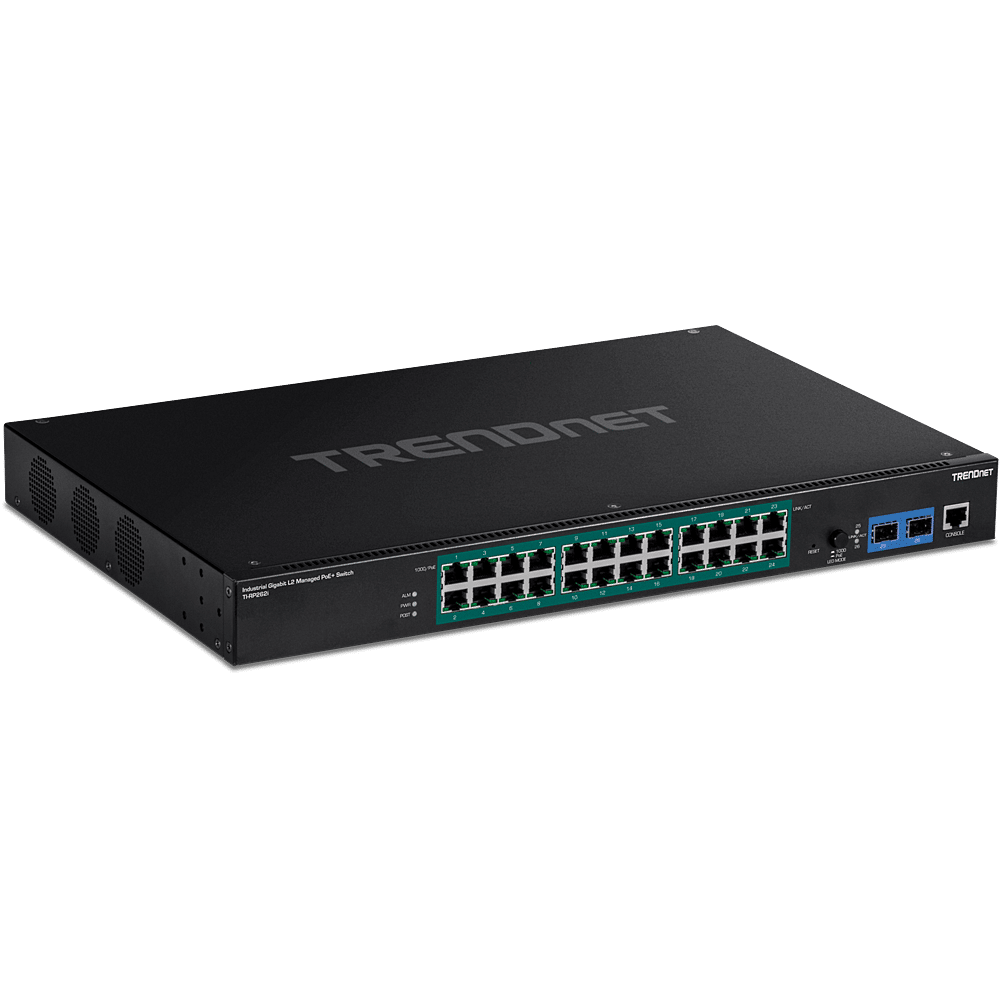

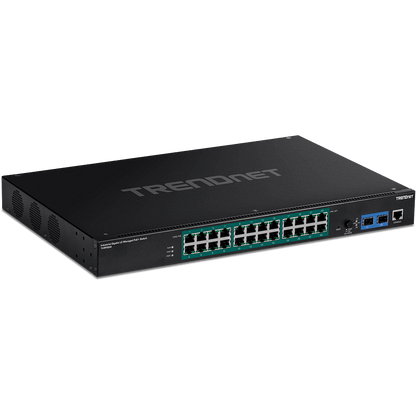

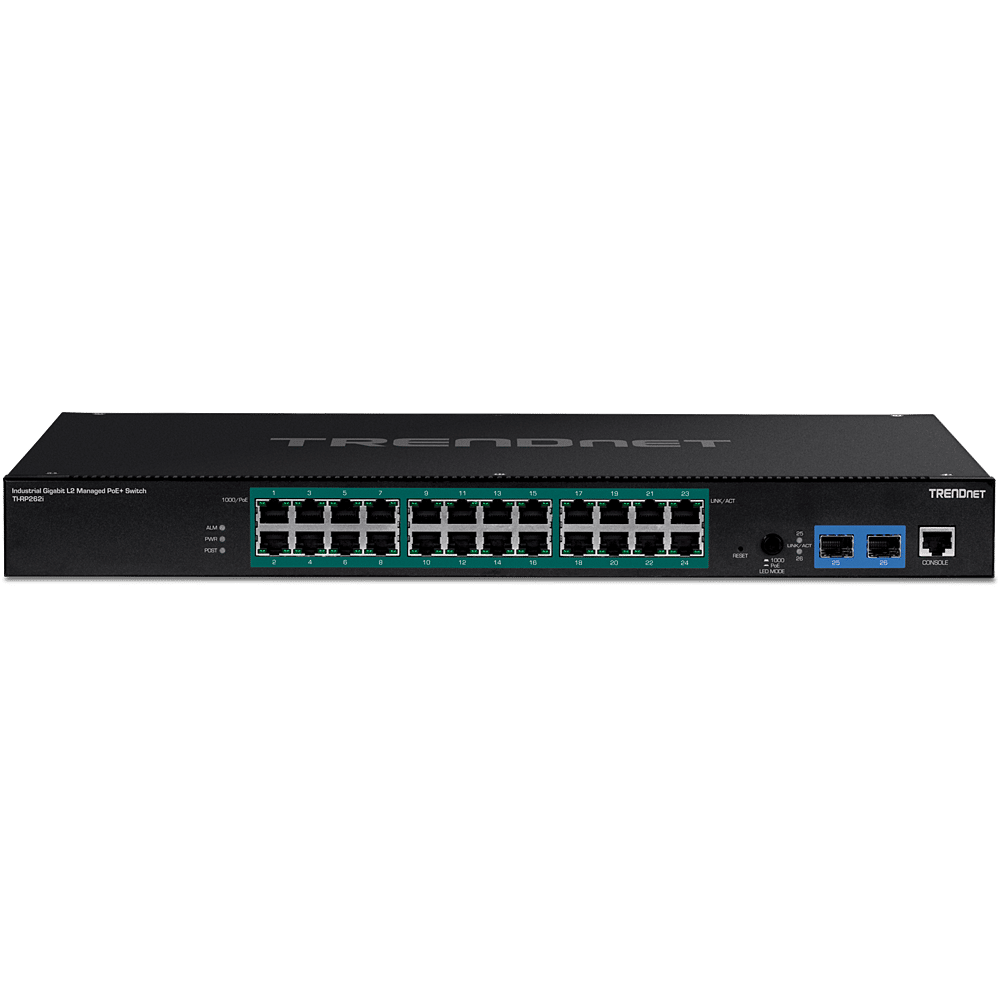

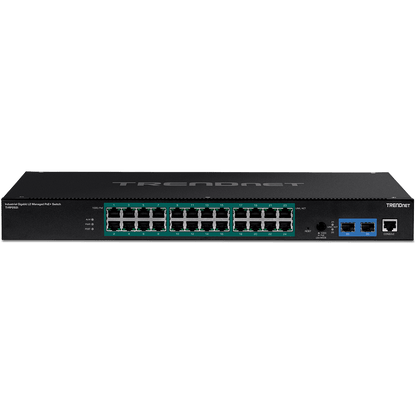

The TRENDnet 26-Port Industrial Gigabit L2 Managed Rackmount Switch is an industrial-grade 1U 19’’ rackmounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range with layer 2 management features. The TI-RP262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
Gigabit data transfer speeds and layer 2 managed features with enhanced traffic controls support the needs of demanding modern SMB networks. L2 Managed IPv4/IPv6 static routing allows for router optimization and frees up resources by offloading routing processes for equipment that does not need dynamic addressing—perfect for larger, industrial security systems with many cameras.
Supports LACP, STP/RSTP, VLAN, and IGMP Snooping and easy management through CLI (Console / Telnet / SSH), Web (HTTP), SNMP v1 / 2c / 3 management. Per-port bandwidth control allows for flexible and granular manual network shaping based on use-requirements.
Please note: Power supply (TI-S15052) sold separately.
TI-RP262i Specs and Features:
- Industrial-grade IP30 enclosure
- 1U 19’’ rack mounted installation
- ESD (Ethernet) Protection: 8KV DC (Air) 4KV (Contact)
- Surge (Power) Protection: 1KV DC Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Netlite device discovery and map display in GUI
- Supports Ethernet Ring Protection Switching (ERPS)
- MAC address learning restriction per port
- DHCP relay/option 82 & DHCP server snooping/screening support
- Surge and ESD protection
- Device Interface:
- 24 x Gigabit ports
- 2 x Gigabit fiber SFP ports
- 1x Console port (RJ-45)
- Fixed 2-pin power terminal
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
- MIB:
- MIB II RFC 1213
- Bridge MIB RFC 1493
- RMON (Group 1,2,3,9) RFC 2819 RFC 1757
- VLAN
- 802.1Q tagged VLAN
- MAC-based VLAN
- Port isolation
- Up to 256 VLAN groups, ID range 1-4094
- Multicast
- IGMP snooping v1, v2, v3
- IGMP querier
- IGMP fast/immediate leave
- Up to 256 multicast groups
- Static multicast entries
- Terminal Block:
- Power input, 2-pin
- Wire range: 1.5 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-18
- Stranded wire (AWG): 12-18
- Wire strip length: 10-11mm
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 440 x 284 x 44mm (17.32 x 11.18 x 1.7 in.)
- Weight: 3.46kg (7.62 lbs.)
- NDAA / TAA compliant
- Certifications: CE, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- TI-RP262i
- Quick Installation Guide
- Console cable (RJ-45 to RS-232)
- Rackmount Kit
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 26-Port Industrial Gigabit L2 Managed Rackmount Switch is an industrial-grade 1U 19’’ rackmounted network switch with a hardened IP30 rated enclosure and an extreme -40° – 75° C (-40° – 167° F) operating temperature range with layer 2 management features. The TI-RP262 is designed for challenging environments, including high vibration or shock, or extremely cold or hot conditions where extended network monitoring and device operation is required; perfect for parking garages, industrial warehousing, remote server rooms, external management facilities, and more.
Gigabit data transfer speeds and layer 2 managed features with enhanced traffic controls support the needs of demanding modern SMB networks. L2 Managed IPv4/IPv6 static routing allows for router optimization and frees up resources by offloading routing processes for equipment that does not need dynamic addressing—perfect for larger, industrial security systems with many cameras.
Supports LACP, STP/RSTP, VLAN, and IGMP Snooping and easy management through CLI (Console / Telnet / SSH), Web (HTTP), SNMP v1 / 2c / 3 management. Per-port bandwidth control allows for flexible and granular manual network shaping based on use-requirements.
Please note: Power supply (TI-S15052) sold separately.
TI-RP262i Specs and Features:
- Industrial-grade IP30 enclosure
- 1U 19’’ rack mounted installation
- ESD (Ethernet) Protection: 8KV DC (Air) 4KV (Contact)
- Surge (Power) Protection: 1KV DC Dual power inputs
- Auto negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- Netlite device discovery and map display in GUI
- Supports Ethernet Ring Protection Switching (ERPS)
- MAC address learning restriction per port
- DHCP relay/option 82 & DHCP server snooping/screening support
- Surge and ESD protection
- Device Interface:
- 24 x Gigabit ports
- 2 x Gigabit fiber SFP ports
- 1x Console port (RJ-45)
- Fixed 2-pin power terminal
- LED indicators
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
- MIB:
- MIB II RFC 1213
- Bridge MIB RFC 1493
- RMON (Group 1,2,3,9) RFC 2819 RFC 1757
- VLAN
- 802.1Q tagged VLAN
- MAC-based VLAN
- Port isolation
- Up to 256 VLAN groups, ID range 1-4094
- Multicast
- IGMP snooping v1, v2, v3
- IGMP querier
- IGMP fast/immediate leave
- Up to 256 multicast groups
- Static multicast entries
- Terminal Block:
- Power input, 2-pin
- Wire range: 1.5 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-18
- Stranded wire (AWG): 12-18
- Wire strip length: 10-11mm
- Operating Temperature: - 40° – 75° C (-40° – 167° F)
- Dimensions: 440 x 284 x 44mm (17.32 x 11.18 x 1.7 in.)
- Weight: 3.46kg (7.62 lbs.)
- NDAA / TAA compliant
- Certifications: CE, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
- Package Contents
- TI-RP262i
- Quick Installation Guide
- Console cable (RJ-45 to RS-232)
- Rackmount Kit
- Lifetime Manufacturer’s Warranty
