About the product

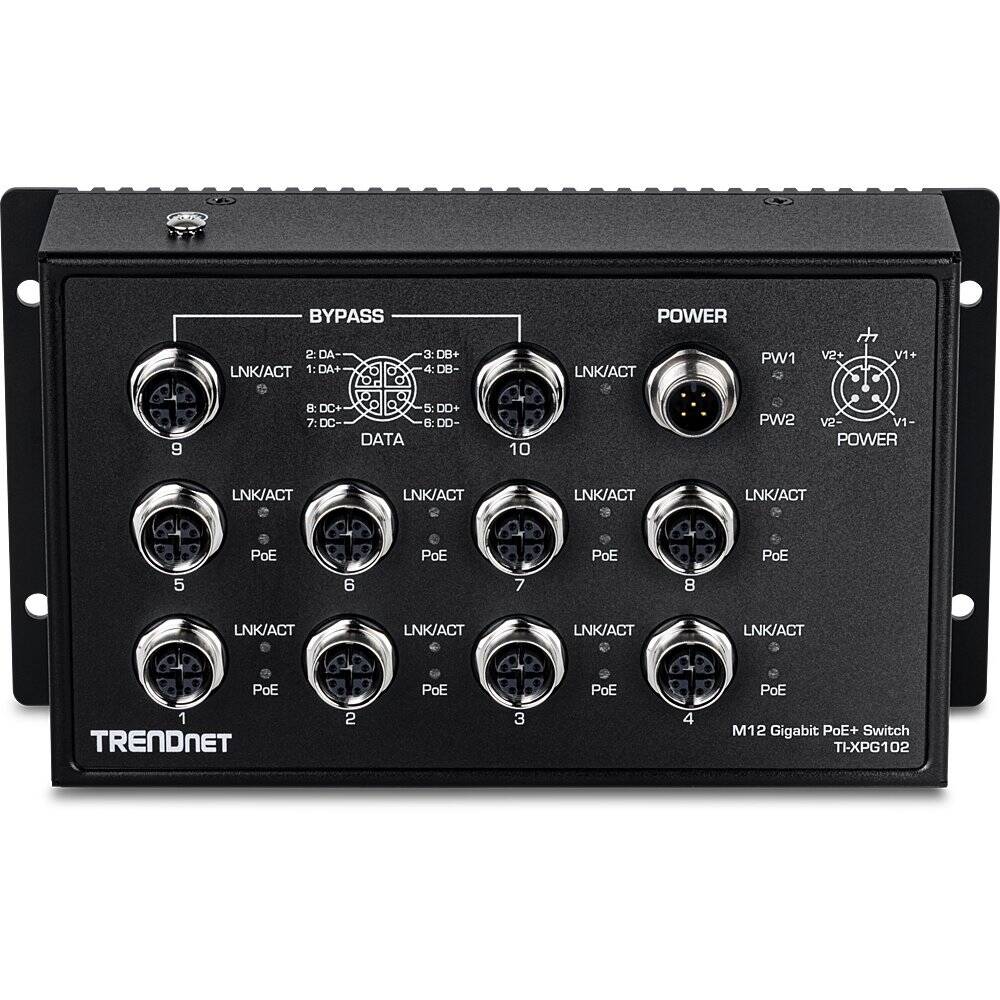

The TRENDnet 10-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch is an M12 (X-code) IP40 extreme-temperature rated gigabit network switch for transportation and telecom applications. Featuring a robust vibration and shock resistance, hardened IP40 rated metal housing, and a -40° – 75° C (-40° – 167° F) operating temperature range, the TI-XPG102 has been tested and approved for use in rolling stock and telecom networking and communication infrastructure.
The TI-XPG102 is EN50155 compliant, ensuring functionality with an input voltage range from 48 – 56 VDC, and can supply a PoE power budget of up to 200W of PoE+ power at 56VDC and 100W of power at 24VDC (30W per port) as well as gigabit data transfer speeds and a 20 Gbps switching capacity. Optional DIN-rail and wall-mounting kit included.
Please note: M12 cables sold separately (TI-CD02, TI-CD05, TI-CP02), Power supply sold separately (TI-S24052)
TI-XPG102 Specs and Features:
- Device Interface
- 8 x M12 (X-code) Gigabit PoE+ ports
- 2 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- LED indicators
- Wall mount
- Din-Rail mount
- Grounding point
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- 6kV ESD protection
- DC Power
- Input: 48 – 56V DC
- Max. consumption: 5W (without PoE)
- Optional power supply: TI-S24052 (with surge protector)
- PoE Budget
- 200W @ 56V DC / 100W @ 24V DC
- Operating Temperature: -40° – 75° C (-40° – 167° F)
- Dimensions: 160 x 97 x 50mm (6.3 x 3.8 x 2 in.)
- Weight: 884g (31.2 oz.)
- Certifications: CE, FCC, IEC EN 60950-1, Shock EN 60068-2-27, Freefall EN 60068-2-32, Vibration EN 60068-2-6, Railroad EN 50155 / EN 50121-3, Railroad EN 50155 / EN 50121-4
- Package Contents
- 1x TI-XPG102
- Quick Installation Guide
- Wall mount and DIN-Rail kit
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 10-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch is an M12 (X-code) IP40 extreme-temperature rated gigabit network switch for transportation and telecom applications. Featuring a robust vibration and shock resistance, hardened IP40 rated metal housing, and a -40° – 75° C (-40° – 167° F) operating temperature range, the TI-XPG102 has been tested and approved for use in rolling stock and telecom networking and communication infrastructure.
The TI-XPG102 is EN50155 compliant, ensuring functionality with an input voltage range from 48 – 56 VDC, and can supply a PoE power budget of up to 200W of PoE+ power at 56VDC and 100W of power at 24VDC (30W per port) as well as gigabit data transfer speeds and a 20 Gbps switching capacity. Optional DIN-rail and wall-mounting kit included.
Please note: M12 cables sold separately (TI-CD02, TI-CD05, TI-CP02), Power supply sold separately (TI-S24052)
TI-XPG102 Specs and Features:
- Device Interface
- 8 x M12 (X-code) Gigabit PoE+ ports
- 2 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- LED indicators
- Wall mount
- Din-Rail mount
- Grounding point
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Hardened components rated for extreme temperatures
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- 6kV ESD protection
- DC Power
- Input: 48 – 56V DC
- Max. consumption: 5W (without PoE)
- Optional power supply: TI-S24052 (with surge protector)
- PoE Budget
- 200W @ 56V DC / 100W @ 24V DC
- Operating Temperature: -40° – 75° C (-40° – 167° F)
- Dimensions: 160 x 97 x 50mm (6.3 x 3.8 x 2 in.)
- Weight: 884g (31.2 oz.)
- Certifications: CE, FCC, IEC EN 60950-1, Shock EN 60068-2-27, Freefall EN 60068-2-32, Vibration EN 60068-2-6, Railroad EN 50155 / EN 50121-3, Railroad EN 50155 / EN 50121-4
- Package Contents
- 1x TI-XPG102
- Quick Installation Guide
- Wall mount and DIN-Rail kit
- Lifetime Manufacturer’s Warranty
