About the product

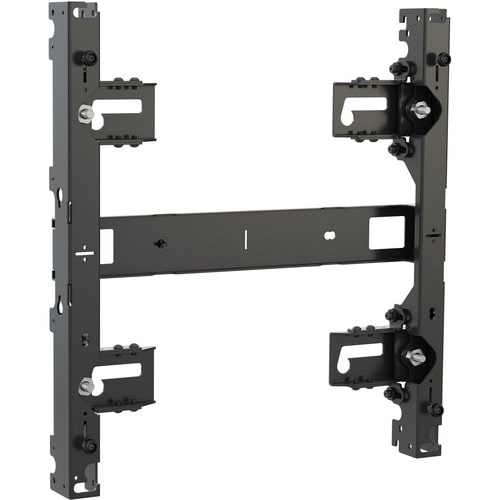

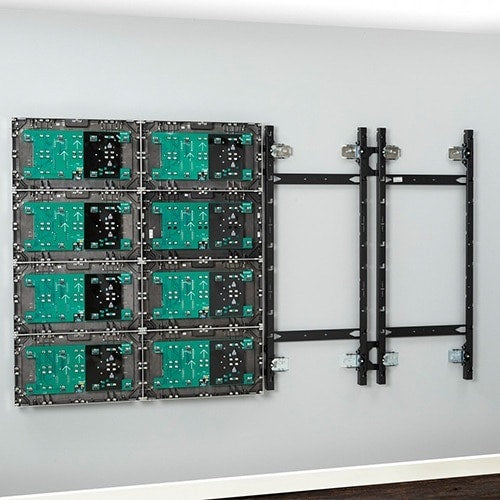

The TiLED™ LED Video Wall Mounting System is designed to mount 1 vertically stacked LED display from the Samsung® IFH Series. Simply stack LED displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support endless design configurations

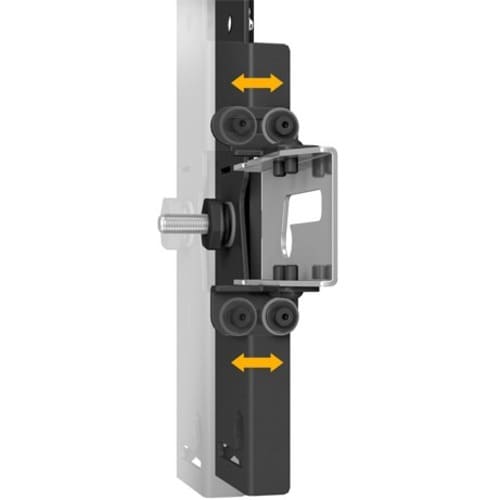

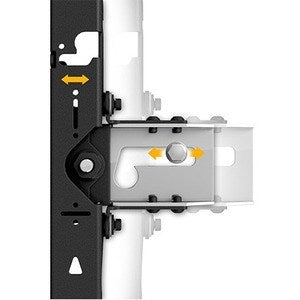

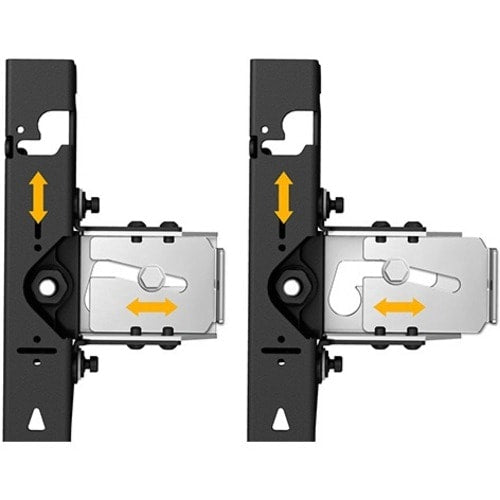

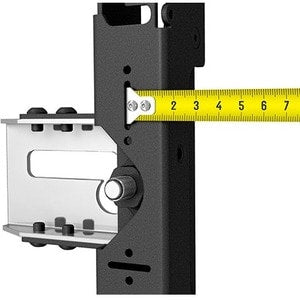

TiLED Video Wall Mounting Systems feature offset mounting slots to protect LED displays from damaging friction during installation. Once displays are in place, variable X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall. TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality. Compatible with: IF015H IF015H-E IF020H IF025H IF025H-E
Technical Specifications
| Miscellaneous | |
| Application/Usage | Wall |
| Flat Surface | |
| Compatibility | Chief LED Signage:
|
| Physical Characteristics | |
| Height | 20.80" (528.32 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 2.21" (56.13 mm) |
| General Information | |
| Product Type | Wall Mount |
| Manufacturer Part Number | TIL1X1IFH |
| Manufacturer Website Address | http://www.legrand.com |
| Manufacturer | Legrand Group |
| Product Model | TIL1X1IFH |
| Product Name | 1x1 LED Mount for Samsung IFH Series |
| Product Line | TiLED |
| Brand Name | Chief |
| Product Information | |
| Device Supported | Video Wall |
| Digital Signage Display | |
| LED Display | |
| Monitor | |
| Features | Landscape Mounting |
| Lateral Adjustment | |
| Plumb Adjustment | |
| Vertical Adjustment | |
| Maximum Load Capacity | 20 lb (9071.85 g) |
| Number of Displays Supported | 1 |
| Mount Profile | Low Profile |
