About the product

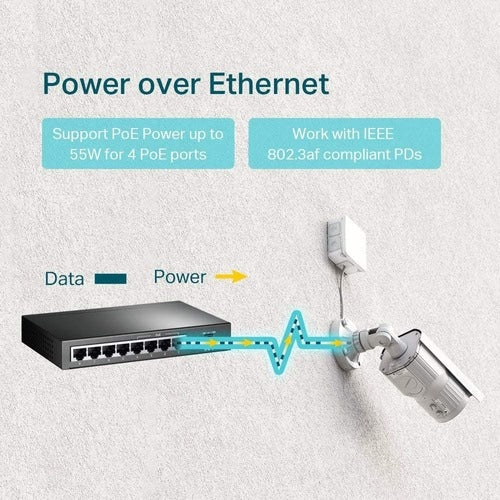

TL-SF1008P is an 8 10/100M ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. TL-SF1008P has the priority function which will help protect the system by cutting off the power of the lowest-priority port when the system power is overloaded.
- 8-Port 10/100M Desktop POE Switch.
- Supports PoE power up to 15.4W for each PoE port, Supports PoE power up to 57W for all PoE ports.
- 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging.
- LED indicators for monitoring power, link, activity.
- External power adapter supply (Output: 48VDC / 1.25A).
Technical Specifications
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
| Package Contents |
|
| System Requirements | Operating Systems:
|
| Environmentally Friendly | Yes |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3x | |
| IEEE 802.3af | |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 2.30 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 66 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.10" (27.94 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 3.90" (99.06 mm) |
| Product Material | Metal |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 4 |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| 4 x Fast Ethernet PoE+ | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SF1008P |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SF1008P |
| Product Name | 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+ |
| Brand Name | TP-Link |
