About the product

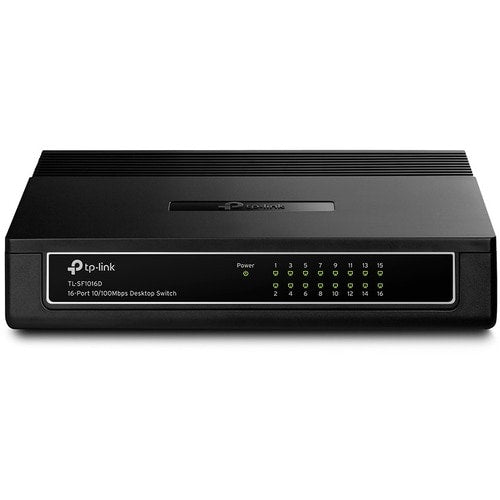

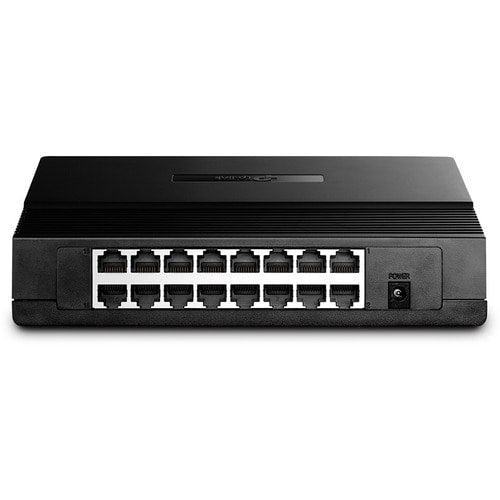

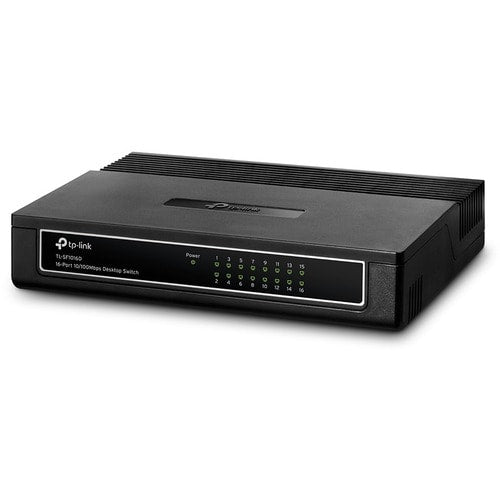

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server.
- Innovative energy-efficient technology saves power up to 70%.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- 3.2Gbps Switching Capacity.
- 9K Jumbo frame improves performance of large data transfers.
- Supports MAC address auto-learning and auto-aging.
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Fanless design ensures quiet operation.
- Plug and play, no configuration required.
Technical Specifications
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 3.20 W |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 16 |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Fast Ethernet Network |
| Miscellaneous | |
| Additional Information | Features:
|
| Package Contents |
|
| Certifications & Standards |
|
| System Requirements | Operating Systems:
|
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SF1016D |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SF1016D |
| Product Name | TL-SF1016D 16-Port 10/100Mbps Desktop Switch |
| Brand Name | TP-Link |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1.60" (40.64 mm) |
| Width | 7.90" (200.66 mm) |
| Depth | 0.22" (5.60 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
