Tp Link Wave length: 850nm. Data rate: 1.25Gbps. Port type: LC/UPC. Cable 550m

Name: Tp Link Wave length: 850nm. Data rate: 1.25Gbps. Port type: LC/UPC. Cable 550m
Brand: Tp Link
SKU: 857607NDN
Price: 30.25 CAD
Availability: OutOfStock

$30.25 CAD

~~$33.88 CAD~~ $30.25 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

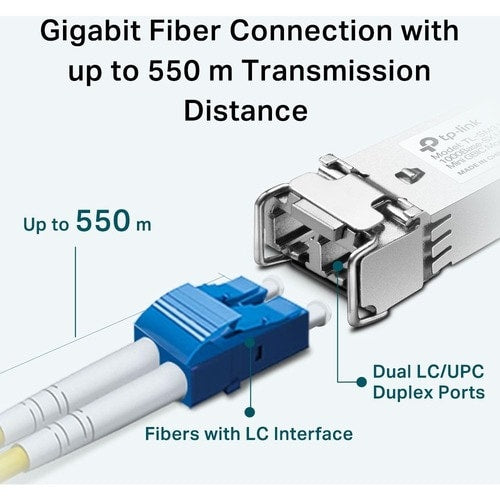

Tp Link Wave length: 850nm. Data rate: 1.25Gbps. Port type: LC/UPC. Cable length: 550m (1,800 feet) using 50/125um multi-mode fiber, 220m(720 feet) using 62.5/125um multi-mode fiber. Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L. Work with MC200CM with multi-mode fiber connection. Limited lifetime warranty. - For Data Networking, Optical Network - 1 x LC 1000Base-SX Network - Optical Fiber - Multi-mode - 1.25 Gigabit Ethernet - 1000Base-SX

VPN:TL-SM311LM SKU:857607NDN UPC:845973030209

Multi-Mode MiniGBIC module, Supports full-duplex.
Wave Length: 850nm. Data Rate: 1.25Gbps. Port Type: LC/UPC.
Max. Cable Length: 550m(1,800 feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber.

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Tp Link Wave length: 850nm. Data rate: 1.25Gbps. Port type: LC/UPC. Cable 550m

About the product

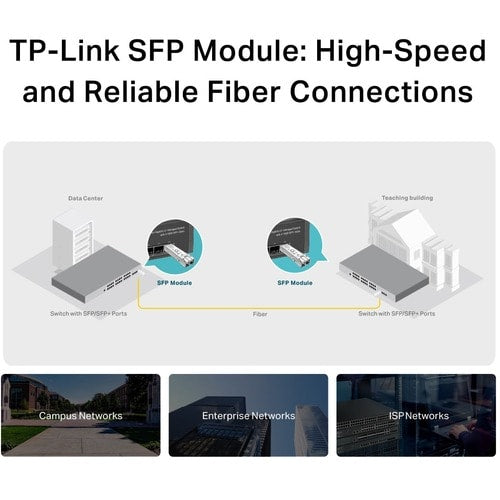

TL-SM311LM SFP (mini-GBIC) Module introduced for extending transfer distance, attached to managed/web smart switches. It can extend the distance to up 550 m which can basically satisfy the distance requirement of LAN.

Multi-Mode MiniGBIC module, Supports full-duplex.
Wave Length: 850nm. Data Rate: 1.25Gbps. Port Type: LC/UPC.
Max. Cable Length: 550m(1,800 feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber.
Always keep the protective dust plug on the SFP's optical bores until you are ready to make a connection.

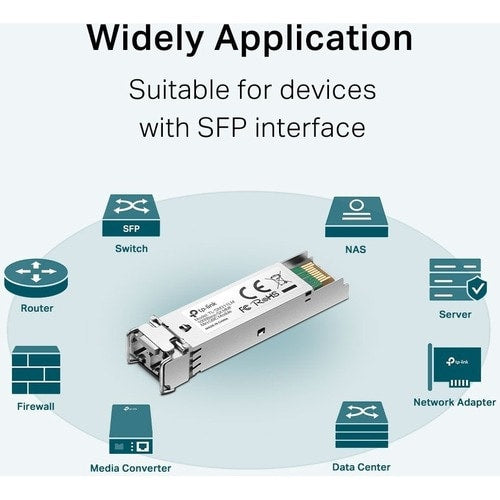

Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L.
Work with MC200CM with multi-mode fiber connection.

Technical Specifications

Technical Information
Application/Usage	Optical Network
	Data Networking
Interfaces/Ports
Interfaces/Ports Details	1 x LC 1000Base-SX Network
Connector Type	LC
Total Number of Ports	1
Media & Performance
Network Technology	1000Base-SX
Ethernet Technology	1.25 Gigabit Ethernet
Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Miscellaneous
Additional Information	Wavelength : 850 nm Distance Supported : 550 m Features: CSMA/CD TCP/IP Plug-and-Play supports Pull-or-Plug with power on switches
Package Contents	TL-SM311LM MiniGBIC Module Installation Guide
Compatibility	Pure-Gigabit Managed Switch TL-SG3109 Pure-Gigabit Managed Switch TL-SG3216 Pure-Gigabit Managed Switch TL-SG3224 Pure-Gigabit Managed Switch TL-SL3428 Pure-Gigabit Managed Switch TL-SL3452 Pure-Gigabit Web Smart Switch TL-SG2109WEB Pure-Gigabit Web Smart Switch TL-SG2216WEB Pure-Gigabit Web Smart Switch TL-SG2224WEB Pure-Gigabit Web Smart Switch TL-SG2210WEB Pure-Gigabit Web Smart Switch TL-SG2428WEB Pure-Gigabit Web Smart Switch TL-SG2452WEB Gigabit Switch TL-SL1351
Country of Origin	China
Environmentally Friendly	Yes
General Information
Product Type	SFP (mini-GBIC)
Manufacturer Part Number	TL-SM311LM
Manufacturer Website Address	http://www.tp-link.com
Manufacturer	TP-LINK Technologies Co., Ltd
Product Model	TL-SM311LM
Product Name	MiniGBIC Module
Brand Name	TP-Link
