About the product

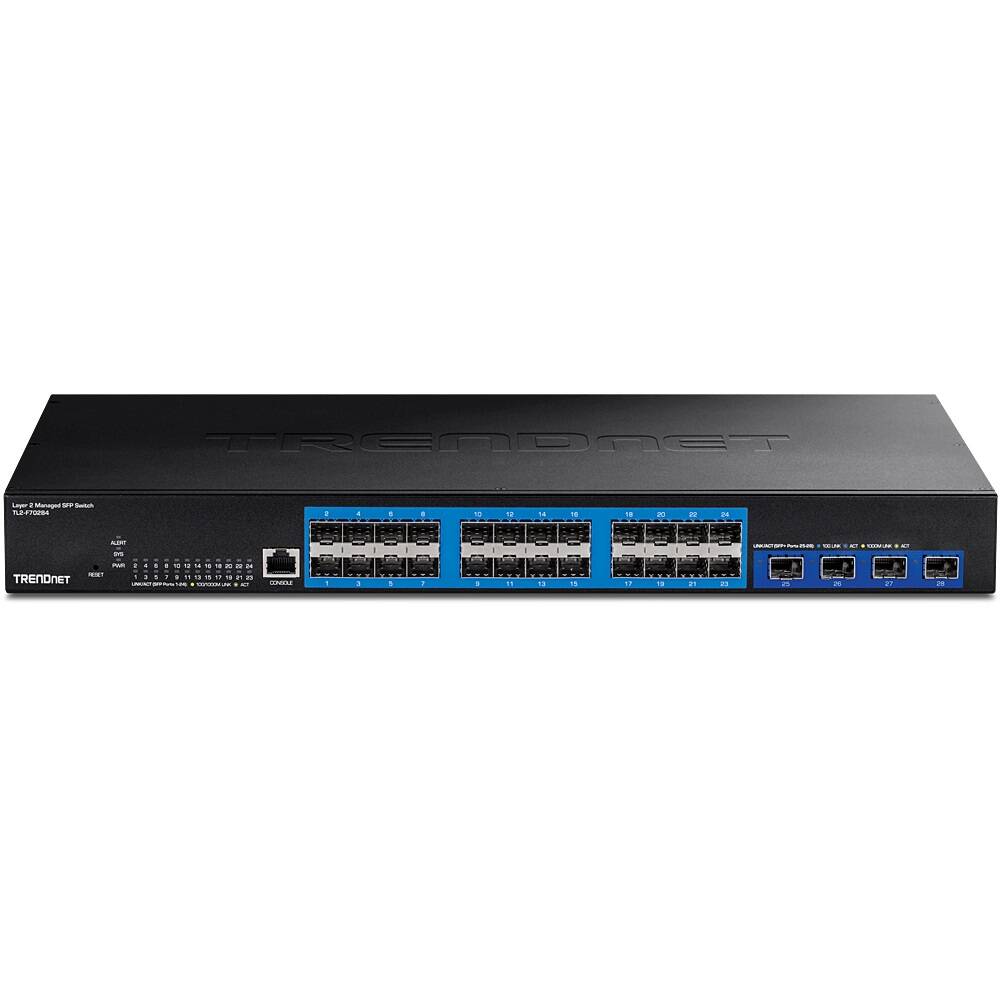

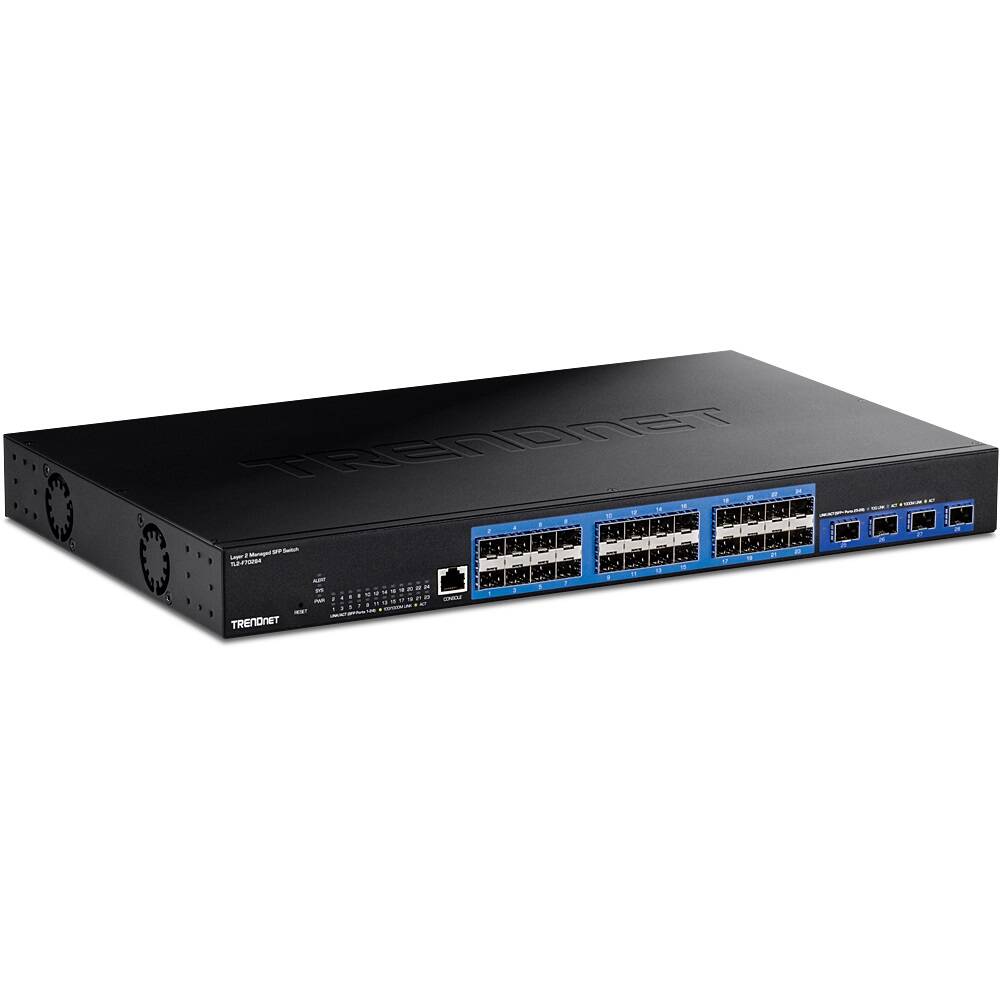

The TRENDnet 28-Port L2 Managed Rackmount SFP Switch with 10G SFP+ Ports is a gigabit SFP switch with 24x gigabit SFP ports with speeds up to 100Mbps/1Gbps, and 4x 10G SFP+ ports with speeds up to 1Gbps/10Gbps. With Layer 2 management support, web-based and CLI management for network optimization and management, and features like VLAN, GVRP and Voice VLAN support, inter-VLAN routing, IPv4/IPv6 static routing, and a total 128Gbps switching capacity, the TRENDnet 28-Port L2 Managed SFP Switch is ideal for managing RJ-45 and fiber SFP module-based networks. With included rackmount kit and smart fans for ultra-quiet operation, the TL2-F70284 is an low-footprint, robust solution for fiber networking installations.
TL2-F70284 Specs and Features:
- Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1v, IEEE 802.1ab, IEEE 802.3u, IEEE 802.3x,IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3z
- Device Interface:
- 24 x Gigabit SFP ports (100Mbps / 1Gbps)
- 4 x 10G SFP+ ports (1Gbps / 10Gbps)
- 1 x RJ-45 console port (out-of-band)
- LED indicators
- Reset button
- Data Transfer Rate
- Fast Ethernet SFP: 200Mbps (full duplex)
- Gigabit SFP: 2000Mbps (full duplex)
- 10G SFP+: 20Gbps (full duplex)
- Performance:
- Switching capacity: 128Gbps
- RAM buffer: 2MB
- MAC address table: 32K entries
- Jumbo frames: 12KB
- Forwarding mode: store and forward
- Forwarding rate: 95.2Mpps (64-byte packet size)
- Management
- CLI (Console / Telnet / SSH)
- GUI (HTTP / HTTPS)
- IPv4/IPv6
- DNS
- TFTP/HTTP firmware upgrade
- TFTP/HTTP backup and restore configuration
- SNMP v1, v2c, v3
- SNMP trap
- RMON groups 1/2/3/9
- LLDP
- ICMPv4/ICMPv6
- Trace Route IPv4/IPv6
- Simple Network time protocol (SNTP)
- Dual image (Active/Backup)
- SNTP
- System Log (Local/Download/Remote Syslog)
- MAC entries (Static/Dynamic)
- ARP entries (Static/Dynamic)
- IPv6 neighbor discovery entries (Static/Dynamic)
- Port mirror (One to one, many to one)
- Port statistics counter
- Loopback detection
- CPU/Memory Utilization
- Real-time port statistics
- Ping watchdog
- DDM (Digital Diagnostic Monitoring)
- MIB
- RMON MIB RFC 1757
- MIB II RFC 1213
- Ethernet Interface MIB RFC 1643
- Bridge MIB RFC 1493
- RFC1215 Generic Trap
- Spanning Tree
- Spanning tree protocol (STP)
- Rapid spanning tree protocol (RSTP)
- Multiple spanning tree protocol (MSTP)
- Link Aggregation
- Static link aggregation
- Dynamic LACP (Up to 8 groups)
- Quality of Service (QoS)
- Class of service (CoS)
- Differentiated Services Code Point (DSCP)
- Bandwidth control per port/rate limiting
- Queue scheduling: strict priority (SP), weighted round robin (WRR)
- VLAN
- 802.1Q tagged VLAN
- GVRP (GARP VLAN Registration Protocol)
- Up to 256 VLAN groups, ID range 1-4094
- Protocol VLAN
- MAC VLAN
- Private VLAN
- L3 Features
- IPv4 / IPv6 static routing
- IPv4 interfaces: Up to 15
- IPv6 interfaces: Up to 15
- Routing table entries: IPv4: 32 max. / IPv6: 32 max.
- Default route entries: 1 (IPv4 / IPv6)
- ARP table (up to 512 entries)
- Inter-VLAN routing
- Multicast
- IGMP snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP/MLD fast leave and querier
- IGMP/MLD dynamic router port, and report suppression
- Multicast filtering
- Up to 256 multicast groups
- Access Control
- 802.1X authentication (Local, RADIUS IPv4/IPv6, TACACS+ IPv4/IPv6)
- 802.1X RADIUS/Guest VLAN assignment, MAC-based authentication
- DHCP snooping/binding
- Dynamic ARP inspection
- Port Security/MAC address learning restriction (Up to 256 entries per port)
- Denial of Service (DoS)
- Power
- Input: 100 – 240V AC, 50/60 Hz
- Max. consumption: 38.4W
- 3x Smart Fan Noise Level: 52.9 dBa (max.)
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Dimensions: 440 x 270 x 44mm (17.3 x 10.63 x 1.73 in.)
- Rack mountable 1U height
- Weight: 3.82kg (8.42 lbs.)
- Certifications: CE, FCC, ETL
- Package Includes:
- 1x TEG-MGBS20
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 28-Port L2 Managed Rackmount SFP Switch with 10G SFP+ Ports is a gigabit SFP switch with 24x gigabit SFP ports with speeds up to 100Mbps/1Gbps, and 4x 10G SFP+ ports with speeds up to 1Gbps/10Gbps. With Layer 2 management support, web-based and CLI management for network optimization and management, and features like VLAN, GVRP and Voice VLAN support, inter-VLAN routing, IPv4/IPv6 static routing, and a total 128Gbps switching capacity, the TRENDnet 28-Port L2 Managed SFP Switch is ideal for managing RJ-45 and fiber SFP module-based networks. With included rackmount kit and smart fans for ultra-quiet operation, the TL2-F70284 is an low-footprint, robust solution for fiber networking installations.
TL2-F70284 Specs and Features:
- Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1v, IEEE 802.1ab, IEEE 802.3u, IEEE 802.3x,IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3z
- Device Interface:
- 24 x Gigabit SFP ports (100Mbps / 1Gbps)
- 4 x 10G SFP+ ports (1Gbps / 10Gbps)
- 1 x RJ-45 console port (out-of-band)
- LED indicators
- Reset button
- Data Transfer Rate
- Fast Ethernet SFP: 200Mbps (full duplex)
- Gigabit SFP: 2000Mbps (full duplex)
- 10G SFP+: 20Gbps (full duplex)
- Performance:
- Switching capacity: 128Gbps
- RAM buffer: 2MB
- MAC address table: 32K entries
- Jumbo frames: 12KB
- Forwarding mode: store and forward
- Forwarding rate: 95.2Mpps (64-byte packet size)
- Management
- CLI (Console / Telnet / SSH)
- GUI (HTTP / HTTPS)
- IPv4/IPv6
- DNS
- TFTP/HTTP firmware upgrade
- TFTP/HTTP backup and restore configuration
- SNMP v1, v2c, v3
- SNMP trap
- RMON groups 1/2/3/9
- LLDP
- ICMPv4/ICMPv6
- Trace Route IPv4/IPv6
- Simple Network time protocol (SNTP)
- Dual image (Active/Backup)
- SNTP
- System Log (Local/Download/Remote Syslog)
- MAC entries (Static/Dynamic)
- ARP entries (Static/Dynamic)
- IPv6 neighbor discovery entries (Static/Dynamic)
- Port mirror (One to one, many to one)
- Port statistics counter
- Loopback detection
- CPU/Memory Utilization
- Real-time port statistics
- Ping watchdog
- DDM (Digital Diagnostic Monitoring)
- MIB
- RMON MIB RFC 1757
- MIB II RFC 1213
- Ethernet Interface MIB RFC 1643
- Bridge MIB RFC 1493
- RFC1215 Generic Trap
- Spanning Tree
- Spanning tree protocol (STP)
- Rapid spanning tree protocol (RSTP)
- Multiple spanning tree protocol (MSTP)
- Link Aggregation
- Static link aggregation
- Dynamic LACP (Up to 8 groups)
- Quality of Service (QoS)
- Class of service (CoS)
- Differentiated Services Code Point (DSCP)
- Bandwidth control per port/rate limiting
- Queue scheduling: strict priority (SP), weighted round robin (WRR)
- VLAN
- 802.1Q tagged VLAN
- GVRP (GARP VLAN Registration Protocol)
- Up to 256 VLAN groups, ID range 1-4094
- Protocol VLAN
- MAC VLAN
- Private VLAN
- L3 Features
- IPv4 / IPv6 static routing
- IPv4 interfaces: Up to 15
- IPv6 interfaces: Up to 15
- Routing table entries: IPv4: 32 max. / IPv6: 32 max.
- Default route entries: 1 (IPv4 / IPv6)
- ARP table (up to 512 entries)
- Inter-VLAN routing
- Multicast
- IGMP snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP/MLD fast leave and querier
- IGMP/MLD dynamic router port, and report suppression
- Multicast filtering
- Up to 256 multicast groups
- Access Control
- 802.1X authentication (Local, RADIUS IPv4/IPv6, TACACS+ IPv4/IPv6)
- 802.1X RADIUS/Guest VLAN assignment, MAC-based authentication
- DHCP snooping/binding
- Dynamic ARP inspection
- Port Security/MAC address learning restriction (Up to 256 entries per port)
- Denial of Service (DoS)
- Power
- Input: 100 – 240V AC, 50/60 Hz
- Max. consumption: 38.4W
- 3x Smart Fan Noise Level: 52.9 dBa (max.)
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Dimensions: 440 x 270 x 44mm (17.3 x 10.63 x 1.73 in.)
- Rack mountable 1U height
- Weight: 3.82kg (8.42 lbs.)
- Certifications: CE, FCC, ETL
- Package Includes:
- 1x TEG-MGBS20
- Quick Installation Guide
- Lifetime Manufacturer’s Warranty
