Product information summary

TRENDnet 24 Port Gigabit Layer 2 L2 Managed Switch, 4 Shared SFP Slots (TL2-G244)

About the product

TRENDnet's 24-Port Gigabit Managed Layer 2 Switch, model TL2-G244, has 24 x Gigabit ports, 4 x shared SFP slots, a console port, and an advanced Layer 2 management feature set. This IPv6 ready switch offers traffic management, troubleshooting, access control, and monitoring features needed to build a SMB network.

TRENDnet TL2-G244 Features

  • Command Line and console inputs supported
  • SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support
  • Supports Port Trunking, Mirroring, IGMP, Static and Dynamic VLAN, RMON, and more
  • Private/Voice VLAN, QoS, and bandwidth controls
  • 24 x Gigabit ports
  • 4 x shared SFP slots and a console port
  • 48 Gbps switching capacity
  • Fanless design
  • Lifetime Warranty*

    • TRENDNET TL2-G244 Specifications

    Standards
    • IEEE 802.1d
    • IEEE 802.1p
    • IEEE 802.1Q
    • IEEE 802.1s
    • IEEE 802.1w
    • IEEE 802.1X
    • IEEE 802.1ab
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3z
    • IEEE 802.3ab
    • IEEE 802.3ad
    • IEEE 802.3az

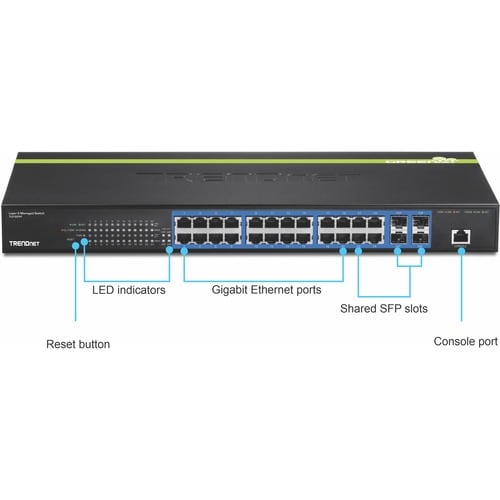

    Device Interface
    • 24 x Gigabit ports (ports 1-24)
    • 4 x Shared SFP slots (shared with ports 21-24)
    • 1 x Console Port
    • LED indicators
    Data Transfer Rate
    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit Ethernet: 2000 Mbps (full duplex)
    Performance
    • Switch fabric: 48 Gbps
    • RAM buffer: 1 MB
    • MAC Address Table: 16K entries
    • Jumbo Frames: 10 KB
    • HOL Blocking Prevention
    • Forwarding rate: 35.7 Mpps (64-byte packet size)
    Management
    • CLI (Console)
    • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
    • SNMP v1, v2c, v3
    • RMON v1
    • Static Unicast MAC Address
    • Enable/disable 802.3az Power Saving
    • LLDP
    • Virtual Cable Test
    • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
    MIB
    • MIB II RFC 1213
    • Bridge MIB RFC 1493
    • Bridge MIB Extension RFC 2674
    • SNMPv2 MIB RFC 1907
    • Ethernet Interface MIB RFC 1643
    • Ethernet like MIB RFC 2863
    • Interface Group MIB RFC 2233
    • MIB Traps Convention RFC 1215
    • RMON MIB RFC 1757, RFC 2819
    • 802.1p MIB RFC 2674
    • RADIUS Client Authentication MIB RFC 2618
    • LLDP-MIB IEEE 802.1ab
    • Ping MIB RFC 2925, RFC 4560
    Spanning Tree
    • IEEE 802.1D STP (Spanning Tree protocol)
    • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
    Link Aggregation
    • Static Link Aggregation
    • 802.3ad Dynamic LACP
    Quality of Service (QoS)
    • 802.1p Class of Service (CoS)
    • DSCP (Differentiated Services Code Point)
    • Bandwidth Control per port
    • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
    VLAN
    • Multiple management VLAN assignment
    • Asymmetric VLAN
    • 802.1Q Tagged VLAN
    • Dynamic GVRP
    • Up to 256 VLAN groups, ID Range 1-4094
    • Private VLAN (Protected Ports)
    • Voice VLAN (10 user defined OUIs)
    Multicast
    • IGMP Snooping v1, v2, v3 (per VLAN)
    • Static Multicast Address
    • Up to 256 multicast entries
    Port Mirror
    • RX, TX, or Both
    • One to one
    Access Control
    • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
    • Local Dial In User Authentication
    • DHCP Snooping (per VLAN)
    • Loopback Detection
    • Duplicated Address Detection
    • Trusted Host
    • Denial of Service (DoS)
    ACL IPv4 L2-L4 & IPv6
    • MAC Address
    • VLAN ID
    • Ether Type (IPv4 only)
    • IP Protocol 0-255
    • TCP/UDP Port 1-65535
    • 802.1p
    • DSCP (IPv4 only)
    • IPv6 Address (IPv6 only)
    Compatibility
    • Optional Software Utility: Windows 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server
    Special Features
    • Fanless Design
    • IPv6
    • 802.3az power saving
    • Rack mountable
    Power
    • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
    • Consumption: 15 Watts (max.)
    Fan / Acoustics
    • Quantity: 0
    • Noise Level: 0 dB(A) (max.)
    MTBF
    • 806,202 hours
    Operating Temperature
    • 0 45C (32 - 113F)
    Operating Humidity
    • Max. 90% non-condensing

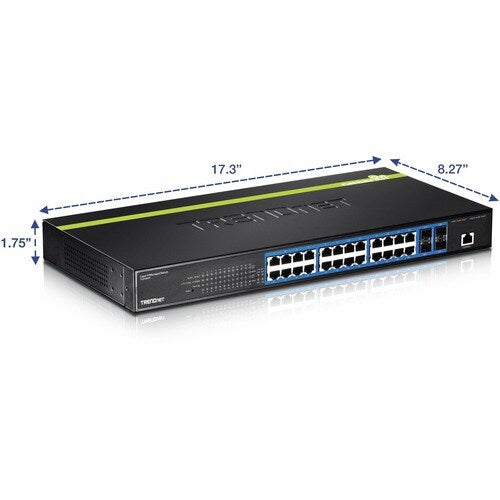

    Dimensions
    • 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
    • Rack mountable 1U height
    Weight
    • 2.8 kg (6.2 lbs.)
    Certifications
    • CE
    • FCC
    Warranty

    What's Included

  • TL2-G244
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power cord (1.8 m / 6 ft.)
  • Console cable (1.8 m / 6 ft.)
  • Rack mount kit

    • Technical Specifications
