About the product

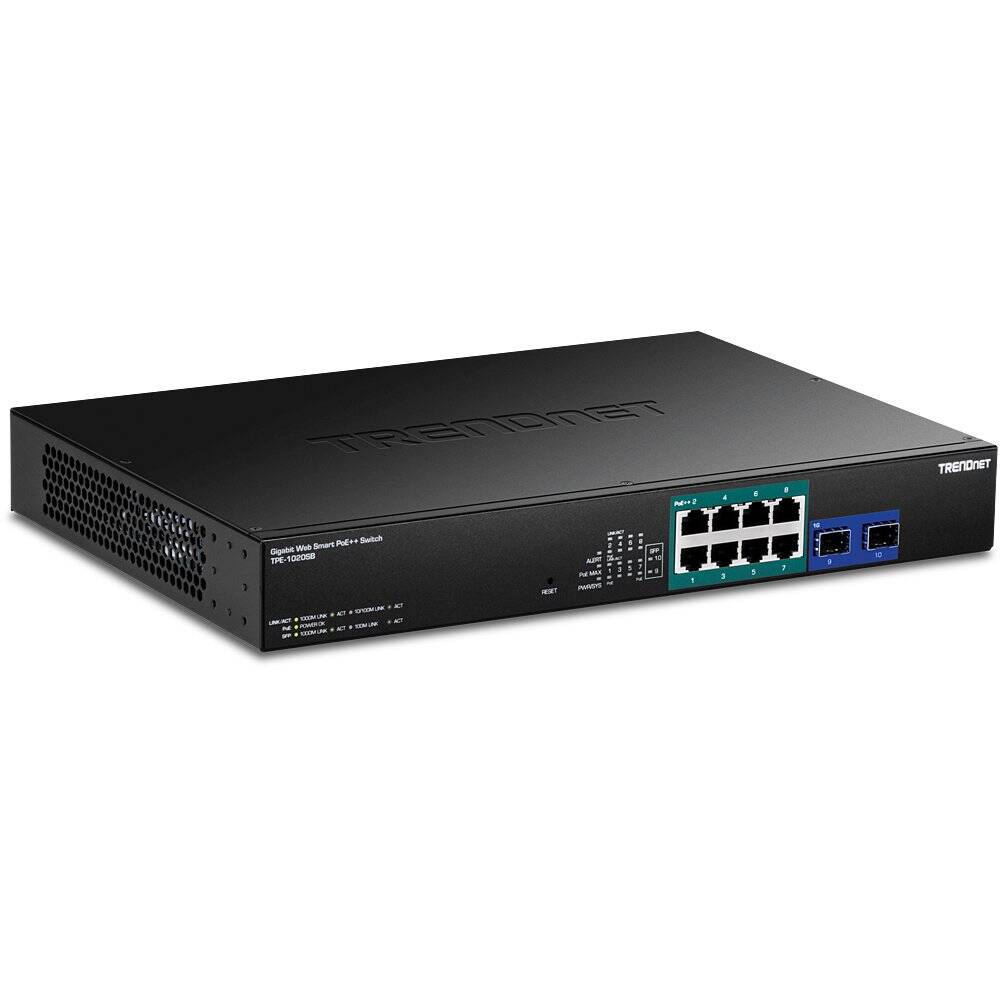

The TRENDnet 10-Port Gigabit PoE++ Smart Switch is a 1U 19” rack mountable fast network switch with advanced administrative controls and PoE++ electrical output for modern networking solutions. With PoE alive check to revive unresponsive PoE devices and auto-addressing, the TPE-1020SB is the perfect compliment to IP security systems that require constant uptime and minimal IT support.
With a user-friendly web-based management interface, administrators can easily route and control bandwidth on a per-port level, and with IPv6, LACP, VLAN, QoS, and IGMP Snooping; advanced management of networking systems can be accomplished with ease. Also supports Private, Multicast and Voice VLAN for efficient grouping and LAN organization supported by a 20Gbps switching capacity.
A 180W PoE power budget and 8x 95W gigabit PoE++ ports and 2x SFP slots support advanced networking configurations and hardware with high power demands, like PTZ cameras and high-gain PTP and AP networking devices.
TPE-1020SB Specs and Features:
- Device Interface:
- 8x Gigabit 95W PoE++ ports
- 2x Gigabit SFP ports
- LED indicators
- Reset button
- Standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
- Data Transfer Rate:
- Gigabit Ethernet: 2000Mbps (full duplex)
- SFP: 2000Mbps (full duplex)
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS version 1.2) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
- MIB:
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3 (per VLAN)
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
- PoE:
- Power Budget: 180W
- 802.3bt: up to 95W
- PoE++: pin 1, 2, 4, 5 + and pin 3, 6, 7, 8 -
- PoE manual classification
- Operating temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 330 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)
- Rack mountable 1U height
- Weight: 2.38kg (5.25 lbs.)
- Certifications: CE, FCC, LVD, ETL
- Package contents:
- 1x TPE-1020SB
- Quick Installation Guide
- Power cord (1.5m/4.9 ft.)
- Rackmount kit
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 10-Port Gigabit PoE++ Smart Switch is a 1U 19” rack mountable fast network switch with advanced administrative controls and PoE++ electrical output for modern networking solutions. With PoE alive check to revive unresponsive PoE devices and auto-addressing, the TPE-1020SB is the perfect compliment to IP security systems that require constant uptime and minimal IT support.
With a user-friendly web-based management interface, administrators can easily route and control bandwidth on a per-port level, and with IPv6, LACP, VLAN, QoS, and IGMP Snooping; advanced management of networking systems can be accomplished with ease. Also supports Private, Multicast and Voice VLAN for efficient grouping and LAN organization supported by a 20Gbps switching capacity.
A 180W PoE power budget and 8x 95W gigabit PoE++ ports and 2x SFP slots support advanced networking configurations and hardware with high power demands, like PTZ cameras and high-gain PTP and AP networking devices.
TPE-1020SB Specs and Features:
- Device Interface:
- 8x Gigabit 95W PoE++ ports
- 2x Gigabit SFP ports
- LED indicators
- Reset button
- Standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
- Data Transfer Rate:
- Gigabit Ethernet: 2000Mbps (full duplex)
- SFP: 2000Mbps (full duplex)
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS version 1.2) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
- MIB:
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3 (per VLAN)
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
- PoE:
- Power Budget: 180W
- 802.3bt: up to 95W
- PoE++: pin 1, 2, 4, 5 + and pin 3, 6, 7, 8 -
- PoE manual classification
- Operating temperature: 0° – 40° C (32° – 104° F)
- Dimensions: 330 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)
- Rack mountable 1U height
- Weight: 2.38kg (5.25 lbs.)
- Certifications: CE, FCC, LVD, ETL
- Package contents:
- 1x TPE-1020SB
- Quick Installation Guide
- Power cord (1.5m/4.9 ft.)
- Rackmount kit
- Lifetime Manufacturer’s Warranty
