About the product

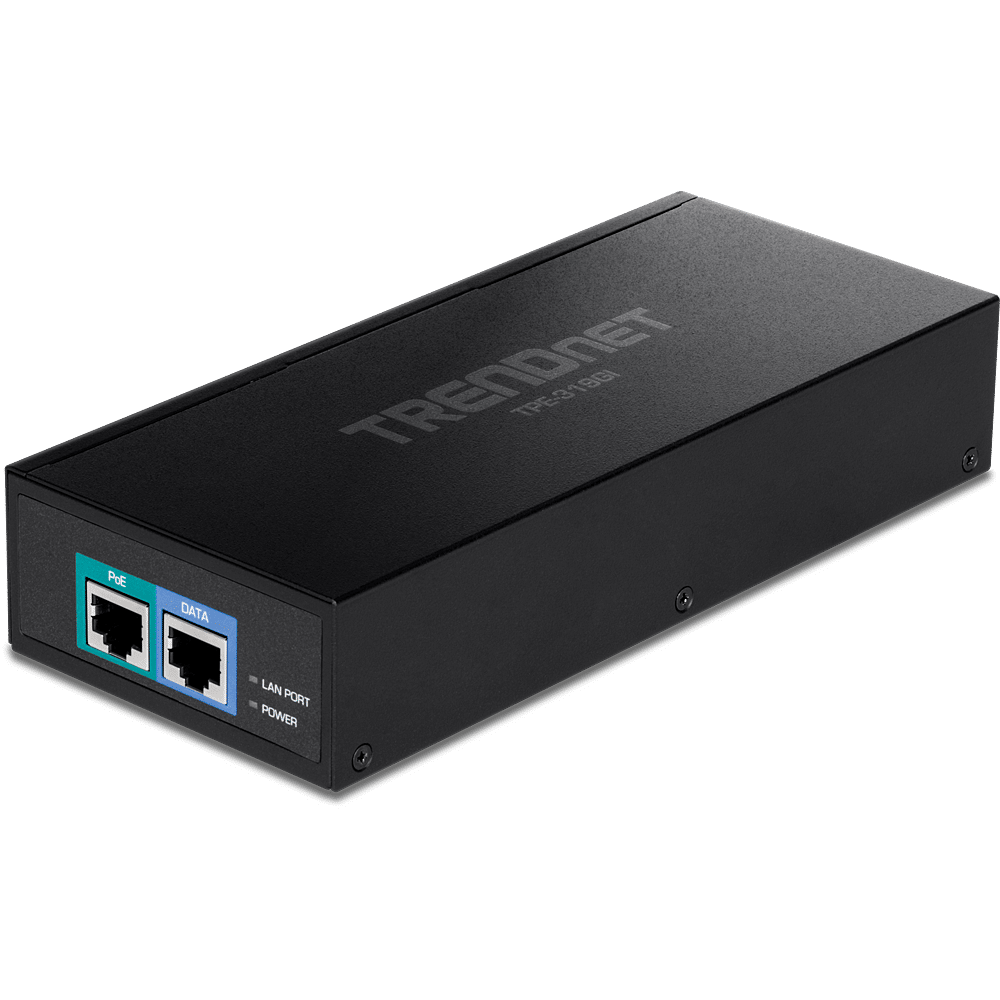

TRENDnet TPE-319GI 10G PoE++ Injector Overview
TRENDnet’s 10G PoE++ Injector, model TPE-319GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+, or PoE++ device up to 100 meters (328 ft.) over cat6a or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
- Converts a non-PoE port to a PoE++ 10G port
- Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
- 10GBASE-T compliant
- Integrated power supply
- Network a PoE device up to 100m (328 ft.) over cat6a or better cabling
- Save on installation and equipment costs
- IEEE 802.3af, 802.3at, and 802.3bt compliant
TRENDnet TPE-319GI 10G PoE++ Injector Features
- PoE++
- 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
- Installation Flexibility
- Wall-mount design and a sturdy metal enclosure accommodate most installation scenarios.
- 10G Speeds
- Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.
- 10G Ports
- 1 x 10G port (data) and 1 x 10G PoE++ port (data + power)
- Easy Installation
- Simply connect the 10G PoE++ injector to your switch and PoE device – no configuration is needed
- PoE Distance
- Provides a PoE++ network connection up to 100m (328 ft.) over cat6a or better cabling
- LED Indicators
- LED indicators on the 10G PoE++ injector confirm PoE and network connectivity
- Auto-Sensing Technology
- Featuring auto-sensing technology, the 10G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices.
TRENDnet TPE-319GI 10G PoE++ Injector Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3an
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Device Interface
- 1 x 10GBASE-T port (data)
- 1 x 10GBASE-T PoE+ port (data + power)
- Throughout & Distance
- Cat5e Cabling: 1Gbps @ 100m (328 ft.)
- Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
- Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
- PoE Budget
- Max. 90W
- Power Consumption
- Max. 0.7W (without PD)
- Temperature
- 0 – 40° C (32 – 104° F)
- Humidity
- Max. 90% non-condensing
- Certifications
- CE
- FCC
- ETL
- Dimensions
- 193 x 82 x 38mm (7.6 x 3.2 x 1.5 in.)
- Weight
- 672g (1.48 lbs.)
- Warranty
- 3 year
- Package Contents
- TPE-319GI
- Quick Installation Guide
- Power cord
Technical Specifications
TRENDnet TPE-319GI 10G PoE++ Injector Overview
TRENDnet’s 10G PoE++ Injector, model TPE-319GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+, or PoE++ device up to 100 meters (328 ft.) over cat6a or better cabling. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
- Converts a non-PoE port to a PoE++ 10G port
- Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
- 10GBASE-T compliant
- Integrated power supply
- Network a PoE device up to 100m (328 ft.) over cat6a or better cabling
- Save on installation and equipment costs
- IEEE 802.3af, 802.3at, and 802.3bt compliant
TRENDnet TPE-319GI 10G PoE++ Injector Features
- PoE++
- 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
- Installation Flexibility
- Wall-mount design and a sturdy metal enclosure accommodate most installation scenarios.
- 10G Speeds
- Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.
- 10G Ports
- 1 x 10G port (data) and 1 x 10G PoE++ port (data + power)
- Easy Installation
- Simply connect the 10G PoE++ injector to your switch and PoE device – no configuration is needed
- PoE Distance
- Provides a PoE++ network connection up to 100m (328 ft.) over cat6a or better cabling
- LED Indicators
- LED indicators on the 10G PoE++ injector confirm PoE and network connectivity
- Auto-Sensing Technology
- Featuring auto-sensing technology, the 10G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices.
TRENDnet TPE-319GI 10G PoE++ Injector Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3an
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
- Device Interface
- 1 x 10GBASE-T port (data)
- 1 x 10GBASE-T PoE+ port (data + power)
- Throughout & Distance
- Cat5e Cabling: 1Gbps @ 100m (328 ft.)
- Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
- Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
- PoE Budget
- Max. 90W
- Power Consumption
- Max. 0.7W (without PD)
- Temperature
- 0 – 40° C (32 – 104° F)
- Humidity
- Max. 90% non-condensing
- Certifications
- CE
- FCC
- ETL
- Dimensions
- 193 x 82 x 38mm (7.6 x 3.2 x 1.5 in.)
- Weight
- 672g (1.48 lbs.)
- Warranty
- 3 year
- Package Contents
- TPE-319GI
- Quick Installation Guide
- Power cord
