About the product

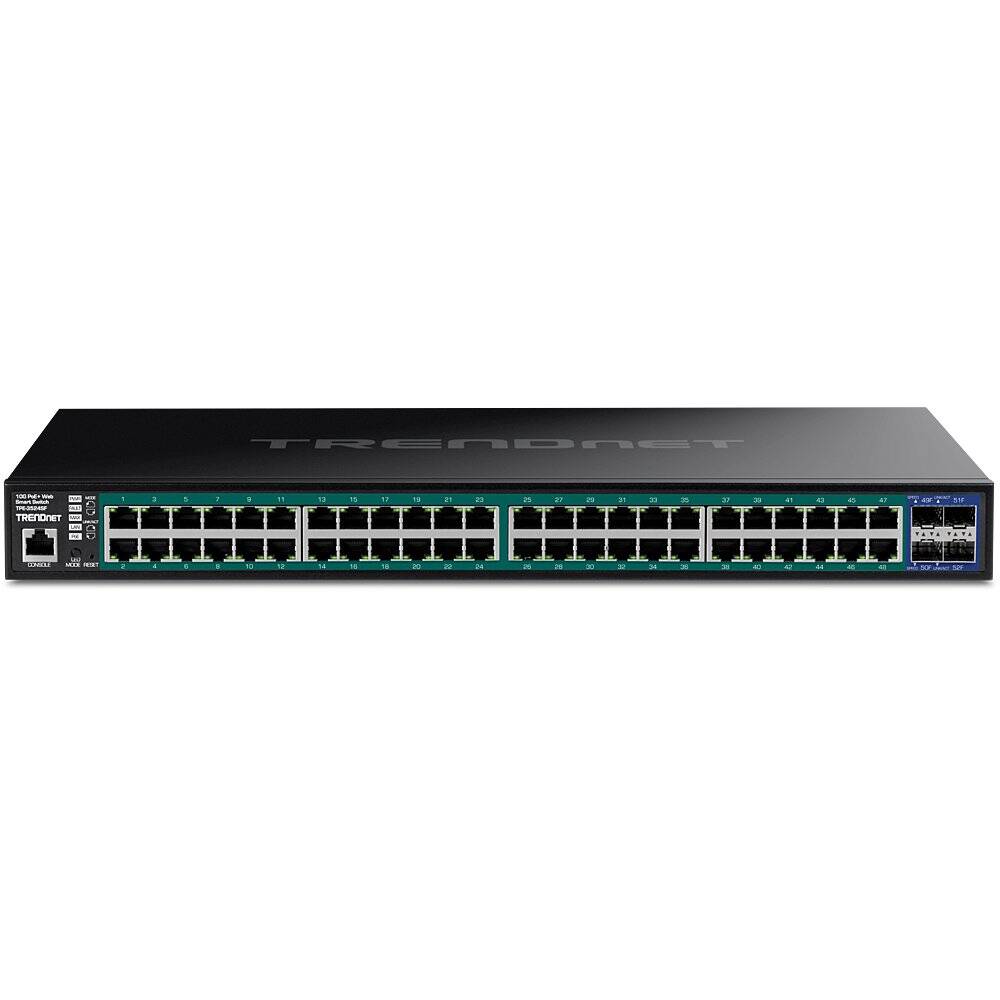

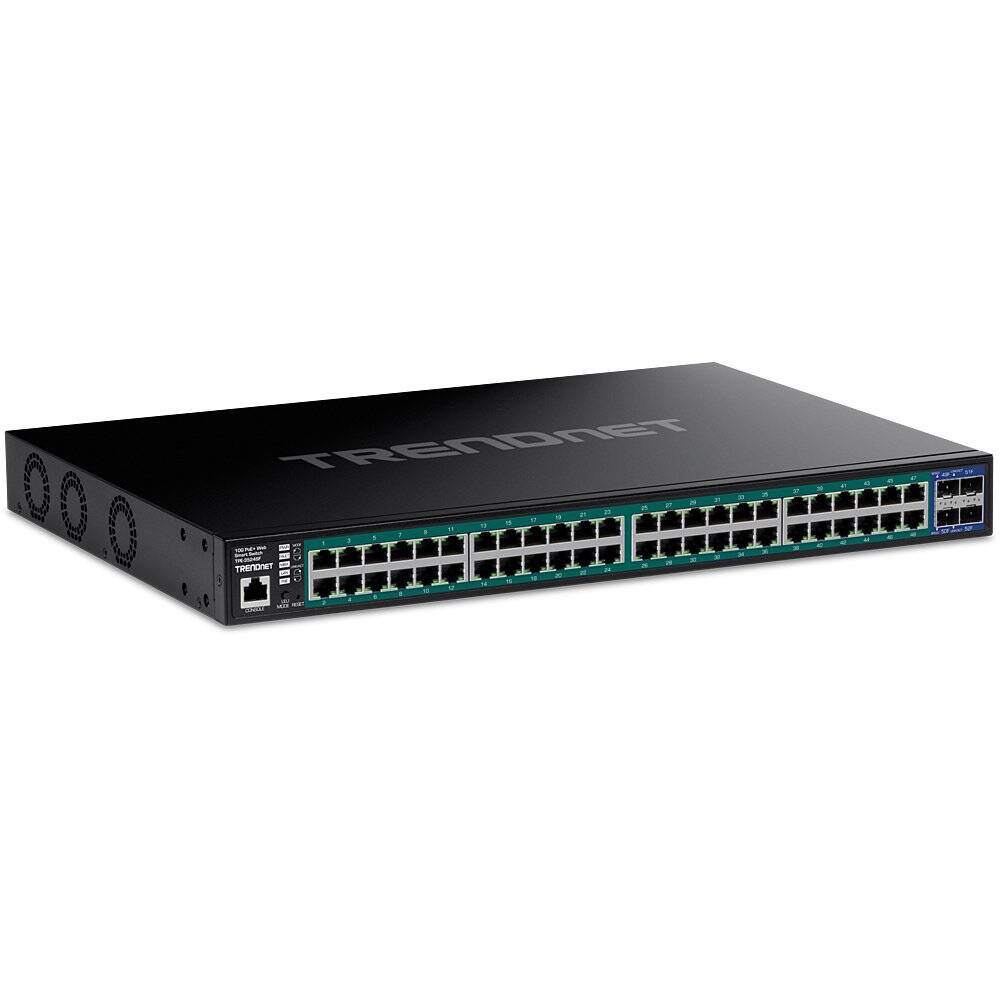

The TRENDnet 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Slots is a metal, 1U 19’’ rackmount gigabit network switch for modern SMB networks. Featuring L2+ features with enhanced traffic management and a 740W total PoE+ output across 48 gigabit ports, the TPE-3524SF is an excellent solution for central network management and optimization.
Featuring a user-friendly web interface, administrators can perform high level networking optimizations like: grouping ports together with LACP to increase bandwidth between switches, creating virtual LAN groups with VLAN support, prioritizing traffic and boosting speeds with port bandwidth and QoS controls, and more.
L2+ Managed IPv4/IPv6 static routing allows for router optimization and frees up resources by offloading routing processes for equipment that does not need dynamic addressing—perfect for larger, industrial security systems with many cameras. IGMP/MLD snooping features allow users to optimize the performance of IP security systems by minimizing network traffic and channel interference.
SNMP monitoring delivers critical network information at a glance, and dynamic ARP inspection protects devices connected to the switch from being compromised by MITM attacks and invalid ARP packets. RMON, SNMP Trap and Port Mirroring allow for high-level administrator monitoring, and ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS support enhances network security.
TPE-3524SF Specs and Features:
- Device Interface:
- 48 x Gigabit PoE+ ports
- 4 x 10G SFP+ ports
- 1 x RJ-45 console port (out-of-band)
- LED indicators
- Reset button
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- FP: 2000Mbps (full duplex)
- SFP+: 20Gbps (full duplex)
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
- MIB:
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3 (per VLAN)
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
- PoE:
- PoE budget: 740W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1, 2 for power and pins 3.6 for power
- PD auto classification
- Over current/short circuit protection
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Dimensions: 440 x 310 x 44mm (17.32 x 12.2 x 1.73 in.)
- Weight: 4.725 kg (10.41 lbs)
- Certifications: CE, FCC, UL
- Package includes:
- 1x TPE-3524SF
- Quick Installation Guide
- Power cord (1.5m / 5 ft.)
- Console Cable (1m / 3.28 ft.)
- Rackmount brackets
- Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Slots is a metal, 1U 19’’ rackmount gigabit network switch for modern SMB networks. Featuring L2+ features with enhanced traffic management and a 740W total PoE+ output across 48 gigabit ports, the TPE-3524SF is an excellent solution for central network management and optimization.
Featuring a user-friendly web interface, administrators can perform high level networking optimizations like: grouping ports together with LACP to increase bandwidth between switches, creating virtual LAN groups with VLAN support, prioritizing traffic and boosting speeds with port bandwidth and QoS controls, and more.
L2+ Managed IPv4/IPv6 static routing allows for router optimization and frees up resources by offloading routing processes for equipment that does not need dynamic addressing—perfect for larger, industrial security systems with many cameras. IGMP/MLD snooping features allow users to optimize the performance of IP security systems by minimizing network traffic and channel interference.
SNMP monitoring delivers critical network information at a glance, and dynamic ARP inspection protects devices connected to the switch from being compromised by MITM attacks and invalid ARP packets. RMON, SNMP Trap and Port Mirroring allow for high-level administrator monitoring, and ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS support enhances network security.
TPE-3524SF Specs and Features:
- Device Interface:
- 48 x Gigabit PoE+ ports
- 4 x 10G SFP+ ports
- 1 x RJ-45 console port (out-of-band)
- LED indicators
- Reset button
- Data Transfer Rate:
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
- FP: 2000Mbps (full duplex)
- SFP+: 20Gbps (full duplex)
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
- MIB:
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
- VLAN:
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
- Multicast:
- IGMP Snooping v1, v2, v3 (per VLAN)
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
- PoE:
- PoE budget: 740W
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1, 2 for power and pins 3.6 for power
- PD auto classification
- Over current/short circuit protection
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Dimensions: 440 x 310 x 44mm (17.32 x 12.2 x 1.73 in.)
- Weight: 4.725 kg (10.41 lbs)
- Certifications: CE, FCC, UL
- Package includes:
- 1x TPE-3524SF
- Quick Installation Guide
- Power cord (1.5m / 5 ft.)
- Console Cable (1m / 3.28 ft.)
- Rackmount brackets
- Lifetime Manufacturer’s Warranty
