About the product

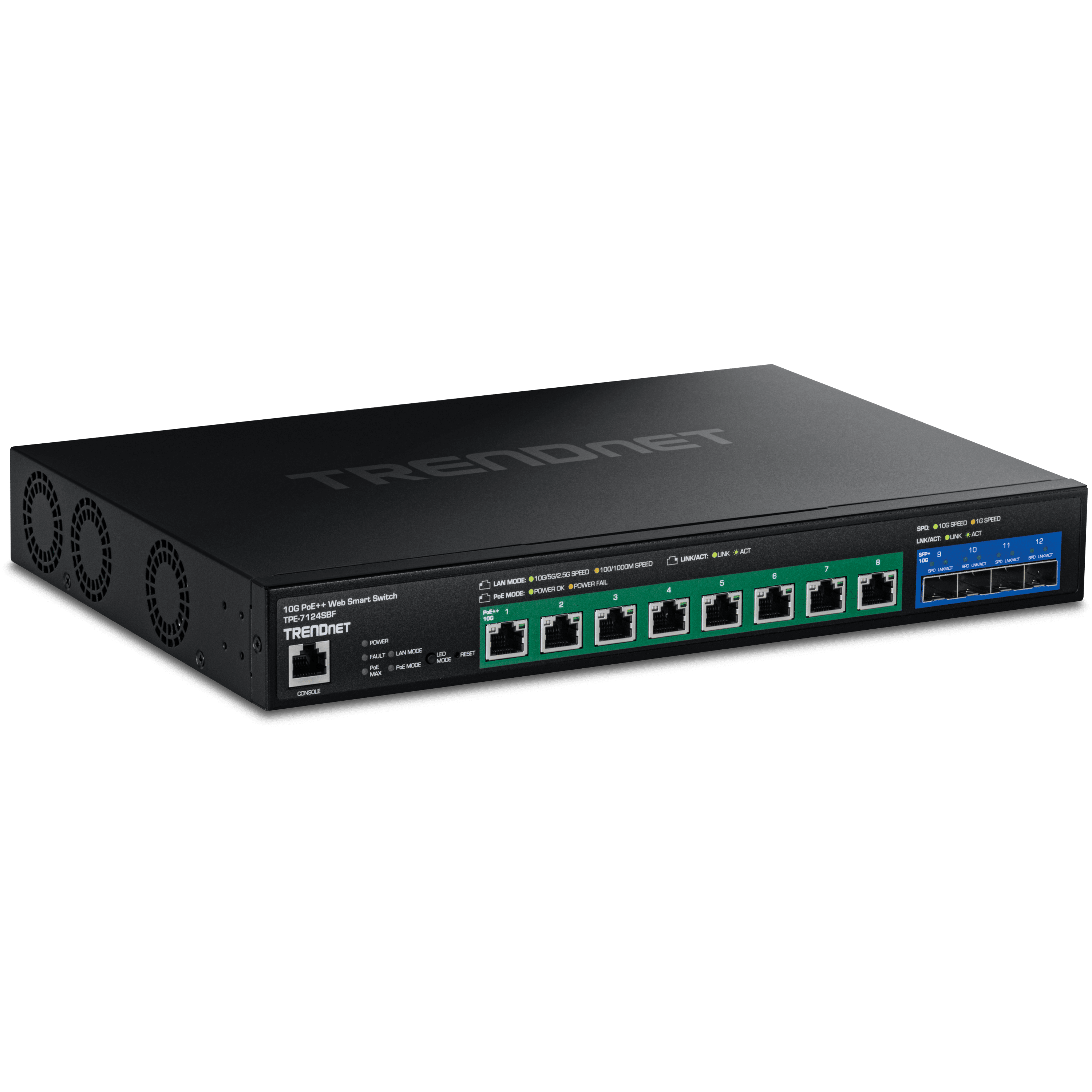

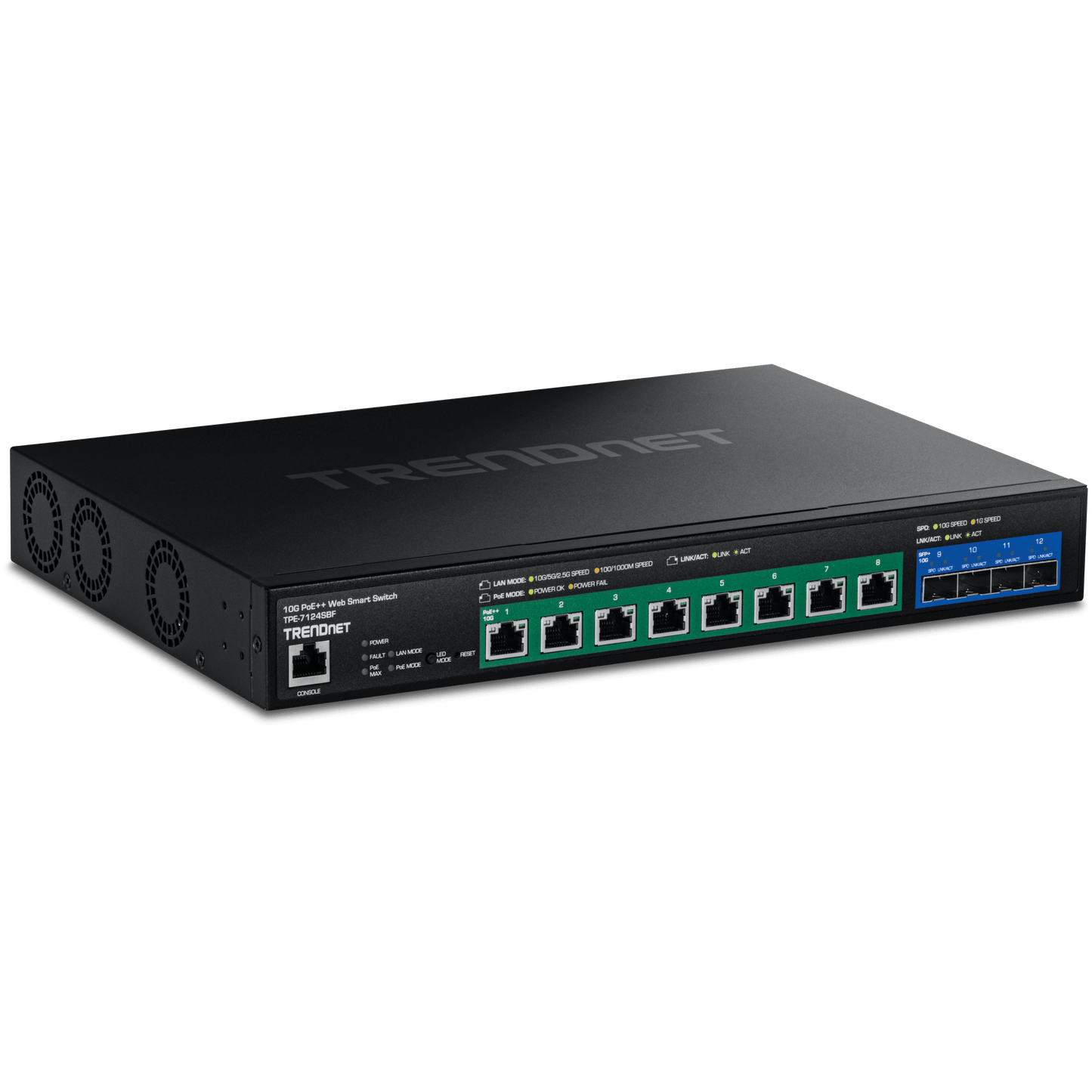

The TRENDnet 12-Port 10G PoE++ Web Smart Switch with 4 10G SFP+ ports is a powerful, all-in-one solution for traffic management and power distribution designed for large-scale SMB networks and power-hungry surveillance systems running off PoE, PoE+ or PoE++. With an easy-to-use web interface, administrators can optimize and manage network traffic and bandwidth allocation; create VLANs and VLAN groups; set up QoS for traffic priority on essential systems; create per-port bandwidth controls, and more—even from remote locations.
Perpetual PoE eliminates downtime on connected hardware by providing constant electrical connection, even when data is interrupted on system reboots or updating, preventing critical data loss or equipment malfunction. PoE Alive Check automatically recovers disconnected devices and re-connects unresponsive devices like cameras—ideal for automatically readdressing cameras in places prone to power failures or network interruptions like rural areas or isolated properties.
Featuring eight 10GBASE-T PoE++ ports and four 10G fiber SFP+ ports, users and installers can incorporate long-distance, high-speed copper connections for 10G networks; expanding and optimizing SMB networks and long-range, multi-zone security systems like industrial properties or multi-unit commercial security systems.
TPE-7124SBF Specs and Features
- Standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
- Device Interface: 8 x 10G PoE++ ports (100Mbps/1Gbps/2.5Gbps/10Gbps), 4 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators, Reset button
- Data Transfer Rate:
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- SFP: 2Gbps (full duplex)
- SFP+: 20Gbps (full duplex)
- Switch fabric: 240Gbps
- RAM buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 178.56Mpps (64-byte packet size)
- Management: CLI (Telnet / SSHv2) limited administration only, HTTP/HTTPS (SSL v2/3 TLS) Web based GUI, SNMP v1, v2c, v3, RMON v1, Static Unicast MAC Address, Enable/disable 802.3az Power Saving, LLDP and LLDP-MED, Virtual Cable Diagnostics Test, Dual image and configuration
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- MIB: RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet-like interface MIB, RFC 1493 bridge MIB
- Spanning Tree: IEEE 802.1d STP (Spanning Tree protocol), IEEE 802.1w RSTP (Rapid Spanning Tree protocol), IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
- Link Aggregation: Static Link Aggregation, 802.3ad Dynamic LACP
- Quality of Service (QoS): 802.1p Class of Service (CoS), DSCP (Differentiated Services Code Point), Bandwidth control per port, Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
- VLAN: 802.1Q Tagged VLAN, Dynamic GVRP, Up to 256 VLAN groups, ID Range 1-4094, Voice VLAN (10 user defined OUIs)
- Multicast: IGMP Snooping v1, v2, v3; MLD Snooping v1, v2; IGMP fast leave, up to 256 multicast entries
- Port Mirror: RX, TX, or Both; Many to one
- Access Control: 802.1X Port-Based Network Access Control, RADIUS, TACACS+; Local Dial-In User Authentication; DHCP Snooping; Loopback Detection; Trusted Host; Denial of Service (DoS); IP MAC port binding; Block unknown multicast
- ACL IPv4 L2-L4 & IPv6: MAC Address, VLAN ID, Ether Type (IPv4 only), IP Protocol 0-255, TCP/UDP Port 1-65535, 802.1p, TOS (IPv4 only), IPv4 Address and Mask (IPv4 only), IPv6 Address and Prefix Length (IPv6 only)
- Layer 3 Features: IPv4 / IPv6 static routing, ARP table (up to 128 entries), Inter-VLAN routing
- IP interfaces: Up to 6
- Routing table entries: Up to 32 (IPv4 / IPv6)
- Power Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 57.4W (No PD connected)
- PoE budget: 720W
- 802.3bt: Up to 90W per port; PoE++ Pins 3, 4, 5, 6 for power+ and pins 1, 2, 7, 8 for power-PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power- (mode A); PD auto classification; Over current/short circuit protection; PD alive check; Fast PoE; Perpetual PoE
- Fans: 3 x Smart fans
- Max. fan noise level: 51.1 dBA
- MTBF: 161,000 hours @ 25° C
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Operating Humidity: Max. 90% non-condensing
- Dimensions: 330 x 228 x 44mm (12.99 x 8.98 x 1.73 in.)
- Weight: 2.875kg (6.33 lbs.)
- Certifications: CE, FCC, UL
- Warranty: Lifetime Manufacturer’s Warranty
Technical Specifications
The TRENDnet 12-Port 10G PoE++ Web Smart Switch with 4 10G SFP+ ports is a powerful, all-in-one solution for traffic management and power distribution designed for large-scale SMB networks and power-hungry surveillance systems running off PoE, PoE+ or PoE++. With an easy-to-use web interface, administrators can optimize and manage network traffic and bandwidth allocation; create VLANs and VLAN groups; set up QoS for traffic priority on essential systems; create per-port bandwidth controls, and more—even from remote locations.
Perpetual PoE eliminates downtime on connected hardware by providing constant electrical connection, even when data is interrupted on system reboots or updating, preventing critical data loss or equipment malfunction. PoE Alive Check automatically recovers disconnected devices and re-connects unresponsive devices like cameras—ideal for automatically readdressing cameras in places prone to power failures or network interruptions like rural areas or isolated properties.
Featuring eight 10GBASE-T PoE++ ports and four 10G fiber SFP+ ports, users and installers can incorporate long-distance, high-speed copper connections for 10G networks; expanding and optimizing SMB networks and long-range, multi-zone security systems like industrial properties or multi-unit commercial security systems.
TPE-7124SBF Specs and Features
- Standards: IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt
- Device Interface: 8 x 10G PoE++ ports (100Mbps/1Gbps/2.5Gbps/10Gbps), 4 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators, Reset button
- Data Transfer Rate:
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2Gbps (full duplex)
- 2.5G Ethernet: 5Gbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- SFP: 2Gbps (full duplex)
- SFP+: 20Gbps (full duplex)
- Switch fabric: 240Gbps
- RAM buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 178.56Mpps (64-byte packet size)
- Management: CLI (Telnet / SSHv2) limited administration only, HTTP/HTTPS (SSL v2/3 TLS) Web based GUI, SNMP v1, v2c, v3, RMON v1, Static Unicast MAC Address, Enable/disable 802.3az Power Saving, LLDP and LLDP-MED, Virtual Cable Diagnostics Test, Dual image and configuration
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- MIB: RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet-like interface MIB, RFC 1493 bridge MIB
- Spanning Tree: IEEE 802.1d STP (Spanning Tree protocol), IEEE 802.1w RSTP (Rapid Spanning Tree protocol), IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
- Link Aggregation: Static Link Aggregation, 802.3ad Dynamic LACP
- Quality of Service (QoS): 802.1p Class of Service (CoS), DSCP (Differentiated Services Code Point), Bandwidth control per port, Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
- VLAN: 802.1Q Tagged VLAN, Dynamic GVRP, Up to 256 VLAN groups, ID Range 1-4094, Voice VLAN (10 user defined OUIs)
- Multicast: IGMP Snooping v1, v2, v3; MLD Snooping v1, v2; IGMP fast leave, up to 256 multicast entries
- Port Mirror: RX, TX, or Both; Many to one
- Access Control: 802.1X Port-Based Network Access Control, RADIUS, TACACS+; Local Dial-In User Authentication; DHCP Snooping; Loopback Detection; Trusted Host; Denial of Service (DoS); IP MAC port binding; Block unknown multicast
- ACL IPv4 L2-L4 & IPv6: MAC Address, VLAN ID, Ether Type (IPv4 only), IP Protocol 0-255, TCP/UDP Port 1-65535, 802.1p, TOS (IPv4 only), IPv4 Address and Mask (IPv4 only), IPv6 Address and Prefix Length (IPv6 only)
- Layer 3 Features: IPv4 / IPv6 static routing, ARP table (up to 128 entries), Inter-VLAN routing
- IP interfaces: Up to 6
- Routing table entries: Up to 32 (IPv4 / IPv6)
- Power Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 57.4W (No PD connected)
- PoE budget: 720W
- 802.3bt: Up to 90W per port; PoE++ Pins 3, 4, 5, 6 for power+ and pins 1, 2, 7, 8 for power-PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power- (mode A); PD auto classification; Over current/short circuit protection; PD alive check; Fast PoE; Perpetual PoE
- Fans: 3 x Smart fans
- Max. fan noise level: 51.1 dBA
- MTBF: 161,000 hours @ 25° C
- Operating Temperature: 0° – 50° C (32° – 122° F)
- Operating Humidity: Max. 90% non-condensing
- Dimensions: 330 x 228 x 44mm (12.99 x 8.98 x 1.73 in.)
- Weight: 2.875kg (6.33 lbs.)
- Certifications: CE, FCC, UL
- Warranty: Lifetime Manufacturer’s Warranty
