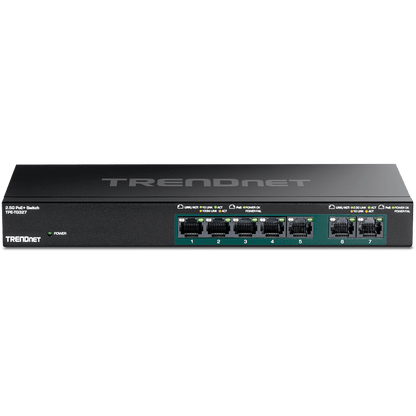

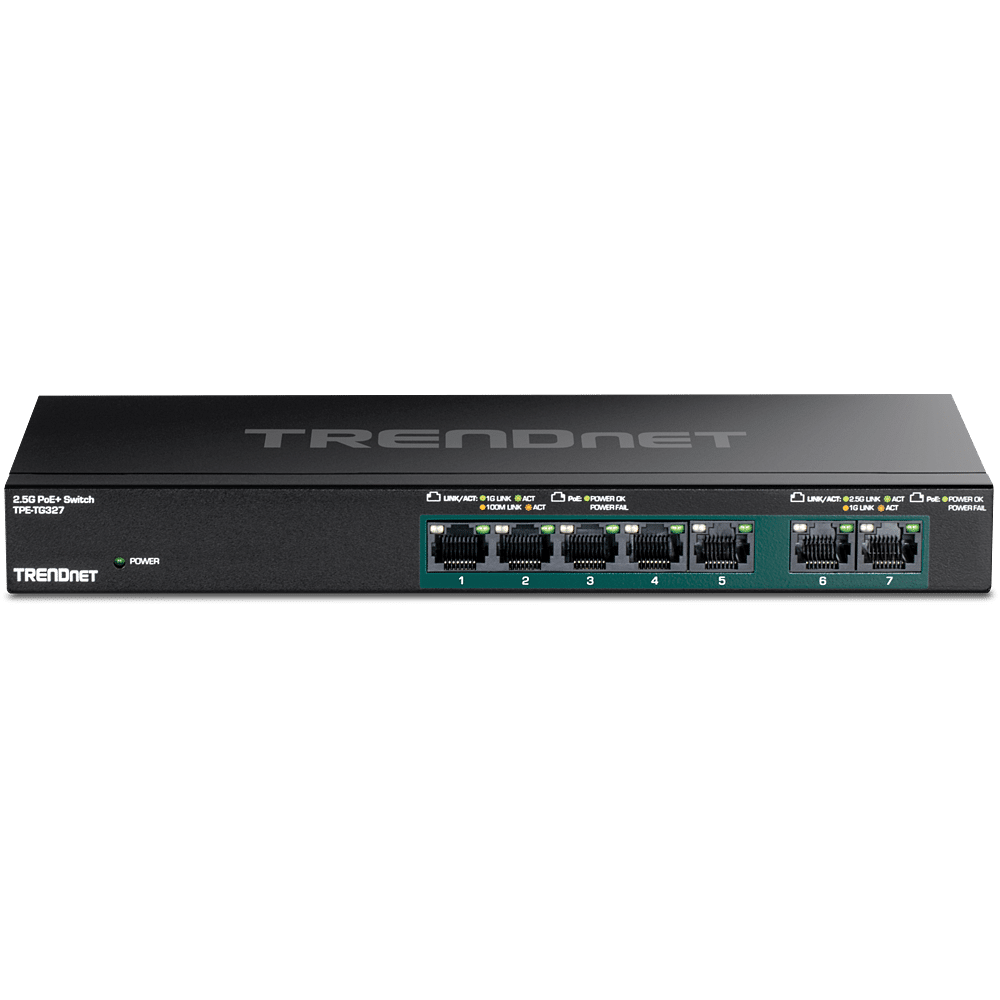

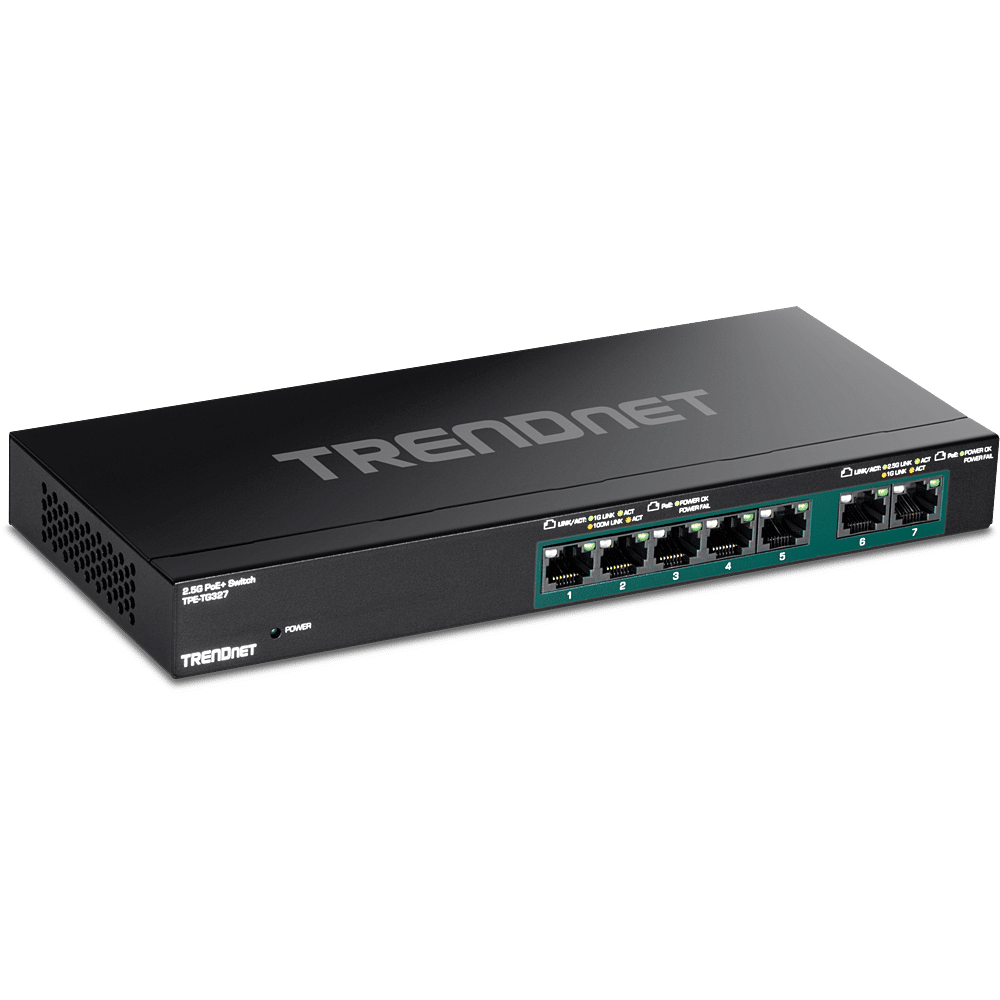

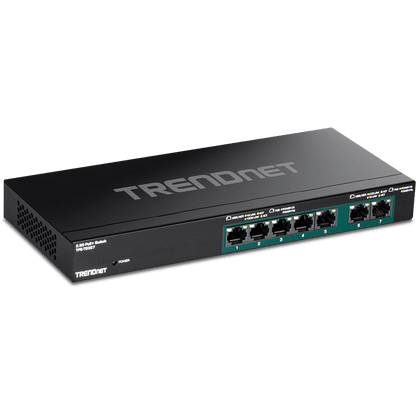

TRENDnet TPE-TG327 7-Port Multi-Gig PoE+ Switch
TRENDnet TPE-TG327 7-Port Multi-Gig Switch Features
- 5 x 1G RJ-45 PoE+ ports
- 2 x 2.5G RJ-45 PoE+ ports
- 70W PoE power budget
- Compatible with existing Cat5e or better cabling
- 2.5G ports are backward compatible with 100/1000Mbps devices
- Fanless design for silent operation
- Easy installation, no configuration required
- Supports IEEE 802.3af/at
- IEEE 802.3bz (2.5G) compliant
- 20Gbps switching capacity
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TPE-TG327 7-Port Multi-Gig Switch Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
- Device Interface
- 5 x Gigabit PoE+ ports
- 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- LED indicators
- Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- 2.5 Gigabit: 5Gbps (full duplex)
- Performance
- Data RAM Buffer: 384KB
- Switch Capacity: 20Gbps
- MAC Address Table: 2K entries
- Forwarding rate: 14.88Mpps (64-byte packet size)
- Jumbo Frame: 15KB
- Special Features
- Wall mountable
- Fanless
- Power
- Input: 100 – 240V AC, 50/60Hz
- Output: 55V/1.67A
- Max. consumption: 8W (no PD)
- PoE
- PoE budget: 70W
- PoE Mode A: Pins 1, 2, 3, and 6 for power
- Over current protection
- Short circuit protection
- MTBF
- 830,917 hours
- Operating Temperature
- 0° – 50° C (32° – 122° F)
- Operating Humidity
- Max. 90% non-condensing
- Dimensions
- 286 x 102 x 27mm (11.3 x 4 x 1 in.)
- Weight
- 0.9kg (2 lbs.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Warranty*
- Package Contents
- TPE-TG327
- Quick Installation Guide
- Power brick (55V, 1.67A)
- Power cord (1.8m /6 ft.)
