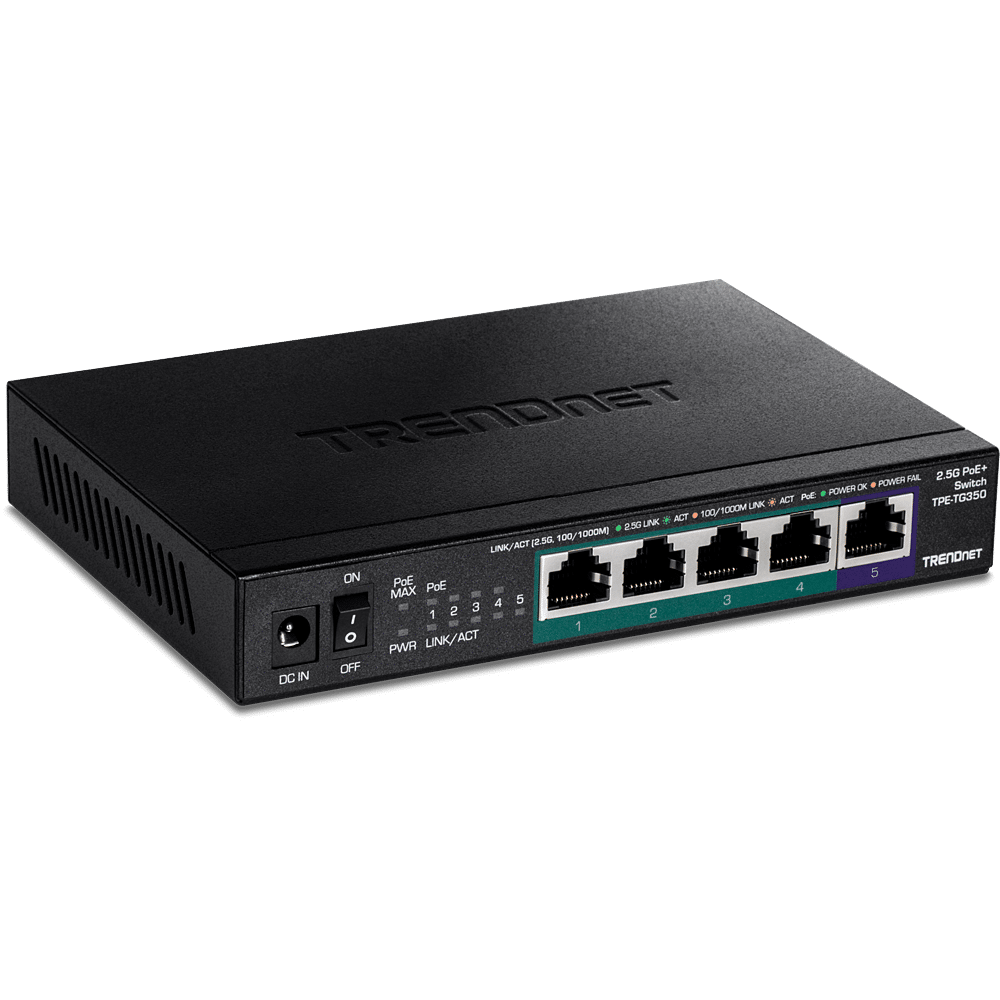

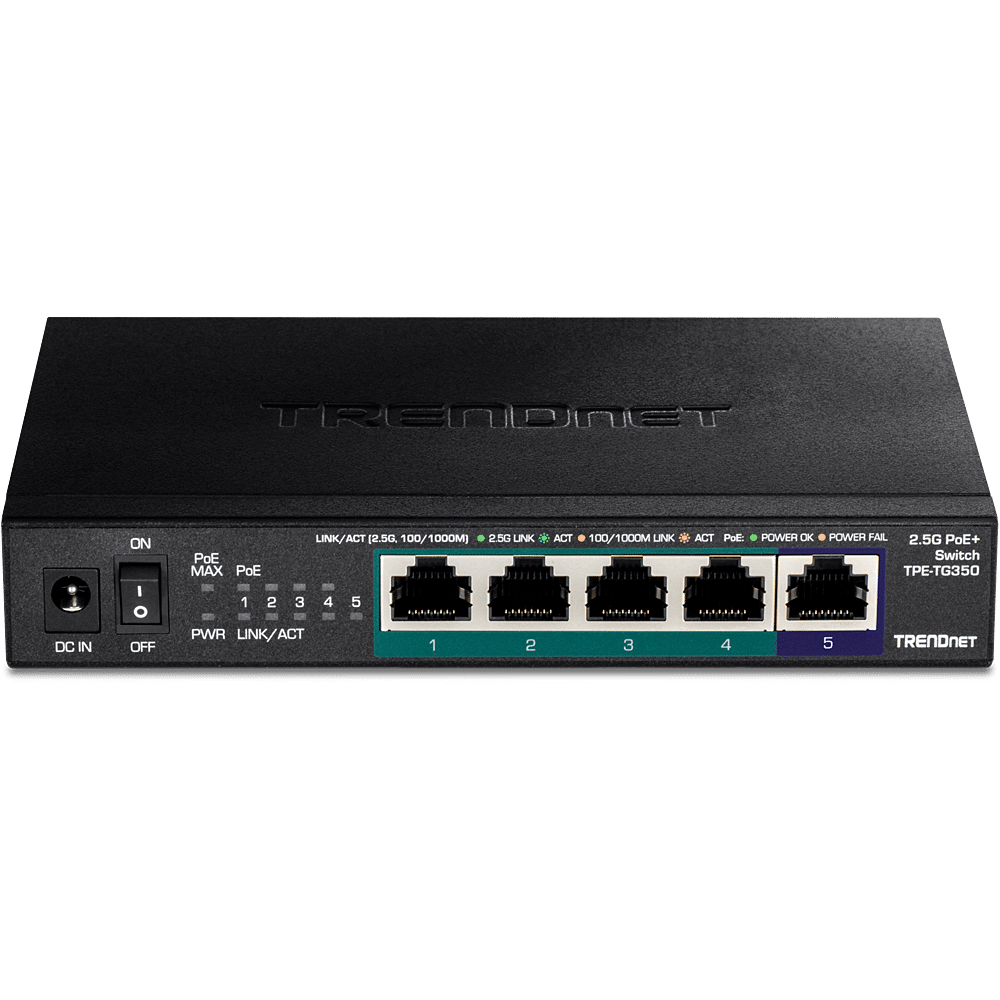

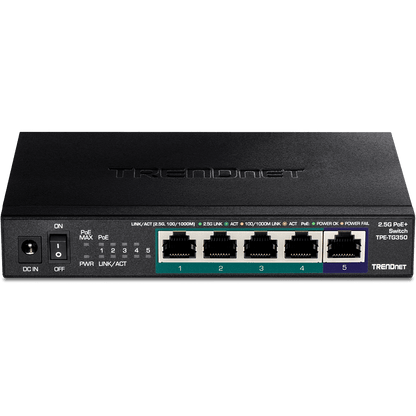

TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch Overview
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE+ switches are cost-effective solutions to increase your network’s throughput. A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
- 5 x 2.5GBASE-T ports
- 55W PoE power budget
- IEEE 802.3bz (2.5G) compliant
- Supports IEEE 802.3at/af PoE standards
- Backward compatible with 10/100/1000Mbps devices
- 25Gbps switching capacity
- Fanless design eliminates noise
- Wall mountable for installation flexibility
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TPE-TG350 5-Port Unmanaged Features
- 2.5G Ports
- Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- Wall Mountable
- The 2.5G PoE+ switches feature a metal housing with a convenient wall mountable design for greater installation flexibility.
- PoE+
- A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
- Easy Installation
- No configuration is needed, simply connect network devices to the 2.5G PoE+ switch
- PoE+
- A 55W total PoE power budget supplies up to four PoE+ devices with up to 30W per port
- Fanless
- Fanless design lowers energy consumption and eliminates operating noise
- Housing Design
- Sturdy metal housing
- Wall Mountable
- Features a convenient wall mountable design for greater installation flexibility
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance
- LED Indicators
- LED indicators convey port status
TRENDnet TPE-TG350 5-Port Unmanaged Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
- Device Interface
- 4 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- 1 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps)
- LED indicators
- Data Transfer Rate
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- 2.5 Gigabit: 5Gbps (full duplex)
- Performance
- Data RAM Buffer: 1.5MB
- Switch Capacity: 25Gbps
- MAC Address Table: 16K entries
- Forwarding rate: 18.6Mpps (64-byte packet size)
- Jumbo Frame: 12KB
- Special Features
- Wall-Mountable
- Fanless
- Power
- Input: 100 – 240V AC, 50/60Hz
- Output: 55V/1.3A
- Max. consumption: 7.83W (no PD)
- PoE
- PoE budget: 55W
- PoE Mode A: Pins 1, 2, 3, and 6 for power
- Over current protection
- Short circuit protection
- MTBF
- 830,917 hours
- Operating Temperature
- 0° – 40° C (32° – 104° F)
- Operating Humidity
- Max. 90% non-condensing
- Dimensions
- 160 x 110 x 25mm (6.29 x 4.33 x 0.98 in.)
- Weight
- 0.9kg (2 lbs.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Warranty*
- Package Contents
- TPE-TG350
- Quick Installation Guide
- Power Brick (55V, 1.3A)
- Power Cord (1.5m /4.9 ft.)
Technical Specifications
TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch Overview
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE+ switches are cost-effective solutions to increase your network’s throughput. A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
- 5 x 2.5GBASE-T ports
- 55W PoE power budget
- IEEE 802.3bz (2.5G) compliant
- Supports IEEE 802.3at/af PoE standards
- Backward compatible with 10/100/1000Mbps devices
- 25Gbps switching capacity
- Fanless design eliminates noise
- Wall mountable for installation flexibility
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
TRENDnet TPE-TG350 5-Port Unmanaged Features
- 2.5G Ports
- Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- Wall Mountable
- The 2.5G PoE+ switches feature a metal housing with a convenient wall mountable design for greater installation flexibility.
- PoE+
- A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.
- Easy Installation
- No configuration is needed, simply connect network devices to the 2.5G PoE+ switch
- PoE+
- A 55W total PoE power budget supplies up to four PoE+ devices with up to 30W per port
- Fanless
- Fanless design lowers energy consumption and eliminates operating noise
- Housing Design
- Sturdy metal housing
- Wall Mountable
- Features a convenient wall mountable design for greater installation flexibility
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance
- LED Indicators
- LED indicators convey port status
TRENDnet TPE-TG350 5-Port Unmanaged Specifications
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
- Device Interface
- 4 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- 1 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps)
- LED indicators
- Data Transfer Rate
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- 2.5 Gigabit: 5Gbps (full duplex)
- Performance
- Data RAM Buffer: 1.5MB
- Switch Capacity: 25Gbps
- MAC Address Table: 16K entries
- Forwarding rate: 18.6Mpps (64-byte packet size)
- Jumbo Frame: 12KB
- Special Features
- Wall-Mountable
- Fanless
- Power
- Input: 100 – 240V AC, 50/60Hz
- Output: 55V/1.3A
- Max. consumption: 7.83W (no PD)
- PoE
- PoE budget: 55W
- PoE Mode A: Pins 1, 2, 3, and 6 for power
- Over current protection
- Short circuit protection
- MTBF
- 830,917 hours
- Operating Temperature
- 0° – 40° C (32° – 104° F)
- Operating Humidity
- Max. 90% non-condensing
- Dimensions
- 160 x 110 x 25mm (6.29 x 4.33 x 0.98 in.)
- Weight
- 0.9kg (2 lbs.)
- Certifications
- CE
- FCC
- Warranty
- Lifetime Warranty*
- Package Contents
- TPE-TG350
- Quick Installation Guide
- Power Brick (55V, 1.3A)
- Power Cord (1.5m /4.9 ft.)
