About the product

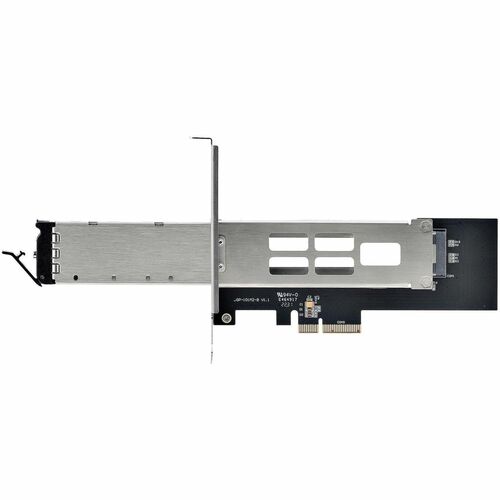

A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation

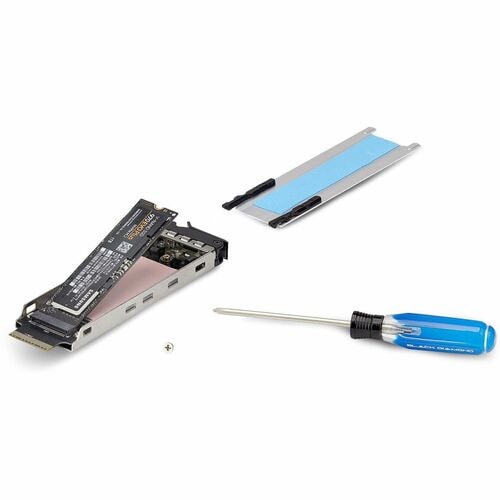

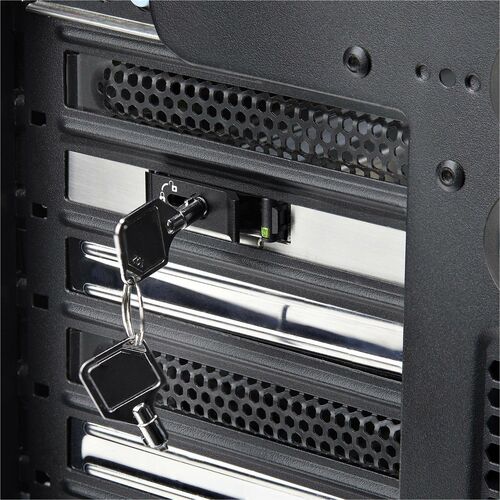

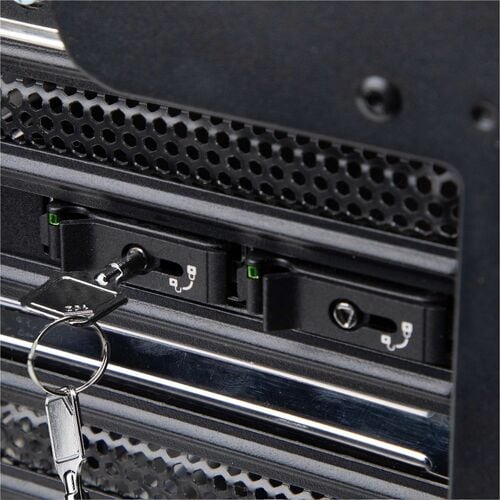

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance

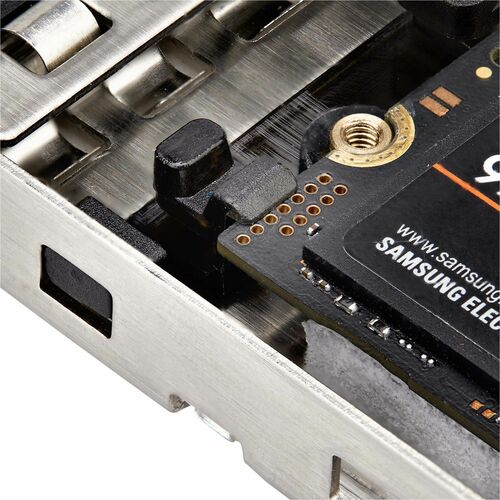

The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive.
Hot-Swappable
When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.
- ADDITIONAL DRIVE TRAY: Use with M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE for additional hot-swapable drives; Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Capable of reaching high-performance read/write speeds up to 64Gbps
- TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.)
- PREMIUM BUILD: Tray features thermal pads and aluminum cover to aid heat dissipation; Anti-vibration springs on the drive tray reduce vibration; Optional drive mounting screw for stability
- COMPATIBILITY: No drivers or software required and works on any operating system including Windows, Windows Server, Linux; Requires base product of M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE to be used; Not compatible with M.2 SATA drives
- HOT SWAP: This additional drive tray offers flexibility and convenience when working with multiple drives; PCIe hot swap support is dependent on the motherboard, check with the board manufacturer to confirm support
Technical Specifications
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe 4.0 |
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Hot Swappable Bays | Yes |
| Software | |
| Operating System Supported | Linux |
| Windows | |
| Technical Information | |
| Maximum Data Transfer Rate | 64 Gbit/s |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | 0 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | TRM2REMOVABLEPCIE |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | M.2 NVMe SSD Drive Tray |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 1.27 oz (36 g) |
| Height | 0.47" (12 mm) |
| Width | 1.34" (34 mm) |
| Depth | 4.88" (124 mm) |
| Product Color | Silver |
| Black | |
| Color Family | Dual Color |
| Product Material | Aluminum |
