Chief Thinstall Medium 18" Extension Single Monito

Name: Chief Thinstall Medium 18" Extension Single Monito
Brand: Chief
SKU: AC188650
Price: 530.17 CAD
Availability: OutOfStock

$530.17 CAD

~~$593.79 CAD~~ $530.17 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Chief Thinstall Medium 18" Extension Single Monitor Arm Wall Mount - For Displays 32-65" - Black - Chief Thinstall Medium 18" Extension Single Arm Display Mount - For Displays 32-65" - Black

VPN:TS318TU SKU:AC188650 UPC: 92197Z

Supports the screen size of 65\" (1651 mm)Sustains a maximum load capacity of 75 lb (34019.43 g)

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Chief Thinstall Medium 18" Extension Single Monito

About the product

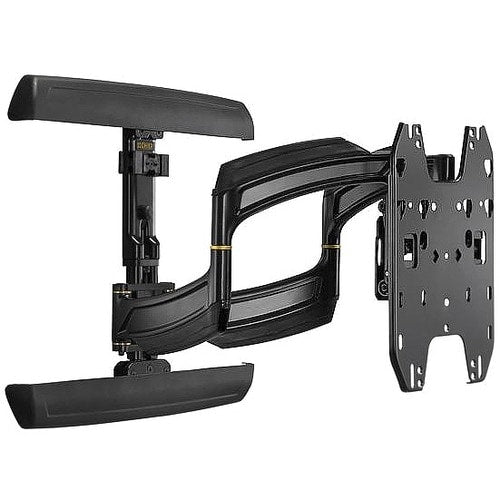

The Chief TV wall mount allows for perfect flat panel display placement and extends up to 18 for viewing from any angle while remaining low-profile in home position. The screen of this dual arm mount can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look for this tv mount

Supports the screen size of 65 (1651 mm)Sustains a maximum load capacity of 75 lb (34019.43 g)

Technical Specifications

Miscellaneous
Additional Information	Ultra Low Profile Sleek design collapses to 1.3" (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma Extends up to 18" (457 mm) Full extension maximizes viewing potential Centris low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles Centerless Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation Orientation: Landscape Solution Type: Universal Tilt: +,- 15
Package Contents	1 x Main Assembly 1 x Wall Rail 1 x Right Upright 1 x Left Upright 1 x Top Interface Support 1 x Bottom Interface Support 2 x Wall Rail Cover 1 x Rag Screw Cover 1 x Bumper 1 x Latch Spacer 2 x Long Adhesive 4 x Short Adhesive Mounting Hardware
Compatibility	LCD Screen LED Screen Plasma Screen
Country of Origin	China
Recycled	Yes
Post-consumer-waste%	30%
General Information
Product Type	Mounting Arm
Manufacturer Part Number	TS318TU
Manufacturer Website Address	http://www.legrand.com
Manufacturer	Legrand Group
Product Model	TS318TU
Product Name	Thinstall Wall Display Mount with Dual Swing - For monitors 32-65"
Product Line	Thinstall
Brand Name	Chief
Physical Characteristics
Form Factor	Wall Mountable
Height	17.20" (436.88 mm)
Width	22.60" (574.04 mm)
Depth	1.30" (33.02 mm)
VESA Mount Compatible	Yes
Mounting Pattern	100 x 100
	600 x 400
Product Color	Black
Color Family	Black
Product Information
Device Supported	TV
	Display
	Flat Panel Display
	Monitor
Features	Cable Management
	Tilt
	Extendable
	Centris
Maximum Load Capacity	75 lb (34019.43 g)
Minimum Screen Size Supported	32" (812.80 mm)
Maximum Screen Size Supported	65" (1651 mm)
Maximum Adjustable Height	1" (25.40 mm)
Maximum Adjustable Depth	18.20" (462.28 mm)
Number of Displays Supported	1
Mount Profile	Low Profile
Height Adjustable	Yes
