Chief Thinstall Medium 25" Extension Dual Monitor

Name: Chief Thinstall Medium 25" Extension Dual Monitor
Brand: Chief
SKU: AC783047
Price: 760.61 CAD
Availability: InStock

$760.61 CAD

~~$874.70 CAD~~ $760.61 CAD

-13% OFF Ask for quote

Shipping calculated at checkout.

Chief Thinstall Medium 25" Extension Dual Monitor Arm Wall Mount - For Displays 42-75" - Black - Chief Thinstall Large 25" Extension Dual Arm Display Mount - For Displays 42-75" - Black

VPN:TS525TU SKU:AC783047 UPC: 92199Z

Supports the screen size of 75\" (1905 mm)Sustains a maximum load capacity of 125 lb (56699.05 g)

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Chief Thinstall Medium 25" Extension Dual Monitor

About the product

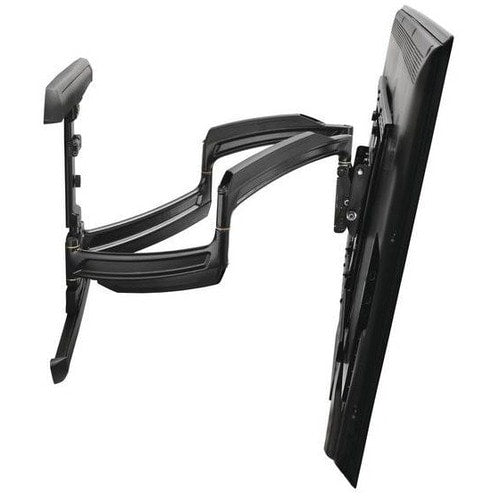

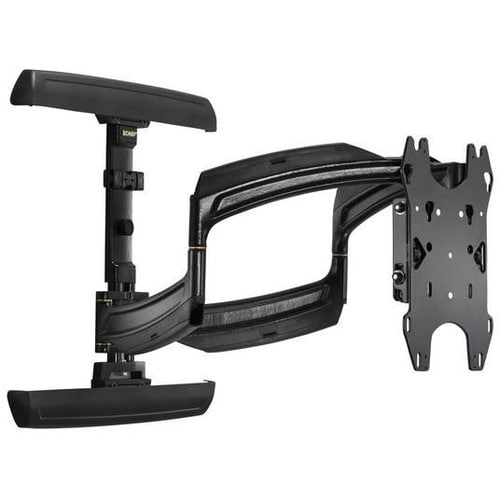

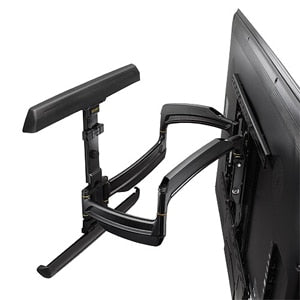

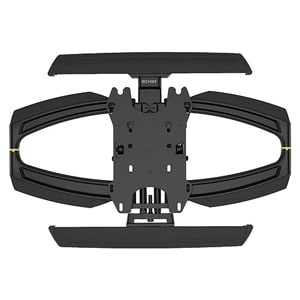

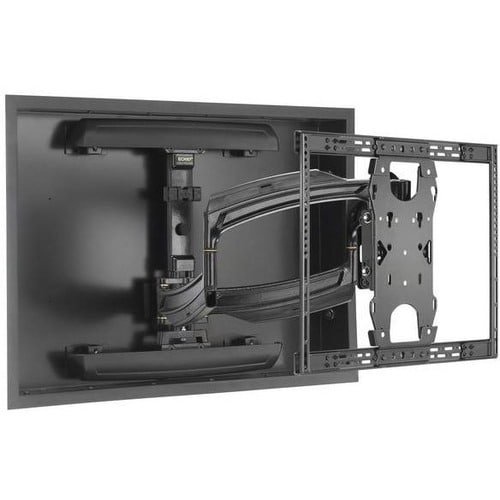

The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25 for viewing from any angle while remaining low-profile in home position. The screen can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look

Supports the screen size of 75 (1905 mm)Sustains a maximum load capacity of 125 lb (56699.05 g)

Technical Specifications

Physical Characteristics
Form Factor	Wall Mountable
Depth	1.50" (38.10 mm)
VESA Mount Compatible	Yes
Mounting Pattern	100 x 100
	800 x 400
Product Color	Black
Color Family	Black
General Information
Product Type	Mounting Arm
Manufacturer Part Number	TS525TU
Manufacturer Website Address	http://www.legrand.com
Manufacturer	Legrand Group
Product Model	TS525TU
Product Name	Thinstall TS525TU Swing Arm Wall Mount
Product Line	Thinstall
Brand Name	Chief
Miscellaneous
Additional Information	Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma Extends up to 25" (635 mm) Full extension maximizes viewing potential Centris low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles Centerless Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
Application/Usage	Flat Panel Display
Package Contents	1 x Main Assembly 1 x Wall Rail 1 x Right Upright 1 x Left Upright 1 x Top Interface Support 1 x Bottom Interface Support 1 x Cable Cover 1 x Wall Cover Mounting Hardware
Compatibility	LCD Screen LED Screen Plasma Screen
Country of Origin	China
Recycled	Yes
Post-consumer-waste%	30%
Assembly Required	Yes
Product Information
Device Supported	Monitor
	Flat Panel Display
	Display
Features	Swing
	Adjustable
	Extendable
	Centris
	Cable Management
	Tilt
Maximum Load Capacity	125 lb (56699.05 g)
Minimum Screen Size Supported	42" (1066.80 mm)
Maximum Screen Size Supported	75" (1905 mm)
Maximum Adjustable Height	1" (25.40 mm)
Maximum Adjustable Depth	25" (635 mm)
Number of Displays Supported	2
Mount Profile	Low Profile
Height Adjustable	Yes
