About the product

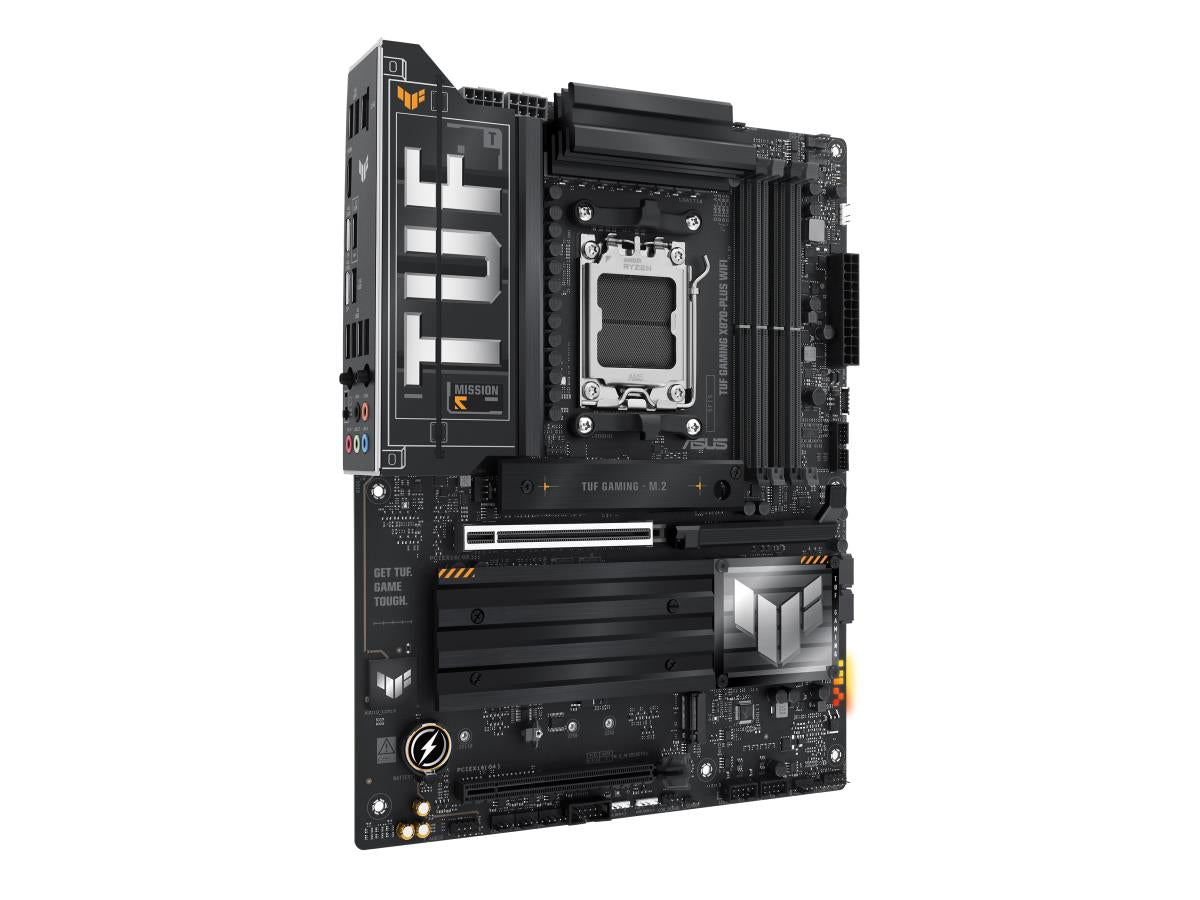

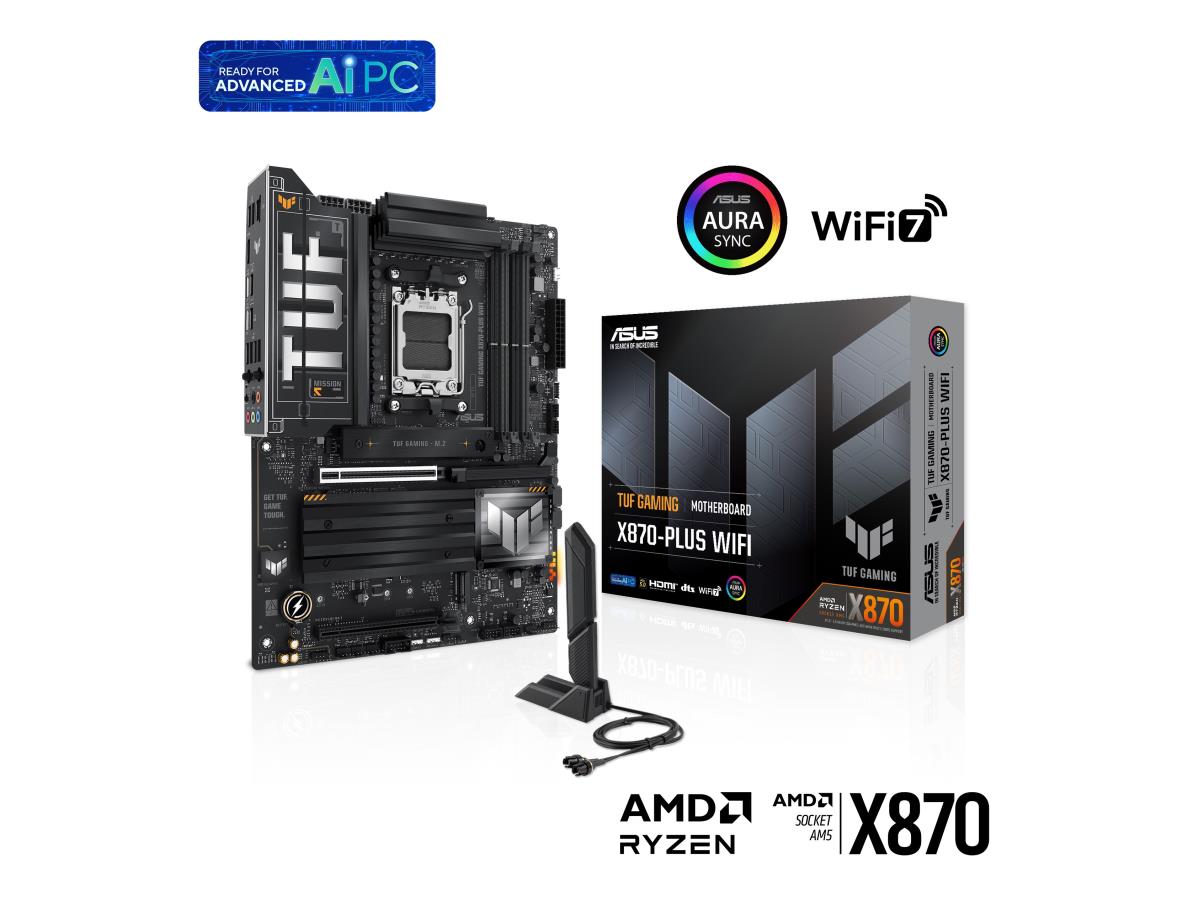

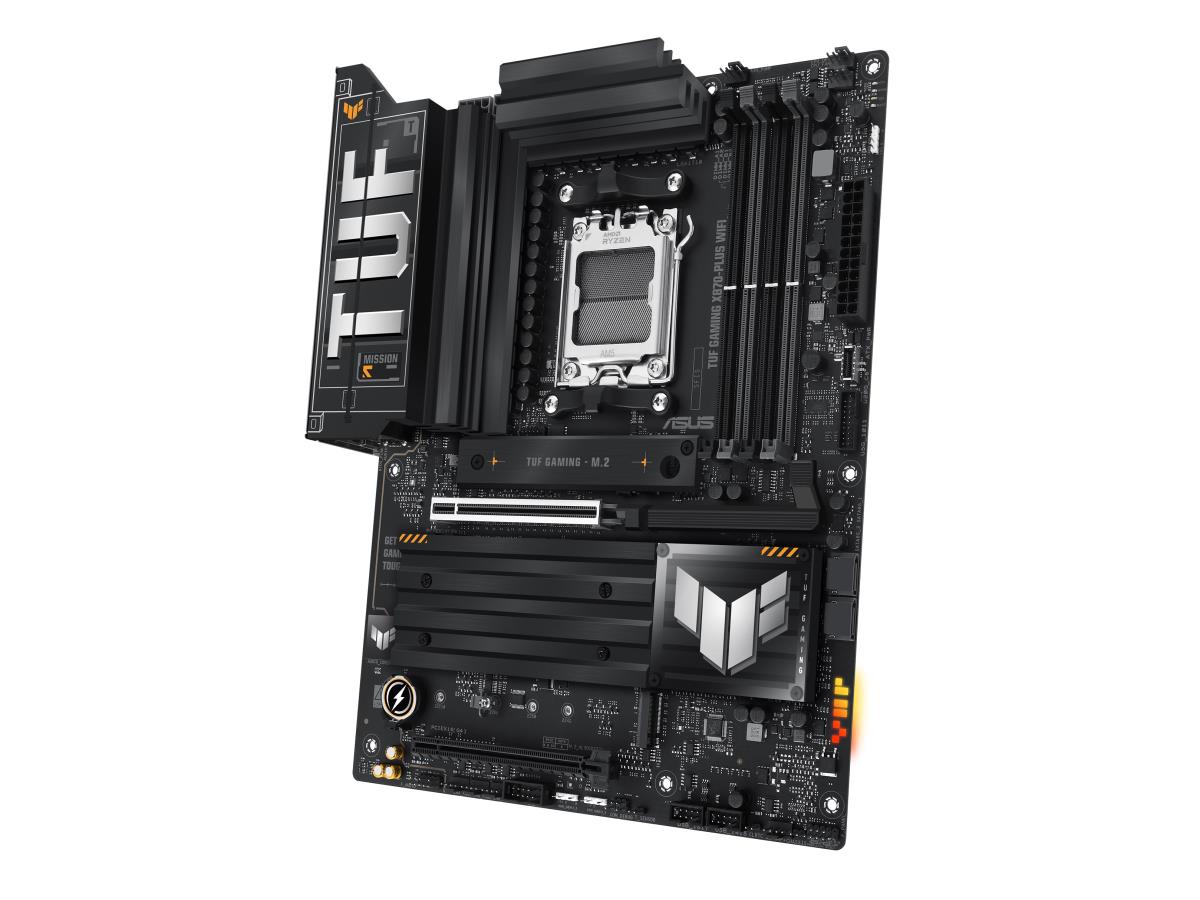

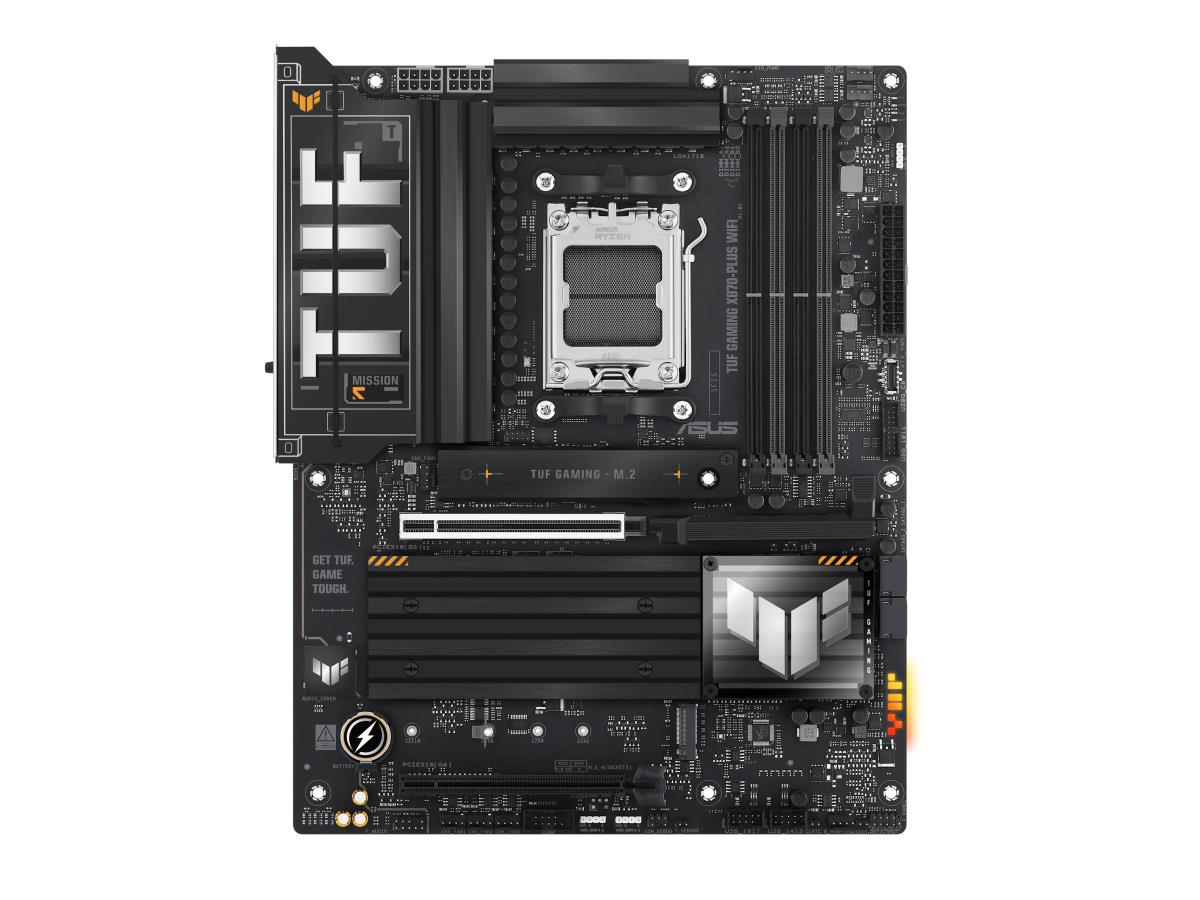

ASUS TUF GAMING X870-PLUS WIFI is equipped with outstanding features, including 8-layer PCB, 16+2+1, 80A SPS power stages, DDR5, PCIe x16 with Q-release supports PCIe 5.0, four M.2 slots including two M.2 slots support PCIe 5.0, Wi-Fi 7, Realtek 2.5Gb Ethernet, HDMI, dual USB4 (40Gbps) ports support, USB 20Gbps Type-C
Technical Specifications
| Primary Information | |
| Mainboard Form Factor: | ATX |
| Compatible Processors: | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* |
| Audio Output: | Realtek ALC1220P |
| Processor | |
| Processor / Socket Type: | Socket AM5 |
| Memory | |
| RAM / Technology: | DDR5 |
| Data Integrity Check: | ECC; Non-ECC |
| RAM / Max Supported Size: | 256 GB |
| Expansion | |
| Expansion Slots Total (Free): | AMD Ryzen 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode).AMD Ryzen 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode).AMD X870 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode). |
| Interfaces & Connections: | 2 x USB4 (40Gbps) (2 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A)4 x USB 5Gbps ports (4 x Type-A)1 x USB 2.0 port (1 x Type-A) 1 x HDMI port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks |
| Dimensions&Miscellaneous | |
| Width: | 12 Inch |
| Depth: | 9.6 Inch |
| Service&Support | |
| Service & Support Type: | 3 Years |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
