About the product

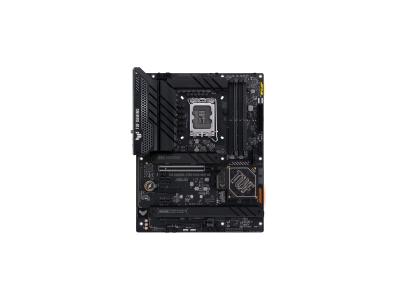

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
Technical Specifications
| Dimensions&Miscellaneous | |
| Model: | TUF GAMING Z790-PLUS WIFI |
| Width: | 12 Inch |
| Depth: | 9.6 Inch |
| Primary Information | |
| Mainboard Form Factor: | ATX |
| Mainboard / Chipset Type: | Intel Z790 |
| Compatible Processors: | 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Audio Output: | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| Networking Type: | 1 x Intel 2.5Gb Ethernet; TUF LANGuard |
| Features: | ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS); ESD Guards; TUF LANGuard; Overvoltage Protection; Safeslot; Stainless-Steel Back I/O; ASUS Q-Design: M.2 Q-Latch; PCIe Slot Q-Release; Q-DIMM; Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); Q-Slot; ASUS Thermal Solution: M.2 heatsink; VRM heatsink design; ASUS EZ DIY: CPU Socket lever protector; ProCool; Pre-mounted I/O shield; SafeDIMM; AURA Sync: Aura RGB header; Addressable Gen 2 headers |
| Processor | |
| Processor / Socket Type: | FCLGA1700 |
| Memory | |
| RAM / Technology: | DDR4 |
| Data Integrity Check: | Non-ECC |
| RAM / Max Supported Size: | 128 GB |
| Storage | |
| Controller Interface Type: | SATA 6 Gb/s; M.2 |
| Expansion | |
| Expansion Slots Total (Free): | Intel 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots |
| Interfaces & Connections: | DisplayPort; HDMI; USB 3.2 Gen 2x2 port (1 x USB Type-C); USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); USB 3.2 Gen 1 ports (4 x Type-A); Audio jacks |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
