About the product

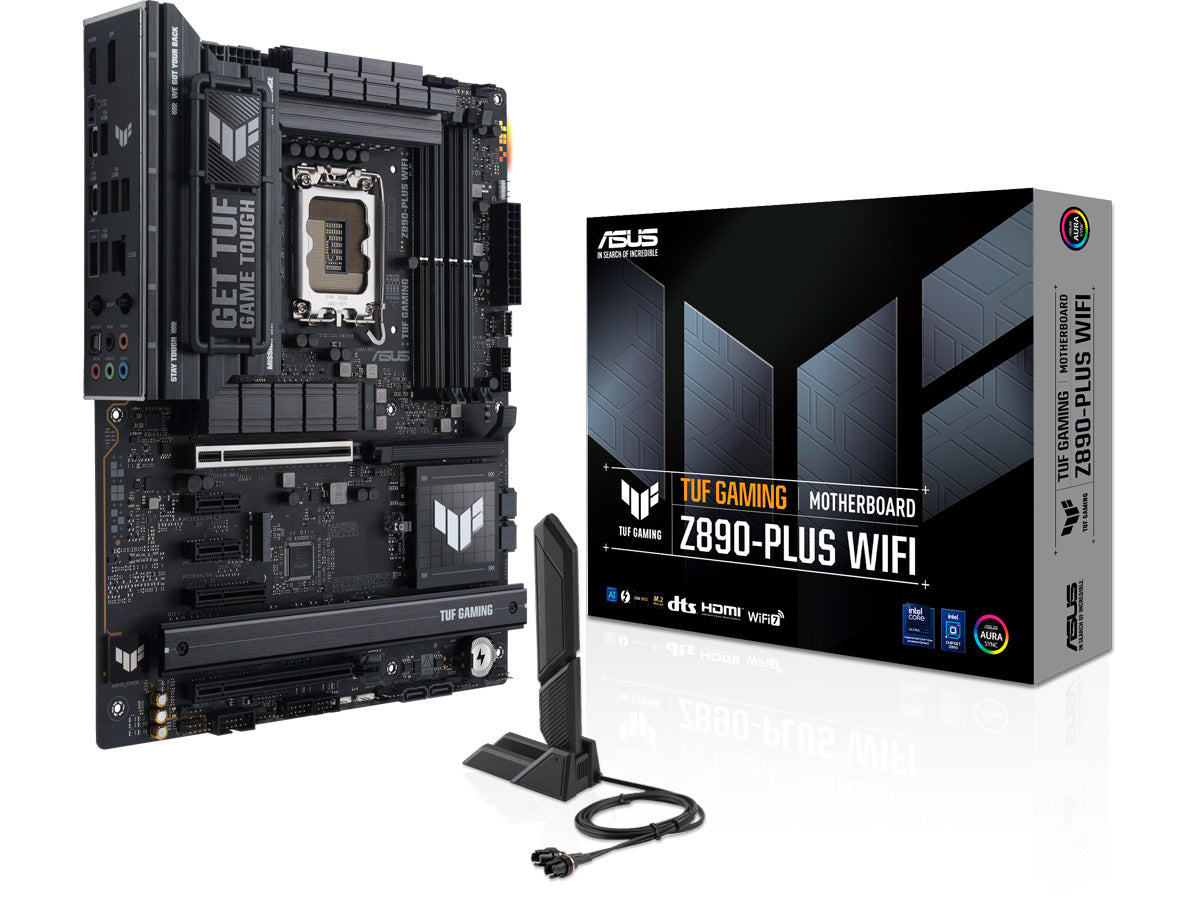

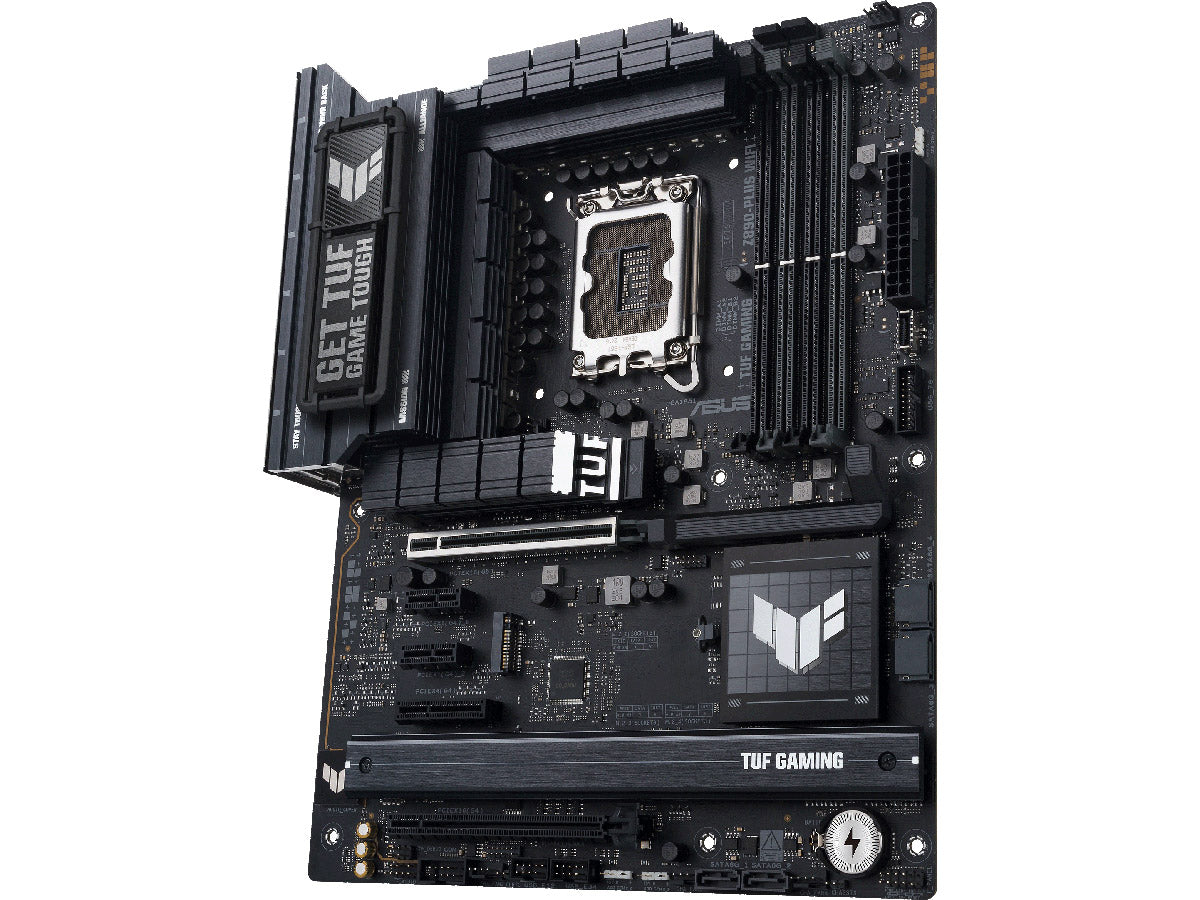

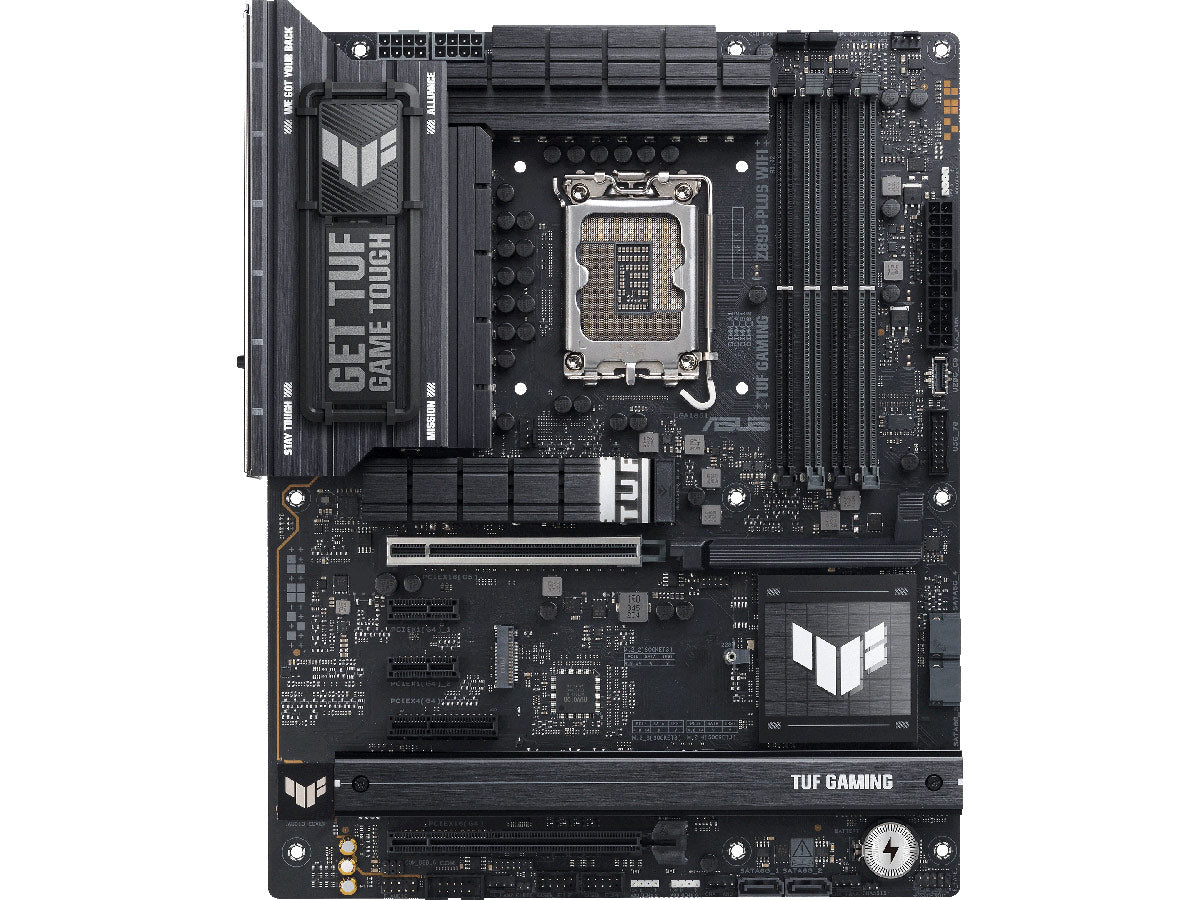

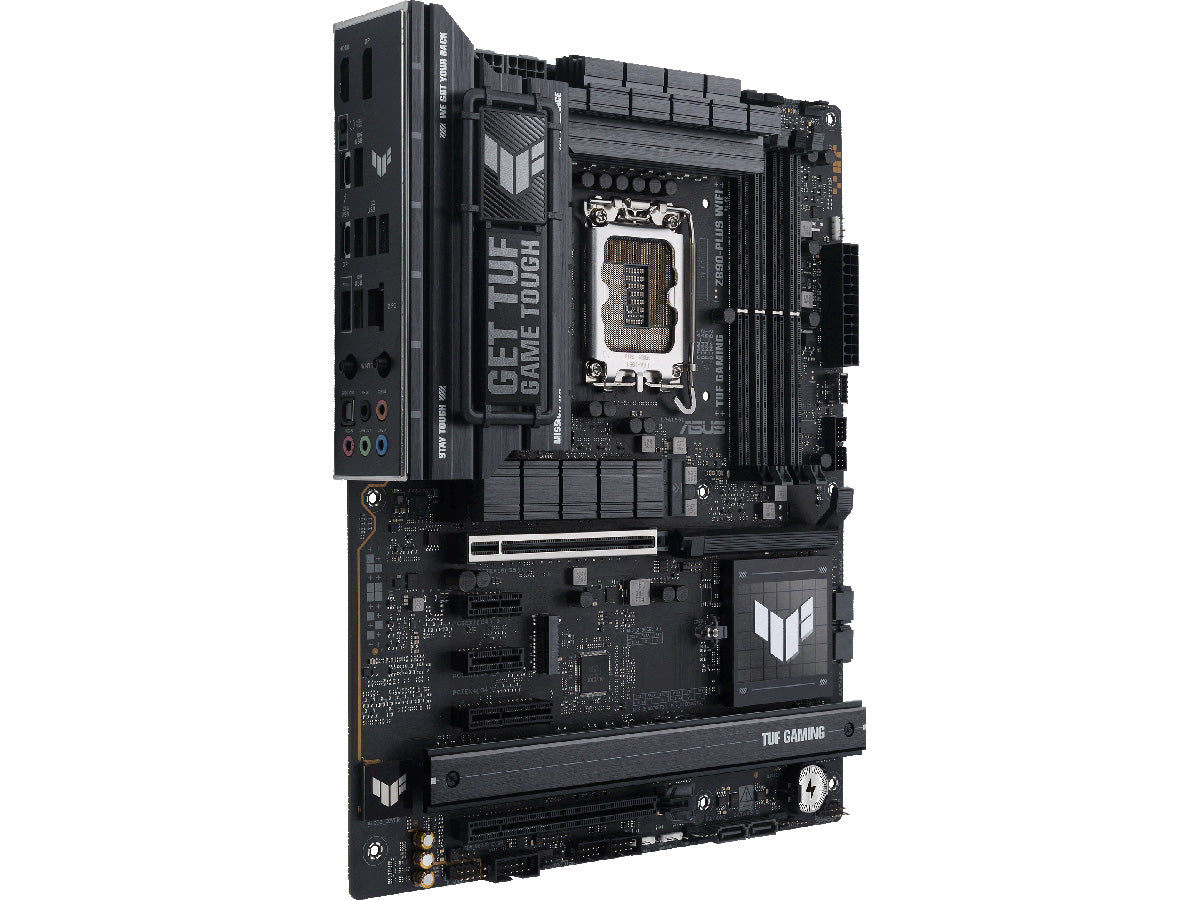

ASUS TUF GAMING Z890-PLUS WIFI is equipped with outstanding features, including 16+1+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 x16 SafeSlot with PCIe slot Q-Release, four M.2 slots including one M.2 slot supports PCIe 5.0, Wi-Fi 7, Intel 2.5Gb Ethernet, DisplayPort, HDMI, Thunderbolt 4 USB Type-C port, USB 20Gbps Type-C
Technical Specifications
| Primary Information | |
| Mainboard Form Factor: | ATX |
| Compatible Processors: | Intel Core Ultra Processors(series 2) |
| Memory | |
| RAM / Technology: | DDR5 |
| Data Integrity Check: | Non-ECC |
| RAM / Max Supported Size: | 192 GB |
| Video | |
| Video Interface: | HDMI; DisplayPort |
| Expansion | |
| Expansion Slots Total (Free): | Intel Core Ultra Processors(series 2)*1 x PCIe 5.0 x16 slotIntel Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x4 slot2 x PCIe 4.0 x1 slots |
| Interfaces & Connections: | 1 x Thunderbolt 4 USB Type-C port1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)3 x USB 10Gbps ports (3 x Type-A)3 x USB 5Gbps ports (3 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack button |
| Dimensions&Miscellaneous | |
| Width: | 12 Inch |
| Depth: | 9.6 Inch |
| Service&Support | |
| Service & Support Type: | 3 Years |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
