About the product

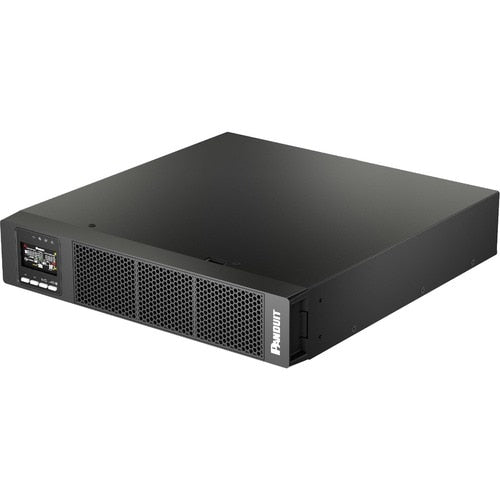

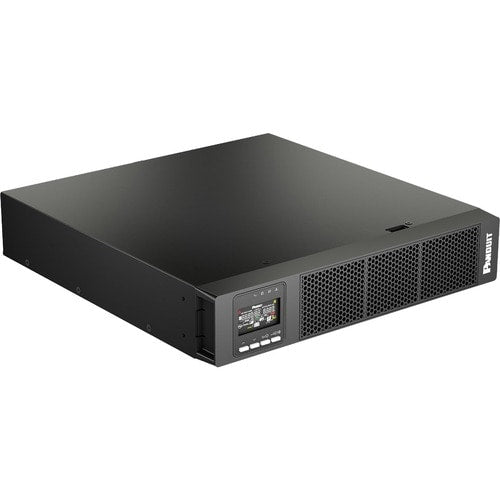

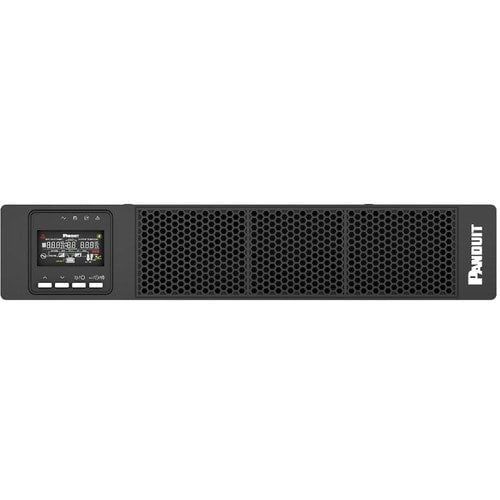

The Panduit®SmartZone™Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Works adequately in situations where the supply is prone to sags and surges
- 1.35 kW load capacity - backup power for your valuable electronics
- 1.50 kVA load capacity provides sufficient backup during power failures
- Up to 7.50 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Thermal Dissipation | 142 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Battery Information | |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time (Half Load) | 19 Minute |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Battery Characteristics | Hot-swappable |
| Replaceable Battery | Yes |
| DC System Voltage | 48 V DC |
| Typical Battery Recharge Time | 4 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | U02N11L |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Model | U02N11L |
| Product Name | SmartZone UPS 1-3kVA Lithium Ion |
| Brand Name | Panduit |
| Physical Characteristics | |
| Weight (Approximate) | 17.10 kg |
| Form Factor | Tower/Rack Convertible |
| Compact | |
| Rack Height | 2U |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 18.11" (460 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 110 V AC | |
| 115 V AC | |
| 120 V AC | |
| 125 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Technical Information | |
| Application/Usage | IT Equipment |
| Enterprise | |
| Data Center | |
| Computer | |
| Edge Computing | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| AVR | Yes |
| Transfer Time | 6 ms |

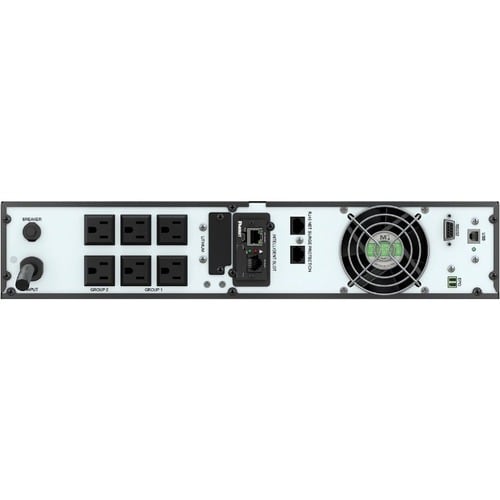

| Receptacle Detail | 6 x NEMA 5-15R |
