About the product
The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.

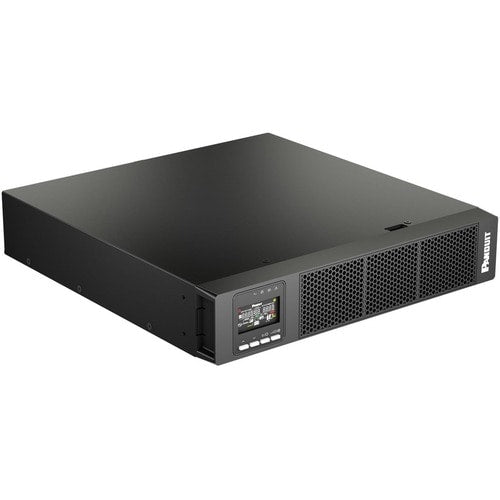

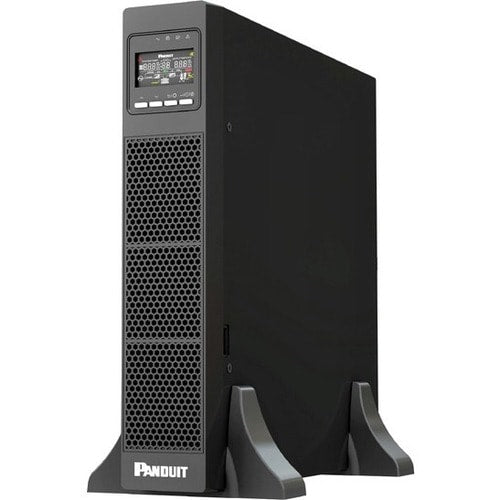

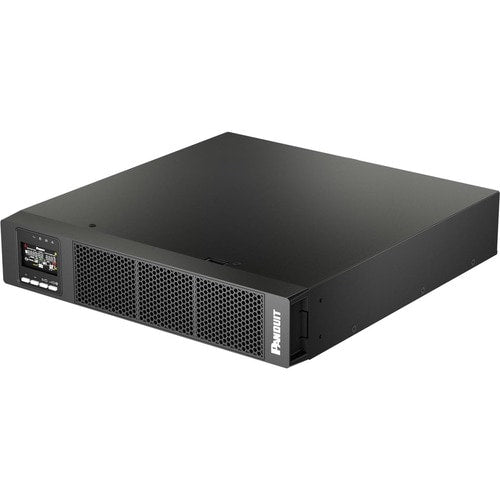

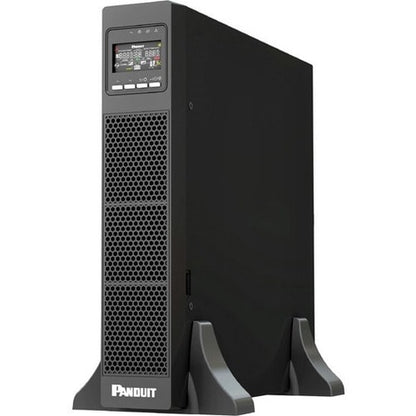

- Rack/Tower convertible: Support rack/tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: (110-300Vac Online models) (75-146Vac Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5% for Online models and up to 97% for Line-interactive models, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs
Technical Specifications
| Controls/Indicators | |

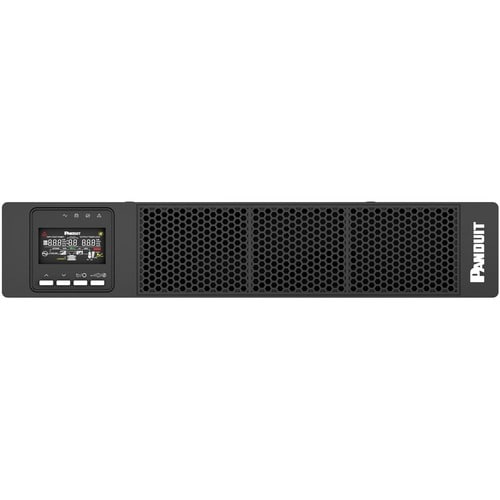

| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Management | |
| Alarm | Yes |
| Warranty | |
| Additional Warranty Information | 5 Years (UPS & Battery) |
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Thermal Dissipation | 334 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Package Contents |
|
| Software Included | SmartZone Cloud Ready |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Battery Information | |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| DC System Voltage | 76.8 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | U03N11L |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Model | U03N11L |
| Product Name | SmartZone U03N11L 3000VA Rack/Tower/Compact UPS |
| Product Line | SmartZone |
| Brand Name | Panduit |
| Physical Characteristics | |
| Weight (Approximate) | 31 kg |
| Form Factor | Rack/Tower/Compact |
| Rail Mountable | |
| Rack Height | 2U |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 25.20" (640 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| 125 V AC | |
| 120 V AC | |
| 110 V AC | |
| 100 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Technical Information | |
| Application/Usage | Data Center |
| Enterprise | |
| Edge Computing | |
| IT Equipment | |
| Computer | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| NEMA L5-30R | |
| AVR | Yes |
| Transfer Time | 6 ms |

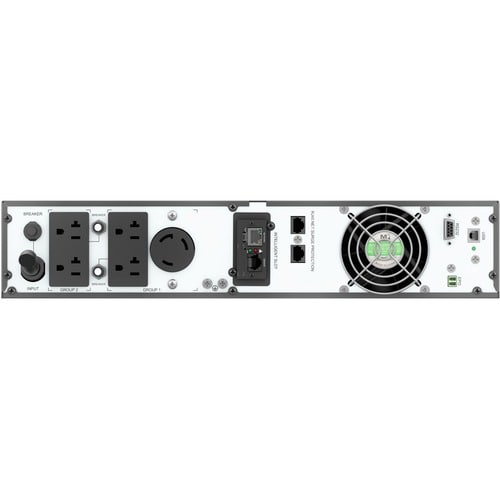

| Receptacle Detail | 2 x NEMA 5-20R |
| 1 x NEMA L5-30R |
