About the product

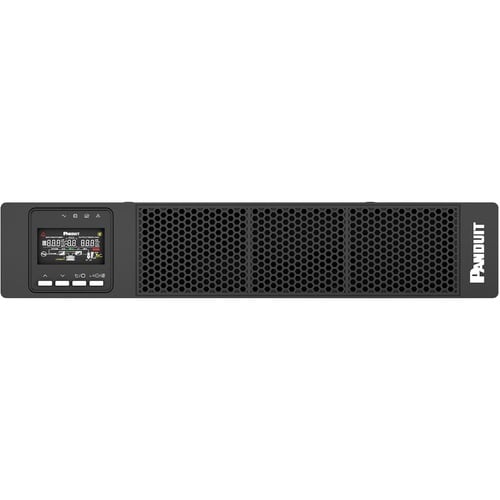

The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Management | |
| Alarm | Yes |
| Warranty | |
| Additional Warranty Information |
|
| Environmental Conditions | |
| Sound Emission | 55 dB |
| Thermal Dissipation | 801 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Package Contents |
|
| Software Included | SmartZone Cloud Ready |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | U03N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Model | U03N11V |
| Product Name | SmartZone U03N11V 3000VA Rack/Tower UPS |
| Product Line | SmartZone |
| Brand Name | Panduit |
| Physical Characteristics | |
| Weight (Approximate) | 56.66 lb (25700 g) |
| Form Factor | Rack/Tower |
| Rail Mountable | |
| Rack Height | 2U |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 23.62" (600 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 6 |
| Replaceable Battery | Yes |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 6 Hour |
| Backup/Run Time With External Battery Cabinet (Full Load) | 4.60 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 14.10 Minute |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| 120 V AC | |
| 125 V AC | |
| 115 V AC | |
| 100 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 100 V AC - 125 V AC |
| 55 V AC - 150 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Technical Information | |
| Application/Usage | IT Equipment |
| Enterprise | |
| Computer | |
| Data Center | |
| Edge Computing | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-20R | |
| AVR | Yes |
| Transfer Time | 0 ns |

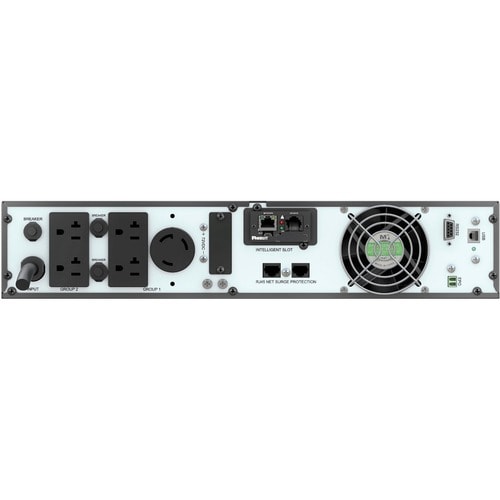

| Receptacle Detail | 1 x NEMA L5-30R |
| 4 x NEMA 5-20R |
