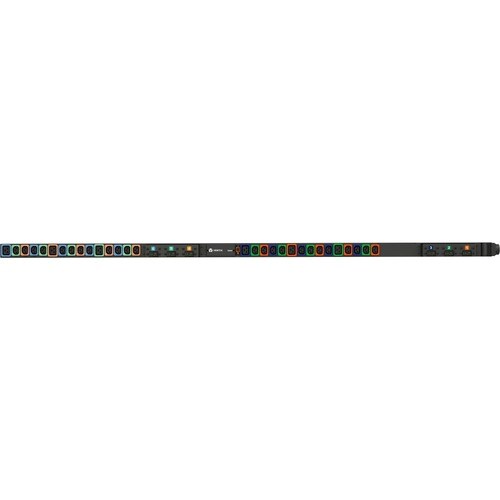

About the product
Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.
Benefits
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- Provide circuit protection and easy configuration for trouble-free access
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Technical Specifications
| Power Description | |
| Input Current | 32 A |
| Power Rating (Watt) | 22 kW |
| Physical Characteristics | |
| Length | 70" (1778 mm) |
| Mount Type | Cabinet-mountable |
| Rack-mountable | |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2.30" (58.42 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | U1073L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | DU00X4W1-30PN67-2S02A9K00-S-A |
| Product Name | rPDU DU00X4W1-30PN67-2S02A9K00-S-A 30-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Double Pole | |
| Phase | Single Phase/Three Phase |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Basic |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| 24 x U-Lock IEC 60320 C13 |
