About the product

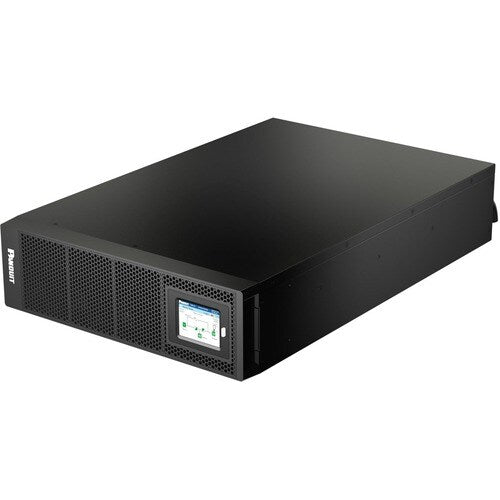

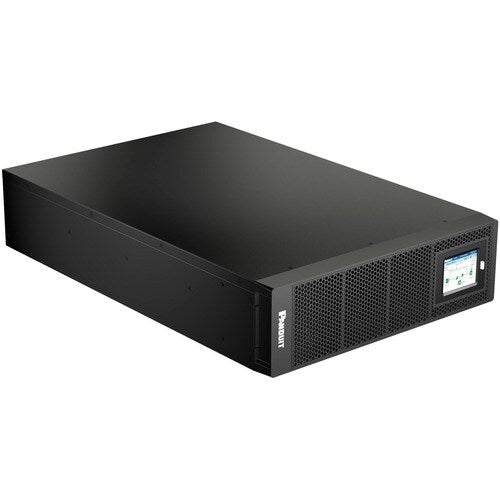

The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure.

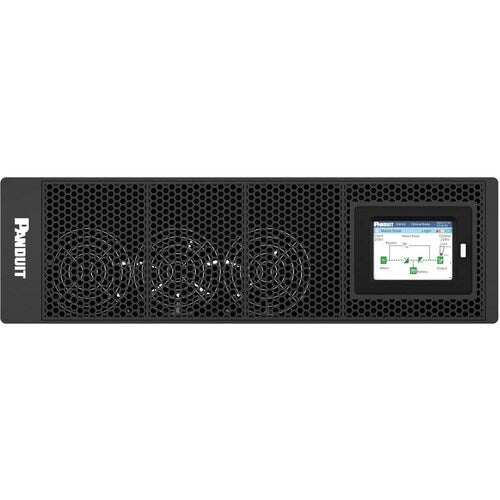

- Rack/Tower convertible: Supports rack/tower installation with rotatable colorful touchscreen LCD panel
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-280Vac covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 98%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum five external battery packs, extending the UPS backup running time
- Intelligent Battery Management: Three-stage battery charging method matching the most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Colorful LCD with cold start button and LED indicators |
| Management | |
| Alarm | Yes |
| Warranty | |
| Additional Warranty Information |
|

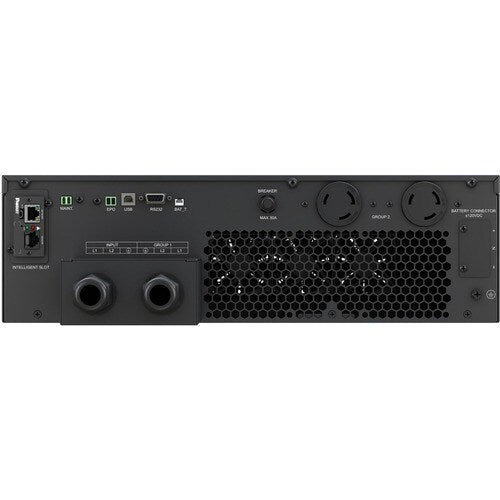

| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Sound Emission | 58 dB |
| Thermal Dissipation | 1985 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 87 kg |
| Form Factor | Rack/Tower/Rail |
| Rack Height | 6U |
| Height | 5.16" (131 mm) |
| Width | 17.32" (440 mm) |
| Depth | 26.22" (666 mm) |
| Product Color | Black |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | U10N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Model | U10N11V |
| Product Name | SmartZone U10N11V 10000VA Rack/Tower/Rail UPS |
| Product Line | SmartZone |
| Brand Name | Panduit |
| Battery Information | |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 20 |
| Backup/Run Time (Half Load) | 12.90 Minute |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Battery Characteristics | Valve-regulated/Maintenance-free/Hot-swappable |
| Replaceable Battery | Yes |
| DC System Voltage | 240 V DC |
| Typical Battery Recharge Time | 6 Hour |
| Technical Information | |
| Application/Usage | IT Equipment |
| Edge Computing | |
| Data Center | |
| Computer | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-30R |
| AVR | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-30R |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 185 V AC - 264 V AC |
| 110 V AC - 285 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
