About the product

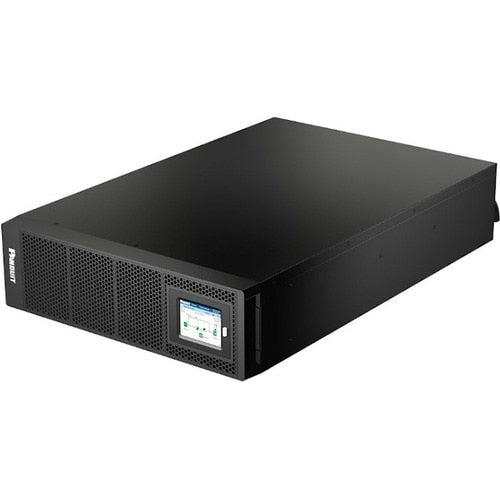

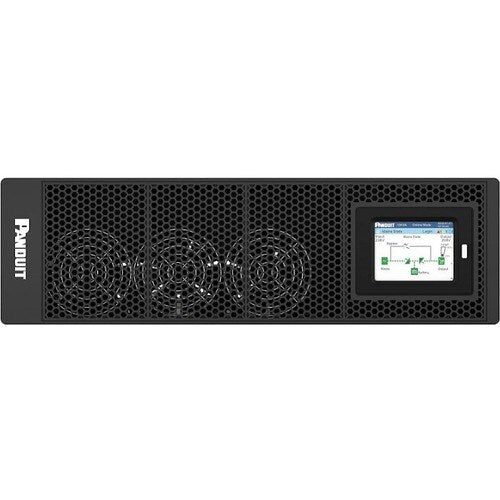

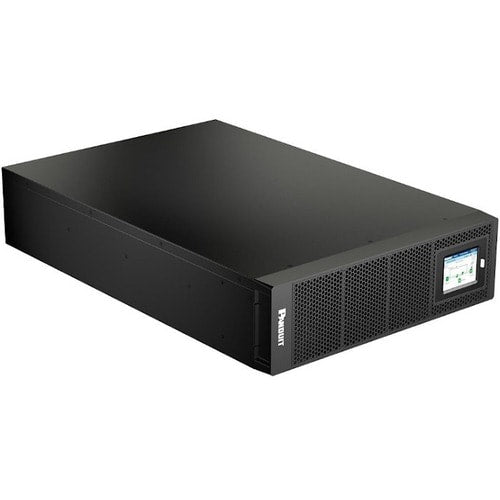

The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure.
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Warranty | |
| Additional Warranty Information |
|
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | UPS Alarm |

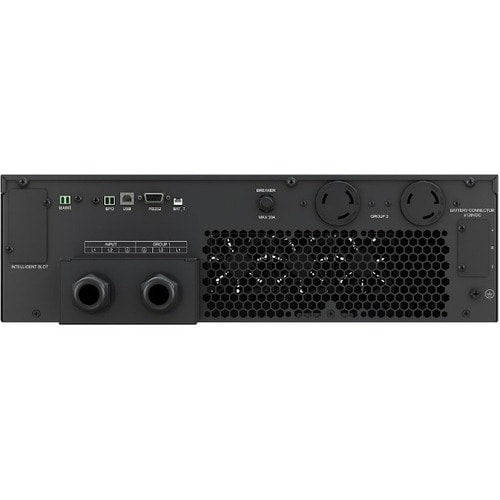

| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Sound Emission | 58 dB |
| Thermal Dissipation | 1985 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 87 kg |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 5.16" (131 mm) |
| Width | 17.32" (440 mm) |
| Depth | 26.22" (666 mm) |
| Product Color | Black |

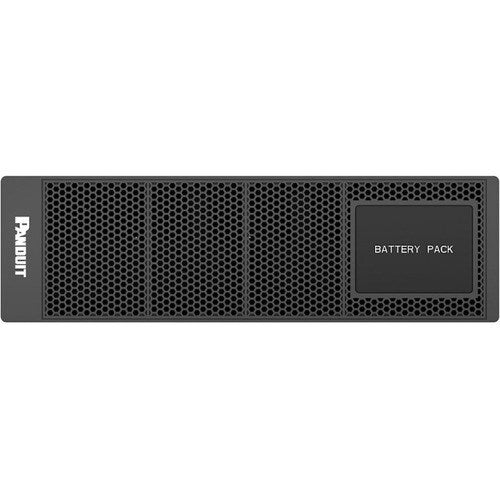

| Battery Information | |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 20 |
| Backup/Run Time (Half Load) | 12.90 Minute |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Battery Characteristics | Valve-regulated/Maintenance-free/Hot-swappable |
| Replaceable Battery | Yes |
| DC System Voltage | 240 V DC |
| Typical Battery Recharge Time | 6 Hour |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | U10S11V |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 Pack |
| Manufacturer | PANDUIT CORP |
| Product Model | U10S11V |
| Product Name | SmartZone U10S11V 10000VA Rack/Tower UPS |
| Product Line | SmartZone |
| Brand Name | Panduit |
| Technical Information | |
| Application/Usage | Edge Computing |
| Data Center | |
| Computer | |
| IT Equipment | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-30R |
| AVR | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-30R |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 208 V AC |
| 240 V AC | |
| Surge Energy Rating | 600 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 110 V AC - 285 V AC |
| 185 V AC - 264 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
