Eaton Tripp Lite Series Usb-A 3.2 Gen 1 Cl3-Rated Fiber Active Opt
Eaton Tripp Lite Series Usb-A 3.2 Gen 1 Cl3-Rated Fiber Active Opt
VPN:U330F-20M-G1 SKU:T843244 UPC:37332260383
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details

Recently Viewed
Eaton Tripp Lite Series Usb-A 3.2 Gen 1 Cl3-Rated Fiber Active Opt
Product information summary
About the product

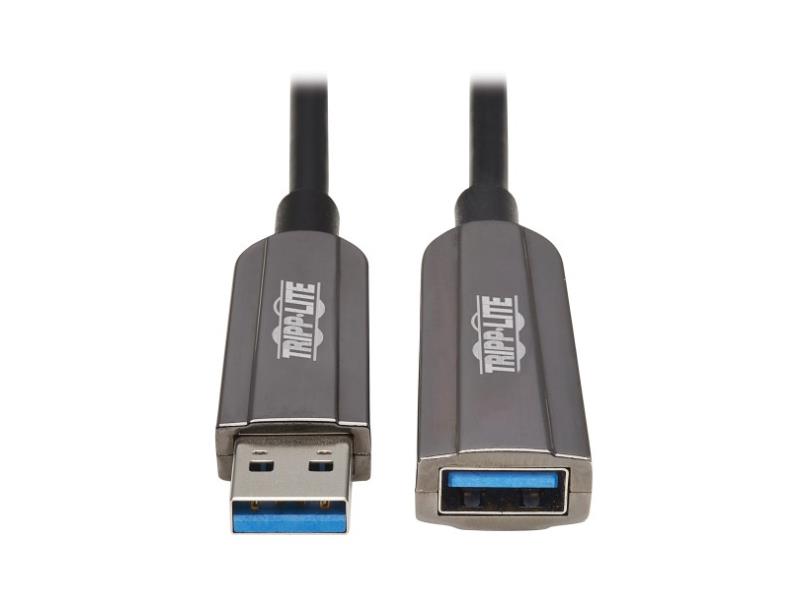

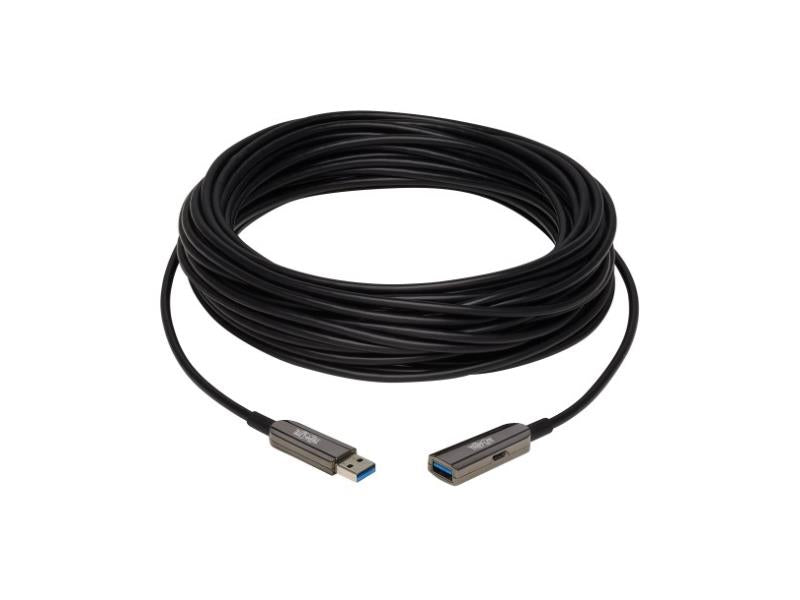

This USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 20 meters (65 feet). The U330F-20M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port.
You must first connect the USB-A male connector, then the USB-A female connector.

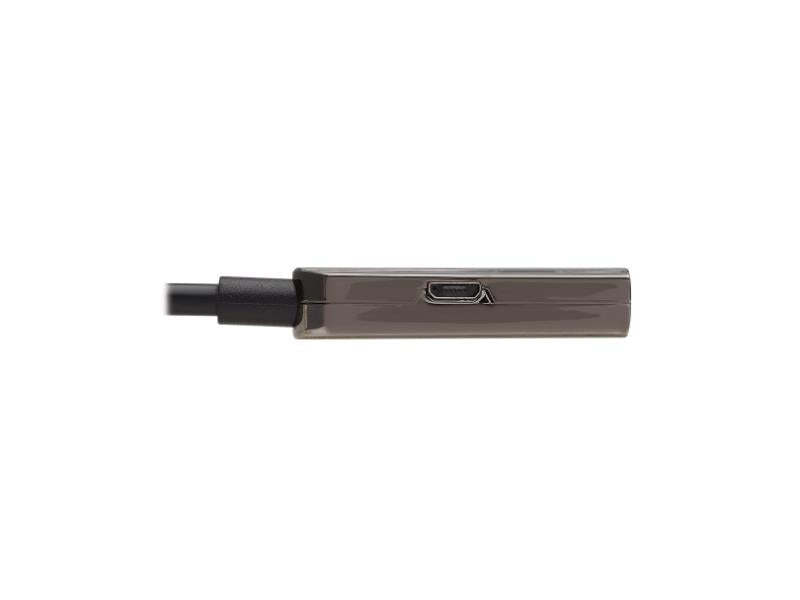

This cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable's USB Micro-B port to a laptop, hub or USB wall charger with the included cable.
This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-20M-G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits USB signals over longer distances than copper with no signal loss.
This long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it.
The PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-20M-G1 supports all major operating systems, including Windows, macOS and Linux.
Technical Specifications
| Primary Information | |
| Product Description: | Eaton Tripp Lite Series USB-A 3.2 Gen 1 CL3-Rated Fiber Active Optical Cable (AOC) - Extension/Repeater, A/A M/F, Black, 20 m - USB-C extension cable - 66 ft |
| Type: | USB-C extension cable |
| Features: | Active Optical Cable (AOC), USB bus power, outer diameter 4.6 mm, nickel plated shell |
| Length: | 66 ft |
| Connectors: | 9 pin USB Type A - male |
| Connectors (Second End): | 9 pin USB Type A - female ¦ 5 pin Micro-USB Type B - female |
| Compliant Standards: | USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1 |
| Color: | Black, light gray |
| Manufacturer Warranty: | 3-year warranty |
| General | |
| Type: | USB-C extension cable |
| Jacket Material: | Zinc alloy / PVC |
| American Wire Gauge (AWG): | 24 |
| Plated Connector: | Gold |
| Features: | Active Optical Cable (AOC), USB bus power, outer diameter 4.6 mm, nickel plated shell |
| Length: | 66 ft |
| Outside Diameter: | 0.18 in |
| Color: | Black, light gray |
| Connectivity | |
| Connectors: | 9 pin USB Type A - male |
| Connectors (Second End): | 9 pin USB Type A - female ¦ 5 pin Micro-USB Type B - female |
| Miscellaneous | |
| Included Accessories: | USB-A to micro-USB cable (1 m) |
| Compliant Standards: | USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1, RoHS, FCC, REACH, CL3 |
| Dimensions & Weight (Shipping) | |
| Service & Support: | 3-year warranty |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 39121440 |
