About the product

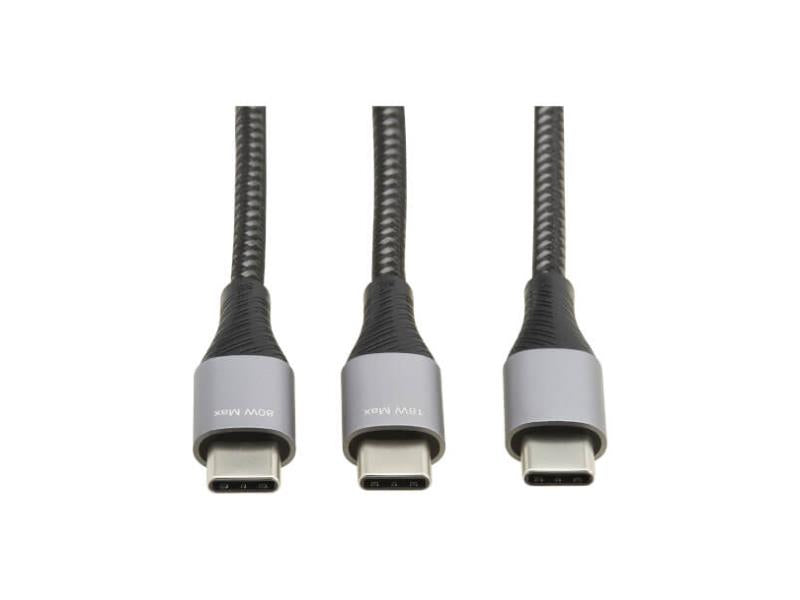

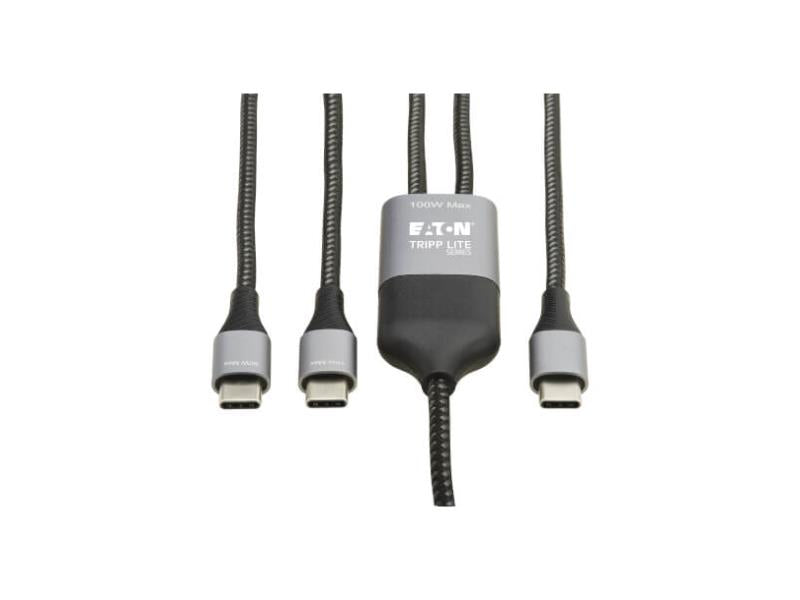

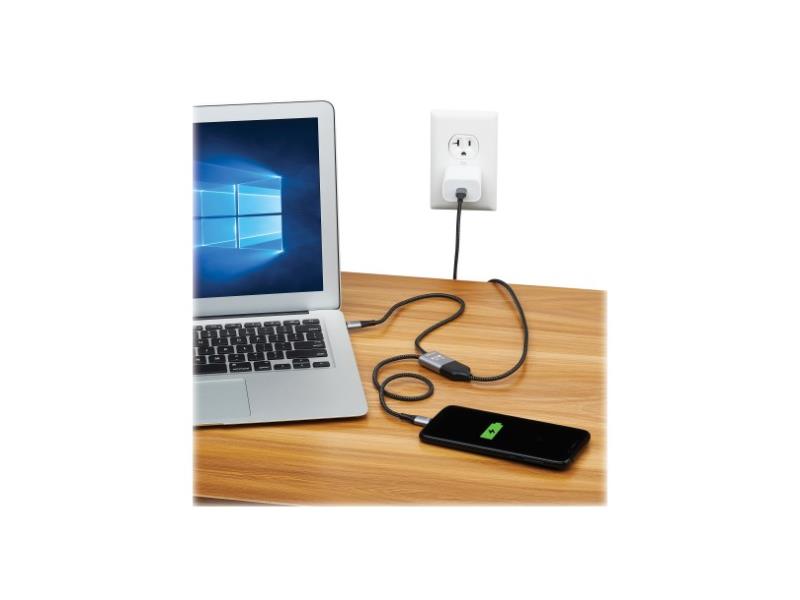

This two-in-one USB Type-C charging cable accommodates two USB-C devices using a single USB-C charging port. The U420P-2X6-100W supports up to 100W (20V 5A) of power to a single device, such as a laptop or handheld video game console. When charging two devices simultaneously, one USB-C connector end provides up to 80W (20V 4A), while the other USB-C end provides up to 18W (9V 2A). Both connectors are clearly marked to identify the charging output levels. Note: To support full charging capabilities, the USB-C charger must be 100W or higher.

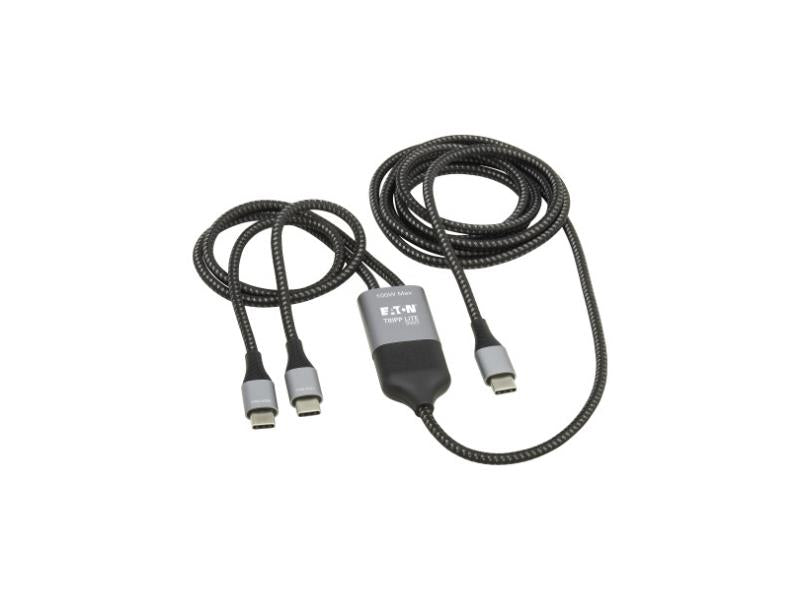

The total length of the U420P-2X6-100W is six feet with a 4.9-foot USB-C male input connector and two 13-inch USB-C male connectors. Though the cable is primarily intended for charging, it also supports USB 2.0 data transfer speeds up to 480 Mbps for syncing a device during charging. The U420P-2X6-100W charges a variety of USB Type-C devices due to the different charging profiles it supports. It is compatible with USB-C Power Delivery (PD) 3.0 and PD2.0+PPS (Programmable Power Supply) for modifying voltage and current to provide optimal charging to a connected device based on its actual needs. These standards can operate together to ensure your device is receiving the proper currents and voltages between the device and the charger. This cable also supports Quick Charge (QC) 3.0 and below for charging QC-compatible mobile devices quickly.
Technical Specifications
| Primary Information | |
| Product Description: | Eaton Tripp Lite Series 2-in-1 USB-C Charging Cable (M/2xM) - 100W PD Charging, 6 ft. (1.8 m) - USB-C cable - 24 pin USB-C to 24 pin USB-C - 6 ft |
| Type: | USB-C cable |
| Features: | USB Power Delivery (100W), active cable, Power Delivery 3.0 (PD 3.0) technology, programmable power supply (PPS), 480 Mbps data rate, Quick Charge 2.0, Quick Charge 3.0 |
| Length: | 6 ft |
| Connector: | 24 pin USB-C - male |
| Connector (Second End): | 2 x 24 pin USB-C - male |
| Rated Current: | 5 A |
| Compliant Standards: | USB / USB 2.0 |
| Color: | Black |
| Package Type: | Polybag |
| Manufacturer Warranty: | 3-year warranty |
| Designed For: | P/N: U280-005-WS4C1, U280-006-C3A-ST, U280-C02-63W-1B, U280-W01-100C1G, U280-W01-20C1-G, U280-WF1-20C1-G, U280-WF1-45C1-G |
| General | |
| Type: | USB-C cable |
| Jacket Material: | PVC |
| American Wire Gauge (AWG): | 30/23 |
| Rated Current: | 5 A |
| Plated Connector: | Nickel |
| Features: | USB Power Delivery (100W), active cable, Power Delivery 3.0 (PD 3.0) technology, programmable power supply (PPS), 480 Mbps data rate, Quick Charge 2.0, Quick Charge 3.0 |
| Length: | 6 ft |
| Outside Diameter: | 0.14 in |
| Color: | Black |
| Weight: | 2.82 oz |
| Connectivity | |
| Connector: | 24 pin USB-C - male |
| Connector (Second End): | 2 x 24 pin USB-C - male |
| Miscellaneous | |
| Compliant Standards: | USB / USB 2.0, VW-1, EN 55032, EN 55035, FCC Part 15 Class B, ICES (Canada), IEC/EN 63000, RoHS, UKCA |
| Package Details: | Polybag |
| Dimensions & Weight (Shipping) | |
| Service & Support: | 3-year warranty |
| Compatibility Information | |
| Designed For: | P/N: U280-005-WS4C1, U280-006-C3A-ST, U280-C02-63W-1B, U280-W01-100C1G, U280-W01-20C1-G, U280-WF1-20C1-G, U280-WF1-45C1-G |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
