About the product

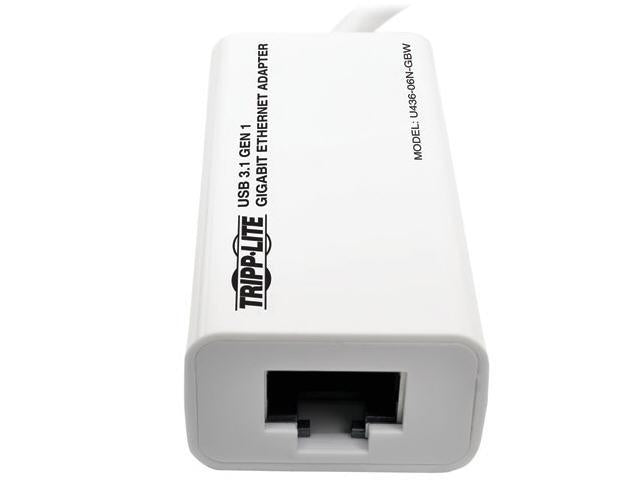

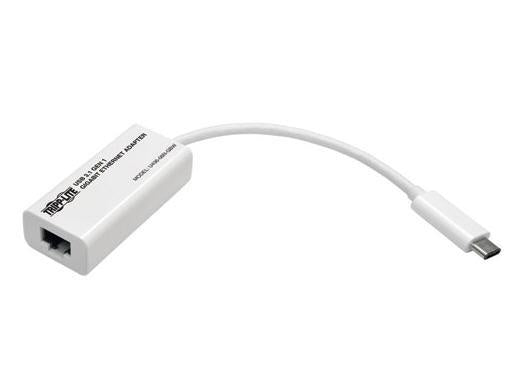

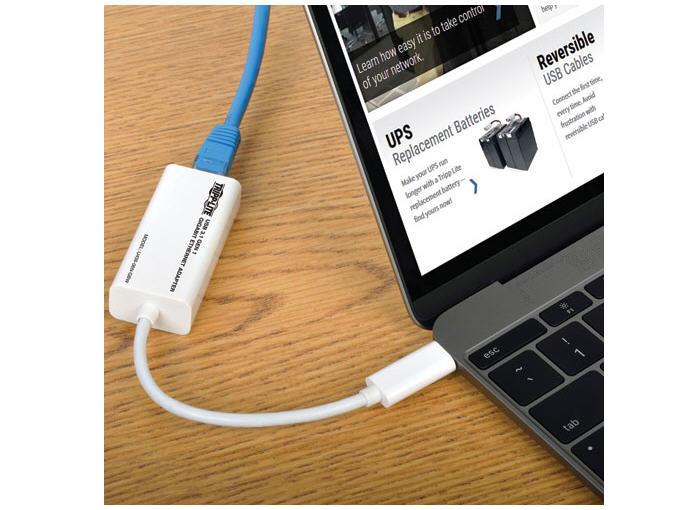

The U436-06N-GBW USB 3.1 Gen 1 Type-C to Gigabit Ethernet NIC Network Adapter allows USB Type-C computers, laptops and smartphones without an NIC (Network Interface Controller) to connect to a network or the Internet using an Ethernet cable. It’s a more convenient and less expensive way to connect to the network than opening your device and installing an internal Ethernet card. Connect the adapter’s USB-C connector to your device’s USB-C port, and connect the adapter’s RJ45 port to your network or Ethernet cable. Just plug and play with no drivers or external power supply needed. It’s compact and lightweight for easy carrying in your laptop bag.

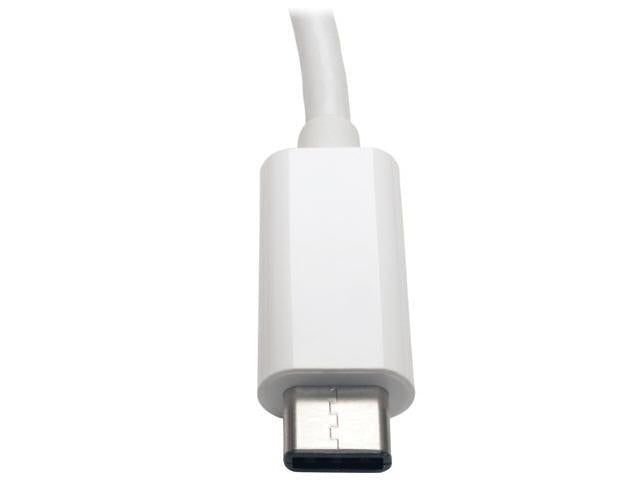

The USB 3.1 Gen 1 adapter supports full 10/100/1000 Mbps network speeds, allowing you to transfer a lot of data quickly and stream audio and video. Unlike traditional USB cables that can be attached only one way, the reversible USB Type-C male connector plugs into a USB port in either direction for fast, fumble-free connection every time. Compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards. Supports 10/100/1000 auto-sensing, twisted-pair crossover detection, auto-correction and Wake-on-LAN power management. Compatible with Windows, Mac and Chromium operating systems. Backward compatible with previous USB versions.
Technical Specifications
| Primary Information | |
| Product Description: | Eaton Tripp Lite Series USB-C to Gigabit Ethernet NIC Network Adapter 10/100/1000 Mbps White - network adapter - USB-C 3.1 - Gigabit Ethernet |
| Device Type: | Network adapter |
| Form Factor: | External |
| Interface (Bus) Type: | USB-C 3.1 |
| Ports: | Gigabit Ethernet |
| Dimensions (WxDxH): | 0.9 in x 0.6 in x 2.6 in |
| Length: | 6 in |
| Weight: | 1.06 oz |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az, USB 3.1 |
| Color: | White |
| System Requirements: | Apple MacOS, Microsoft Windows, Google Chrome OS |
| Manufacturer Warranty: | 3-year warranty |
| General | |
| Device Type: | Network adapter |
| Form Factor: | External |
| Interface (Bus) Type: | USB-C 3.1 |
| Networking | |
| Ports: | Gigabit Ethernet |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features: | Auto-sensing per device, WOL, USB powered, Energy Efficient Ethernet, crossover detection, auto-correction, Thunderbolt 3 compatible |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az, USB 3.1 |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 - female |
| Miscellaneous | |
| Compliant Standards: | Plug and Play, RoHS |
| Color: | White |
| Software / System Requirements | |
| OS Required: | Apple MacOS, Microsoft Windows, Google Chrome OS |
| Dimensions & Weight | |
| Width: | 0.9 in |
| Depth: | 0.6 in |
| Height: | 2.6 in |
| Length: | 6 in |
| Weight: | 1.06 oz |
