Tripp Lite by Eaton U442-DOCK14
Tripp Lite by Eaton U442-DOCK14

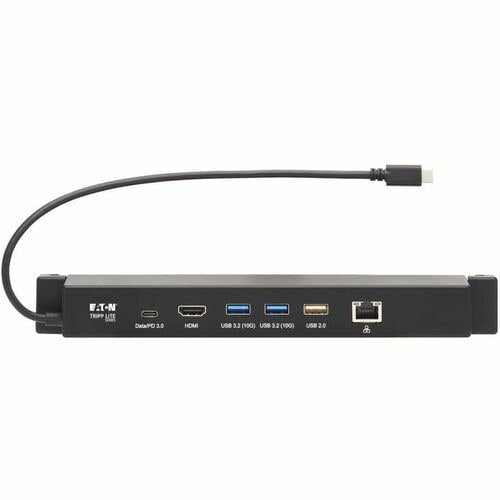

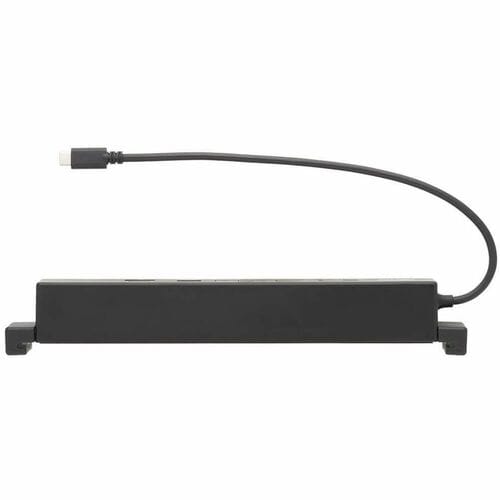

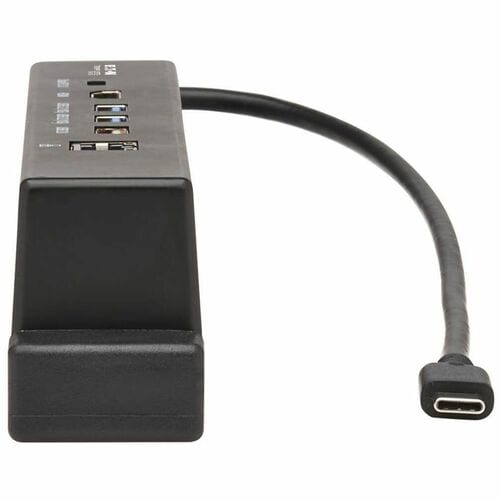

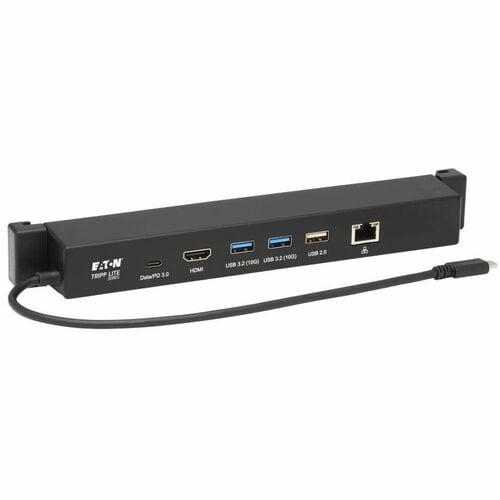

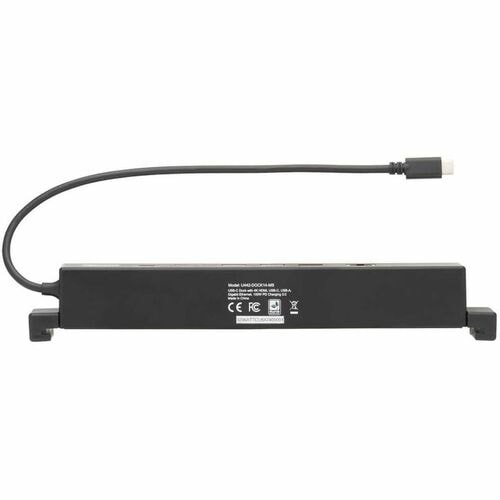

Tripp Lite by Eaton U442-DOCK14-MS Docking Station - for Notebook/Desktop PC/Monitor/Workstation/Keyboard/Mouse/Hard Drive - 100 W - USB Type C - 1 Displays Supported - 4K, 2K - 3840 x 2160, 1920 x 1200, 1280 x 720 - 4 x USB Ports - 1 x USB 2.0 - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - 1 x Mini DisplayPort - Black - Wired - Gigabit Ethernet - Portable
VPN:U442-DOCK14-MS SKU:AC185747 UPC:Loading
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details










Recently Viewed
Tripp Lite by Eaton U442-DOCK14
Product information summary

About the product

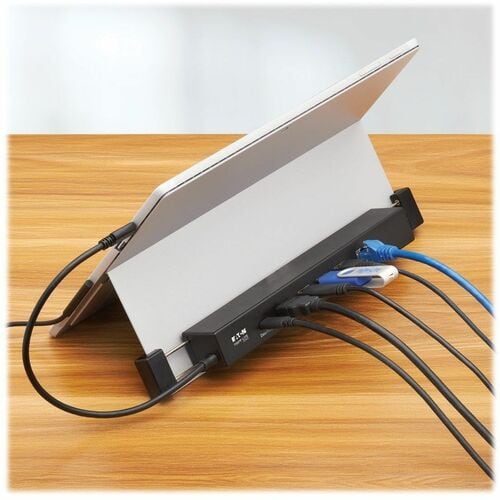

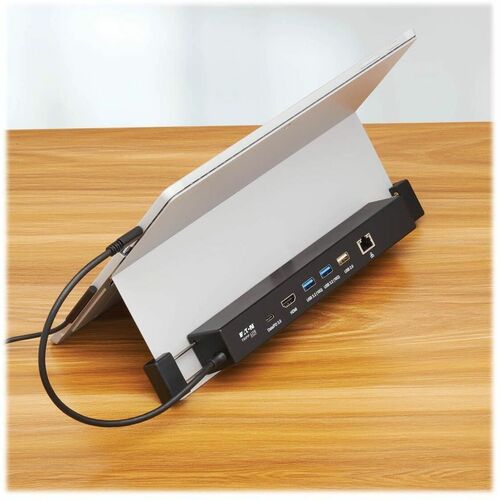

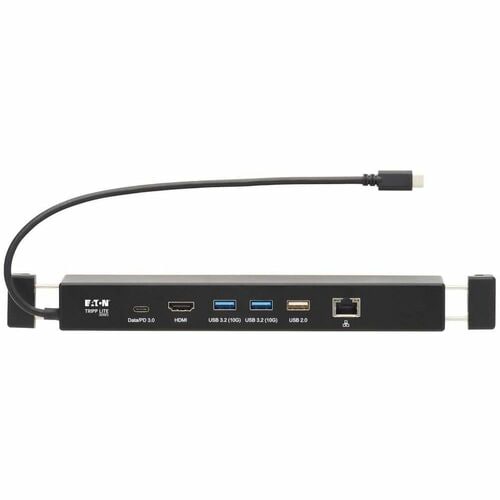

USB-C Docking Station Turns Your Microsoft Surface into a Versatile Workstation

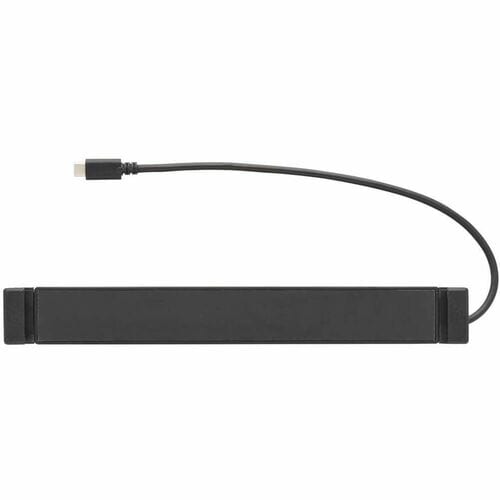

This multipurpose dock is compatible with any Surface device with a USB-C port. An adjustable clamp firmly secures the dock to compatible Surface devices up to 12 inches (30.5 centimeters) wide. You can connect to a wired Gigabit Ethernet network, transmit 4K video with audio to a larger screen, add a thumb drive and other USB peripherals, and charge your Surface, all at the same time. Note: This dock clamps to the following models: Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8 and Surface Pro X. It also works with other Surface devices with a USB-C port, but cannot clamp to them.
Transmits Crystal-Clear 4K Video with Digital Audio
The HDMI port supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. HDCP 2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. You may also connect to a DVI display by connecting an HDMI-to-DVI adapter (sold separately).
USB 3.2 Gen 2 Ports Connect Keyboards, Thumb Drives and Other Peripherals
Two USB-A ports and one USB-C port support USB 3.2 Gen 2 data transfer rates up to 10 Gbps for USB peripherals, such as flash drives, RAID storage, mice and keyboards. Another USB-A port supports USB 2.0 specifications for devices that require less speed. All ports are backward compatible with previous USB generations, so you can use legacy equipment.
PD Charging Port Charges Host Device via AC Wall Charger
The USB-C Power Delivery port supports power output up to 20V 5A (100W), which is more than sufficient for charging and powering the connected Surface. Just connect the device's wall charger to both the USB-C PD port and an AC outlet.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
- HDMI port supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video
- USB hub ports allow connection of flash drives, hard drives and other peripherals
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C PD 3.0 port supports 20V 5A (100W) power output for charging host device
- 1-year limited warranty
Technical Specifications
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Power Description | |
Maximum Power Supply Wattage | 100 W |
Miscellaneous | |
Package Contents |
|
Compatibility | Clamps to any Microsoft Surface with USB-C port and width of 12 in. or less, including Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8, Surface Pro Also works with all other Surface devices with USB-C port, but cannot clamp to them |
Environmentally Friendly | Yes |
Brand Compatibility | Microsoft |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
General Information | |
Product Type | Docking Station |
Manufacturer Part Number | U442DOCK14MS |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | U442-DOCK14-MS |
Product Name | U442-DOCK14-MS Docking Station |
Brand Name | Tripp Lite by Eaton |
Physical Characteristics | |
Weight (Approximate) | 8.80 oz (249.48 g) |
Form Factor | Portable |
Height | 1.26" (32 mm) |
Width | 8.78" (223.01 mm) |
Depth | 1.32" (33.53 mm) |
Product Color | Black |
Color Family | Black |
Technical Information | |
Device Supported | Notebook/Desktop PC/Monitor/Workstation/Keyboard/Mouse/Hard Drive |
Connectivity Technology | Wired |
Number of Displays Supported | 1 |
Supported Resolutions | 1920 x 1200 |
1280 x 720 | |
3840 x 2160 | |
Screen Mode Supported | 2K |
4K | |
Interfaces/Ports | |

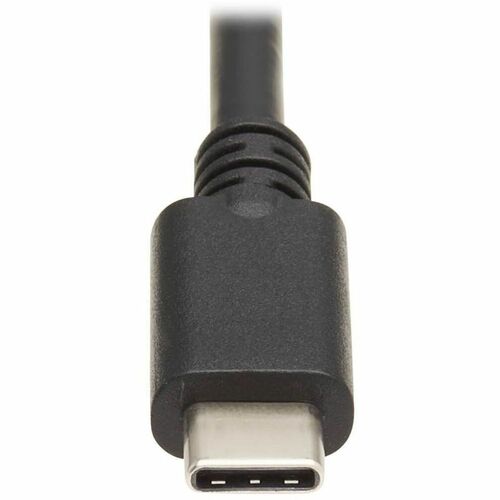

Host Interface | USB Type C |
HDMI | Yes |
HDMI Version | 2.0 |
Number of HDMI Ports | 1 |
Network (RJ-45) | Yes |
DisplayPort | Yes |
Total Number of USB Ports | 4 |
Number of USB 2.0 Ports | 1 |
Number of RJ-45 Ports | 1 |
USB Type-C | Yes |
Number of Mini DisplayPort | 1 |
DisplayPort Version | 1.4 |
Number of USB Type-C Ports | 1 |
Number of USB Type-A Ports | 3 |
Number of USB 3.2 Gen 2 Type-A Ports | 2 |
USB Type-A | Yes |
