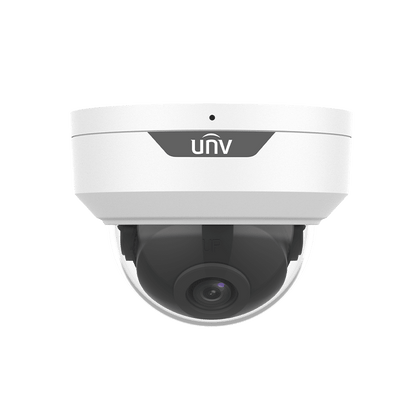

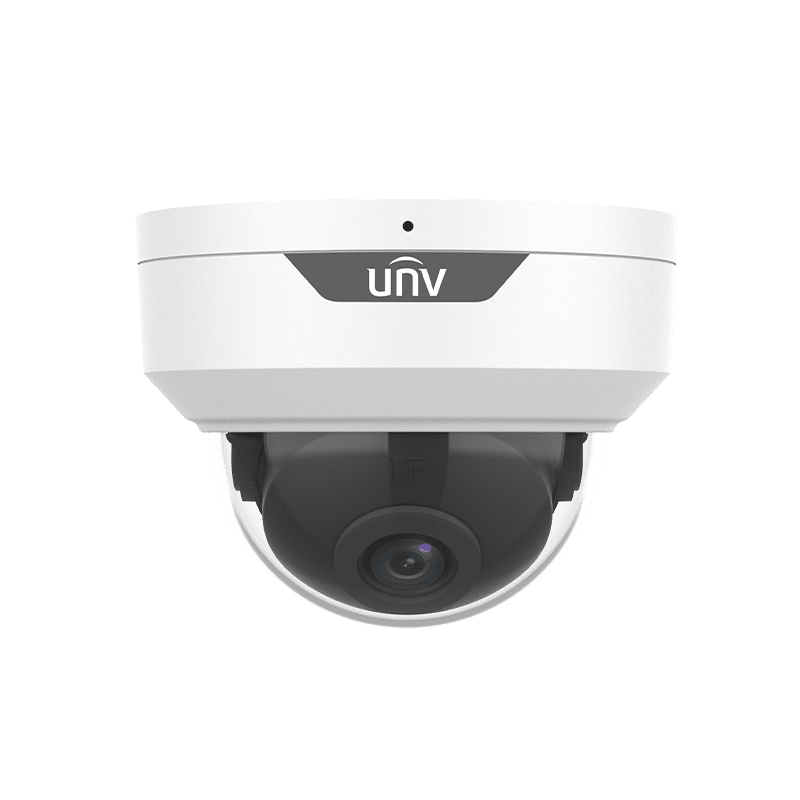

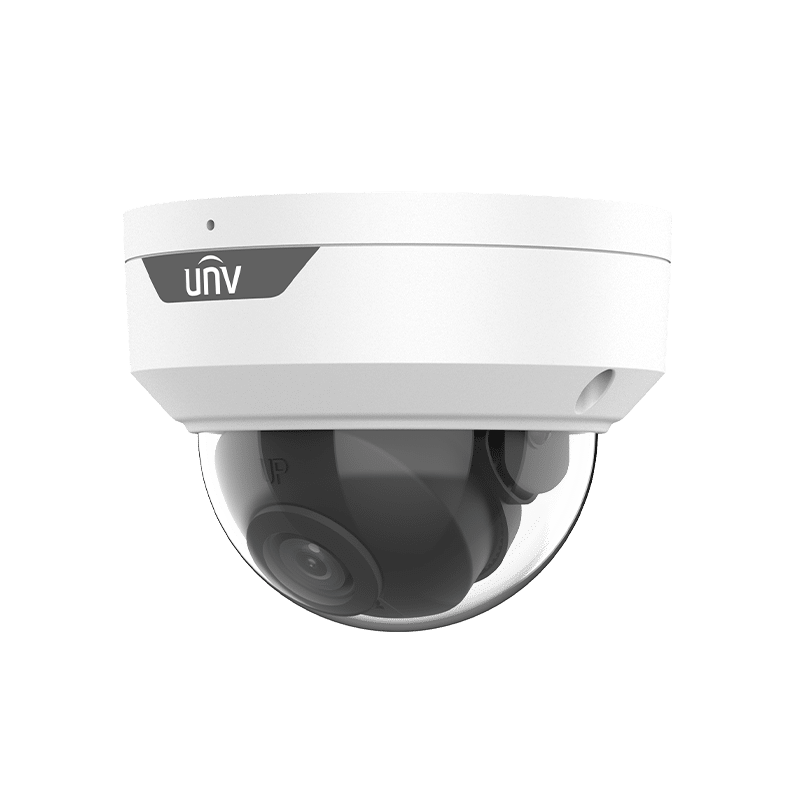

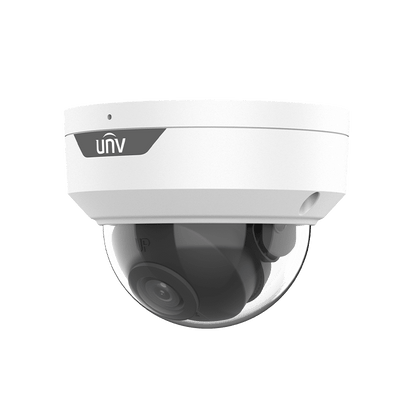

Uniview 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM, White (UAC-D125-AF28M)

Uniview 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM, White (UAC-D125-AF28M)

Regular price $86.99 CAD
Regular price $97.99 CAD Sale price $86.99 CAD
-11% OFF Ask for quote
Shipping calculated at checkout.

Uniview 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM, White (UAC-D125-AF28M)

VPN:UAC-D125-AF28M      SKU:AT980422      UPC:0235C73R

Volume discount available - Ask for quote..

View full details

Recently Viewed

Uniview 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM, White (UAC-D125-AF28M)

Product information summary

Uniview 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM, White (UAC-D125-AF28M)

About the product

UAC-D125-AF28M is a 5MP LightHunter HD IR fixed dome analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports an IR-cut filter with auto-switch (ICR) and provides color images in the daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.

Uniview UAC-D125-AF28M 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM Features:

  • High-quality imaging with 5MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with a high-sensitivity sensor
  • Supports 180° horizontal/vertical flip
  • OSD configuration menu, easy to operate
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • OSD configuration menu in 11 languages
  • Built-in microphone for high-quality audio transmission via coaxial cables
  • Metal base and metal housing
  • 3-Axis

Uniview UAC-D125-AF28M 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM Specifications:

Model: UAC-D125-AF28M

Sensor

  • Pixel: 5MP
  • Size: 1/2.7
  • Minimum illumination: 0.005 lux (F1.6, AGC ON) 0 lux (IR on)

Lens

  • Lens: 2.8mm
  • Lens mount: M12
  • Angle of view: H: 109.1° V: 60.9° D: 126.7° H: 91.3° V: 46.1° D: 109.6°

Illuminator

  • Illuminator One IR illuminator
  • Illumination distance 30m
  • Lifetime ?60,000 hours

Video

  • Resolution: 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
  • Frame rate: TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
  • Shutter time: PAL: 1/25s-1/50000s, NTSC: 1/30s–1/50000s


  • Exposure mode Four modes: Global (default), BLC, HLC, DWDR
  • Day/Night Three modes: Auto (default), Day, Night
  • Noise reduction 2D
  • White balance Two modes: Auto (default), Manual
  • WDR DWDR
  • Smart IR Support
  • Flip : Supports 180° horizontal flip, 180° vertical flip

Audio

  • Microphone Built-in Mic
  • Camera audio: TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

  • Power 5.5mm power interface
  • Video output BNC supports TVI/AHD/CVI/CVBS

Operating environment

  • Temperature -30°C to 60°C (-22°F to 140°F)
  • Humidity ?95% (RH, non-condensing)
  • Surge protection 4kV for power and video output interfaces 3
  • Ingress protection IP67
  • IK rating IK10

General

  • Power DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.3W
  • Mount Surface mount (default), optional tilted mounting bracket
  • Dimensions ?109mm*82.5mm (diameter*height)
  • Material Metal
  • Weight 372g (0.82lb)
  • Certification CB, CE, FCC, UL

Technical Specifications

UAC-D125-AF28M is a 5MP LightHunter HD IR fixed dome analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports an IR-cut filter with auto-switch (ICR) and provides color images in the daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.

Uniview UAC-D125-AF28M 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM Features:

  • High-quality imaging with 5MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with a high-sensitivity sensor
  • Supports 180° horizontal/vertical flip
  • OSD configuration menu, easy to operate
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • OSD configuration menu in 11 languages
  • Built-in microphone for high-quality audio transmission via coaxial cables
  • Metal base and metal housing
  • 3-Axis

Uniview UAC-D125-AF28M 5MP LightHunter Dome Analog Camera, TVI/AHD/CVI/CVBS, 2.8MM Specifications:

Model: UAC-D125-AF28M

Sensor

  • Pixel: 5MP
  • Size: 1/2.7
  • Minimum illumination: 0.005 lux (F1.6, AGC ON) 0 lux (IR on)

Lens

  • Lens: 2.8mm
  • Lens mount: M12
  • Angle of view: H: 109.1° V: 60.9° D: 126.7° H: 91.3° V: 46.1° D: 109.6°

Illuminator

  • Illuminator One IR illuminator
  • Illumination distance 30m
  • Lifetime ?60,000 hours

Video

  • Resolution: 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
  • Frame rate: TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
  • Shutter time: PAL: 1/25s-1/50000s, NTSC: 1/30s–1/50000s


  • Exposure mode Four modes: Global (default), BLC, HLC, DWDR
  • Day/Night Three modes: Auto (default), Day, Night
  • Noise reduction 2D
  • White balance Two modes: Auto (default), Manual
  • WDR DWDR
  • Smart IR Support
  • Flip : Supports 180° horizontal flip, 180° vertical flip

Audio

  • Microphone Built-in Mic
  • Camera audio: TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

  • Power 5.5mm power interface
  • Video output BNC supports TVI/AHD/CVI/CVBS

Operating environment

  • Temperature -30°C to 60°C (-22°F to 140°F)
  • Humidity ?95% (RH, non-condensing)
  • Surge protection 4kV for power and video output interfaces 3
  • Ingress protection IP67
  • IK rating IK10

General

  • Power DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.3W
  • Mount Surface mount (default), optional tilted mounting bracket
  • Dimensions ?109mm*82.5mm (diameter*height)
  • Material Metal
  • Weight 372g (0.82lb)
  • Certification CB, CE, FCC, UL
