About the product

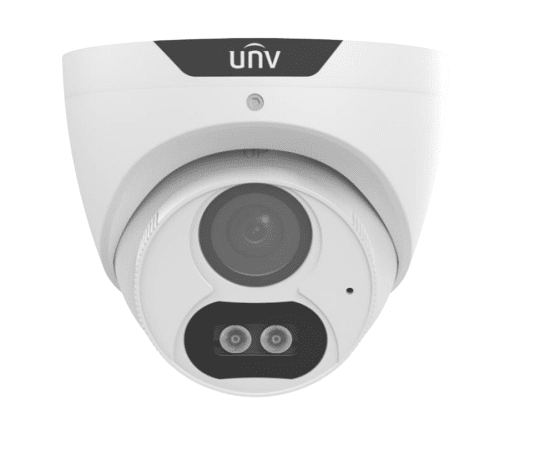

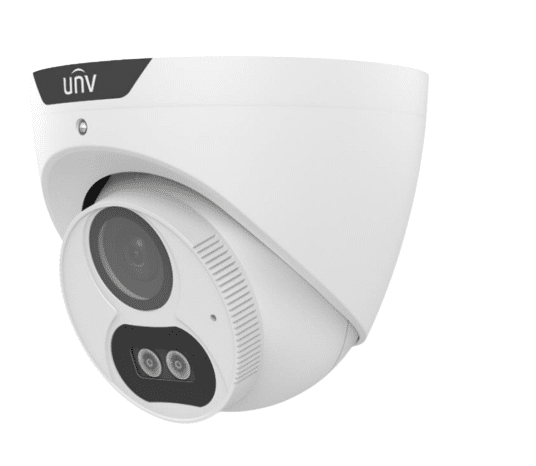

UAC-T125-AF28(40)M-W is a 5MP ColorHunter HD fixed turret analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. The camera supports audio input, synchronous transmission of audio and video, and provides 24/7 color images.
Uniview 5MP ColorHunter HD Fixed Turret Analog, TVI/AHD/CVI/CVBS, 2.8MM, White Features:
- 5MP high-quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
- Metal front face and housing
- 3-Axis
Uniview 5MP ColorHunter HD Fixed Turret Analog, TVI/AHD/CVI/CVBS, 2.8MM, White Specifications:
Model: UAC-T125-AF28M-W
Sensor:
- Pixel: 5MP
- Size: 1/2.7
- Minimum illumination:
- 0.005lux (F1.4, AGC ON)
- 0 lux (white light on)
Lens:
- Lens: 2.8mm
- Lens mount: M12
- Angle of view: H: 111.5°, V: 58.9°, D: 134.8°
Illuminator:
- Two white-light illuminators
- Illumination distance: 40m
- Lifetime: ?60,000 hours
Video:
- Resolution:
- 5MP@25fps: 2880(H)×1620(V)
- 5MP@20fps: 2592(H)×1944(V)
- 5MP@12.5fps: 2592(H)×1944(V)
- 4MP: 2560(H)×1440(V)
- 1080P: 1920(H)×1080(V)
- Frame rate:
- TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVBS: PAL, NTSC
- Shutter time:
- PAL: 1/25s-1/50000s
- NTSC: 1/30s–1/50000s
Image:
- Exposure mode: Four modes - Global (default), BLC, HLC, DWDR
- Day/Night: 24/7 color images
- Digital noise reduction: 2D
- White balance: Two modes - Auto (default), Manual
- WDR: DWDR
- Flip: Supports 180° horizontal flip, 180° vertical flip
Audio:
- Microphone: Built-in Mic
- Camera audio:
- TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface:
- Power: 5.5mm power interface
- Video output: BNC, supports TVI/AHD/CVI/CVBS
Operating environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ?95% (RH, non-condensing)
- Surge protection: 4kV
- Ingress protection: IP67
General:
- Power: DC12V (±25%), with reverse polarity protection and surge protection. Max 3.28W
- Mount: Surface mount (default), optional junction box, and wall mount bracket
- Dimensions: ?111mm96mm (diameter height)
- Material: Metal and plastic
- Weight: 356g (0.79lb)
- Certification: CB, CE, FCC, UL
Technical Specifications
UAC-T125-AF28(40)M-W is a 5MP ColorHunter HD fixed turret analog camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. The camera supports audio input, synchronous transmission of audio and video, and provides 24/7 color images.
Uniview 5MP ColorHunter HD Fixed Turret Analog, TVI/AHD/CVI/CVBS, 2.8MM, White Features:
- 5MP high-quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high-quality audio transmission via coaxial cables
- Metal front face and housing
- 3-Axis
Uniview 5MP ColorHunter HD Fixed Turret Analog, TVI/AHD/CVI/CVBS, 2.8MM, White Specifications:
Model: UAC-T125-AF28M-W
Sensor:
- Pixel: 5MP
- Size: 1/2.7
- Minimum illumination:
- 0.005lux (F1.4, AGC ON)
- 0 lux (white light on)
Lens:
- Lens: 2.8mm
- Lens mount: M12
- Angle of view: H: 111.5°, V: 58.9°, D: 134.8°
Illuminator:
- Two white-light illuminators
- Illumination distance: 40m
- Lifetime: ?60,000 hours
Video:
- Resolution:
- 5MP@25fps: 2880(H)×1620(V)
- 5MP@20fps: 2592(H)×1944(V)
- 5MP@12.5fps: 2592(H)×1944(V)
- 4MP: 2560(H)×1440(V)
- 1080P: 1920(H)×1080(V)
- Frame rate:
- TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVBS: PAL, NTSC
- Shutter time:
- PAL: 1/25s-1/50000s
- NTSC: 1/30s–1/50000s
Image:
- Exposure mode: Four modes - Global (default), BLC, HLC, DWDR
- Day/Night: 24/7 color images
- Digital noise reduction: 2D
- White balance: Two modes - Auto (default), Manual
- WDR: DWDR
- Flip: Supports 180° horizontal flip, 180° vertical flip
Audio:
- Microphone: Built-in Mic
- Camera audio:
- TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface:
- Power: 5.5mm power interface
- Video output: BNC, supports TVI/AHD/CVI/CVBS
Operating environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ?95% (RH, non-condensing)
- Surge protection: 4kV
- Ingress protection: IP67
General:
- Power: DC12V (±25%), with reverse polarity protection and surge protection. Max 3.28W
- Mount: Surface mount (default), optional junction box, and wall mount bracket
- Dimensions: ?111mm96mm (diameter height)
- Material: Metal and plastic
- Weight: 356g (0.79lb)
- Certification: CB, CE, FCC, UL
