About the product

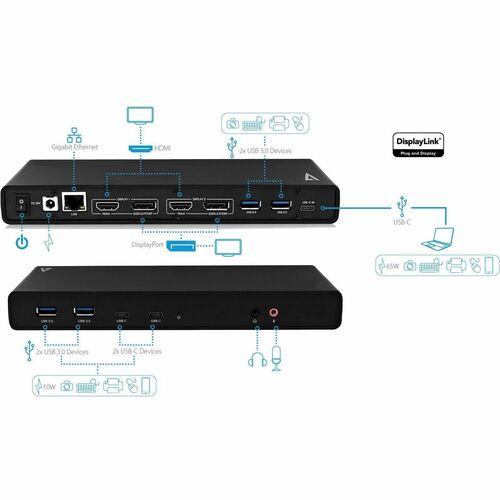

The UCDDS Universal USB-C Docking Station from V7 adds HDMI, DisplayPort, Audio, Ethernet, and USB-C plus USB 3.0 to almost any computer, all while charging your device up to 65 Watts. It features HDMI and DisplayPort monitor outputs that can be used to expand or mirror your desktop for the ultimate in productivity. Both HDMI and DisplayPort outputs support video resolution up to 4K for a stunning display no matter what's on screen. This all-in-one solution combines USB-C and USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, making it the perfect accessory for easily connecting to all of your devices while charging at the same time.
- Connect your Notebook or PC to monitors and your favorite accessories and charge your computer at the same time via a single cable
- HDMI and DisplayPort connections supporting up to 2 displays at 4K or 1 display at 5K resolution
- 4 x USB 3.0 ports for connecting and charging your USB accessories
- 2 x USB-C 3.1 ports for connecting and charging your USB-C accessories
- Thunderbolt compatible Power Delivery Option for USB-C, up to 65W output to charge your mobile computer
- Network and Internet access with Gigabit Ethernet port, supporting 10/100/1000 Mbps speeds
- 3.5 mm audio input / output jacks for headphone and microphone connectivity
- Power-saving on / off switch allowing quick and easy reset of the docking station
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Input Voltage Detail | 230 V AC |
| 120 V AC | |
| Physical Characteristics | |
| Weight (Approximate) | 5.60 oz (158.76 g) |
| Length | 8.86" (225.04 mm) |
| Height | 0.98" (24.89 mm) |
| Width | 3.35" (85.09 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | UCDDS-1N |
| Manufacturer Website Address | http://www.v7-world.com |
| Packaged Quantity | 1 |
| Manufacturer | V7 |
| Product Model | UCDDS-1N |
| Product Name | Dual DisplayLink 4K Universal Docking Station with USB-C Power Delivery |
| Brand Name | V7 |
| Software | |
| Operating System Supported | Windows 8 |
| Windows 7 | |
| Windows 11 | |
| Windows 10 | |
| Mac OS X Server 10.8 Mountain Lion | |
| Android | |
| ChromeOS | |
| Linux | |
| Technical Information | |
| Device Supported | Desktop PC/Notebook/Monitor |
| Connectivity Technology | Wired |
| Features | Security Lock |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 4096 x 2160 |
| 5120 x 2880 | |
| Screen Mode Supported | 4K |
| 5K | |
| Security Slot Type | Kensington Security Slot |
| Miscellaneous | |
| Additional Information | |
| Package Contents | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Brand Compatibility | HP |
| Sony | |
| Samsung | |
| Microsoft | |
| Lenovo | |
| Dell | |
| Asus | |
| Apple | |
| Acer | |
| Kensington Security Slot | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Host Interface | USB |
| Microphone | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 4 |
| Number of DisplayPorts | 2 |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C 3.1 |
| Number of USB Type-C Ports | 2 |
| USB Power Delivery | 65W |
