About the product

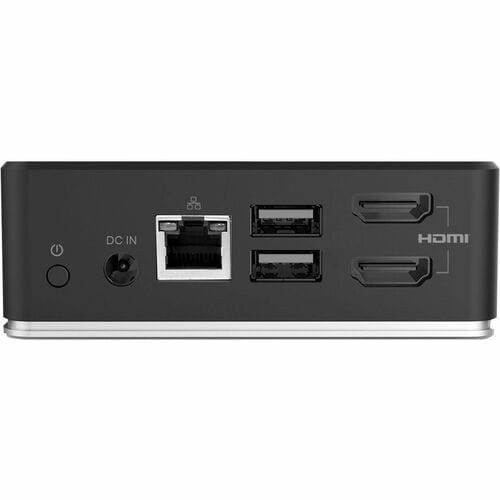

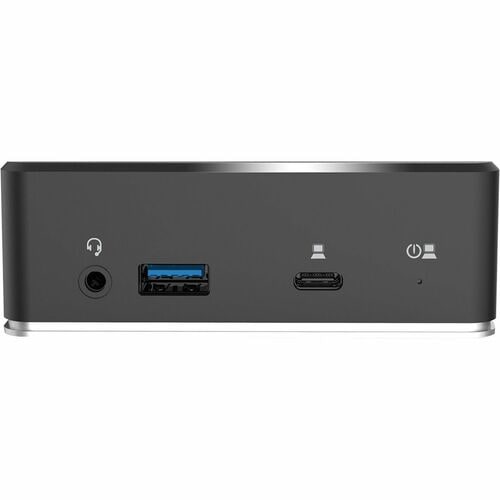

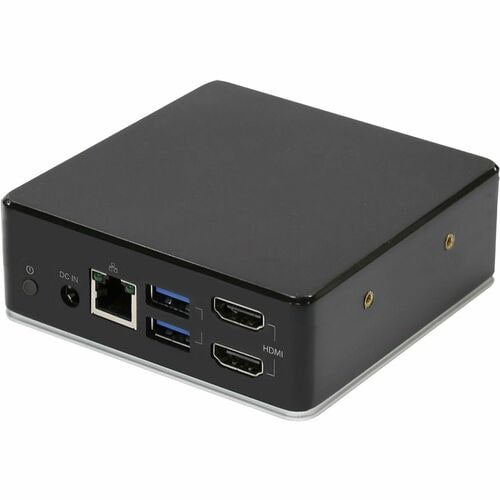

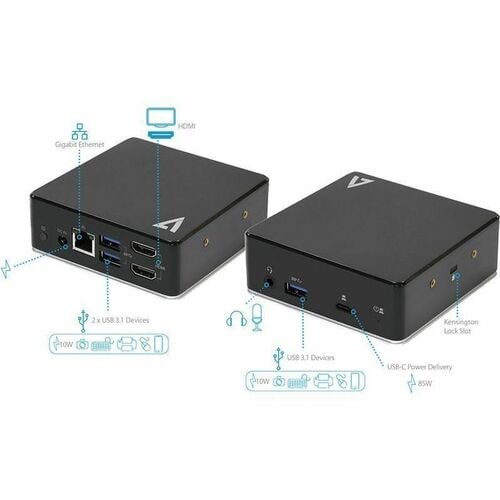

The UCDDS1080P Universal USB-C Docking Station from V7 adds Dual HDMI, Combo 3.5 mm Audio, Gigabit Ethernet, and 3 USB 3.1 ports to almost any computer, all while charging your computer with USB-C 3.1 Power Delivery (PD 3.0) up to 85 Watts. The front USB port supports BC 1.2 and Apple Charge. It features HDMI display outputs that can be used to expand or mirror your desktop for the ultimate in productivity. Includes 100W Power Supply.
- Connect your computer to monitors and your favorite accessories and charge your computer at the same time via a single cable
- Two HDMI 1.4 ports supporting up to 1080p with 60Hz refresh rate
- 2 rear USB 3.1 ports for connecting and charging your USB accessories (5V/.9A). The front USB port supports Battery Charge (BC 1.2) and Apple Charge 2.4A
- Gigabit Ethernet for connecting to the network and Combo 3.5 mm In/Out Audio for connecting to Audio
- Thunderbolt compatible Power Delivery Option for USB-C, up to 85W output to charge your mobile computer
Technical Specifications
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Input Voltage Detail | 230 V AC |
| 120 V AC | |
| Software | |
| Operating System Supported | macOS |
| Android | |
| ChromeOS | |
| Linux | |
| Windows | |
| Physical Characteristics | |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Length | 3.74" (95 mm) |
| Height | 1.34" (34 mm) |
| Width | 3.74" (95 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | UCDDS1080P |
| Manufacturer Website Address | http://www.v7-world.com |
| Manufacturer | V7 |
| Product Model | UCDDS1080P |
| Product Name | UCDDS1080PUniversal USB-C DisplayLink Docking Station w/ Dual HDMI |
| Brand Name | V7 |
| Technical Information | |
| Device Supported | Desktop PC |
| Connectivity Technology | Wired |
| Features | Security Lock |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 2560 x 1440 |
| 1920 x 1080 | |
| Security Slot Type | Kensington Security Slot |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Total Number of USB Ports | 3 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C Power Delivery 85W |
| USB Power Delivery | 85W |
| Miscellaneous | |
| Additional Information | |
| Package Contents | |
| Country of Origin | China |
| Brand Compatibility | Lenovo |
| HP | |
| Samsung | |
| Microsoft | |
| Acer | |
| Apple | |
| Sony | |
| Asus | |
| Dell | |
| Kensington Security Slot | Yes |
