About the product

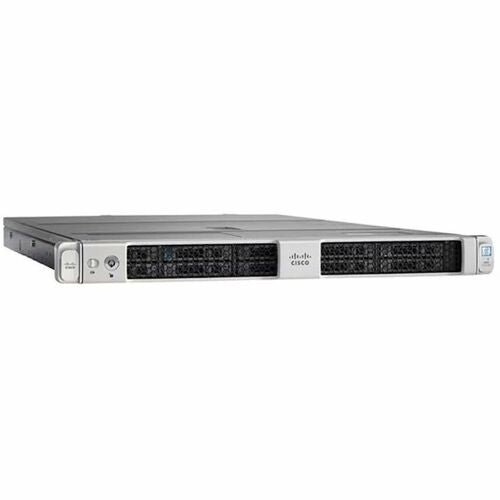

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Technical Specifications
| Warranty | |
| Additional Warranty Information |
|
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Gigabit Ethernet | |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Standard Memory | 768 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 12 |
| Total Number of Memory Slots | 24 |
| Operating System | |
| Operating System Supported | Windows Server 2022 Standard |
| Windows Server 2019 Standard | |
| Windows Server 2019 Datacenter | |
| SuSE Linux Enterprise Server | |
| Red Hat Enterprise Linux | |
| Windows Server 2022 Datacenter | |
| Physical Characteristics | |
| Weight (Approximate) | 59.97 lb (27200 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Hot Swappable Power Supply | Yes |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | UCSSPC220M5CA |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M5 Server |
| Product Series | C220 M5 |
| Brand Name | Cisco |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Remote Management Controller | Baseboard Management Controller (BMC) |
| I/O Expansions | |
| Riser Card | Riser 1 (controlled by CPU 1): One full-height profile, 3/4-length slot with x24 connector and x16 lane. |
| Riser 2 (controlled by CPU 2): One half-height profile, half-length slot with x24 connector and x16 lane. | |
| "Number of Internal 2.5"" Bays" | 10 |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 10 |
| PCI Express Details | One half-height profile, half-length slot with x24 connector and x16 lane. |
| One full-height profile, 3/4-length slot with x24 connector and x16 lane. | |
| Processor | |
| Cache | 38.50 MB |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6238R |
| Processor Core | Octacosa-core (28 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
