About the product
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- With 384 GB memory, run as many programs as you want without losing performance
Technical Specifications
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information |
|
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Technology | DDR4 SDRAM |
| I/O Expansions | |
| Riser Card | One full-height profile, 3/4-length slot with x24 connector and x16 lane; One half-height profile, half-length slot with x24 connector and x16 lane. |
| Total Number of Expansion Slots | 2 |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | UCSSPC220M5CM |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |

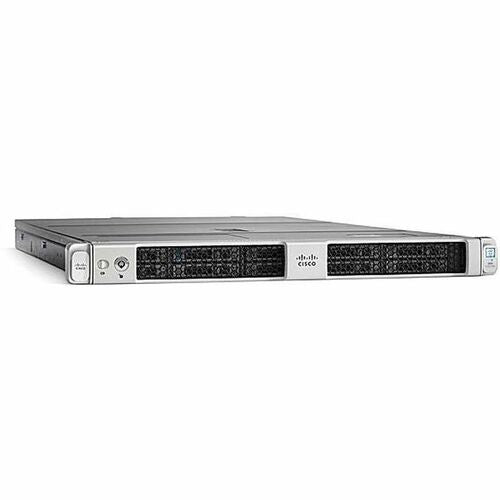

| Product Name | UCS C220 M5 Server |
| Product Series | C220 M5 |
| Brand Name | Cisco |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Remote Management Controller | Cisco Integrated Management Controller (CIMC) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 9 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 384 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 12 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Processor | |
| Cache | 22 MB |
| Processor Speed | 2.90 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 6226R |
| Processor Core | Hexadeca-core (16 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Generation | 2nd Gen |
