About the product
The Plugable UD-3900Z dock is a one-stop upgrade for your Windows tablet, laptop, or desktop. Connect up to 10 accessories through a single USB cable. Includes the latest drivers and firmware for compatibility with Windows 10 and earlier. Fully backward compatible with USB 2.0 PCs and devices. Features two HDMI ports for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port (10/100/1000 supported, full-duplex required), audio input/output, two USB 3.0 ports, and four USB 2.0 ports.
Compatibility
Windows 11, 10, 8.1, 8, and 7 drivers can be automatically installed by Windows Update (with an existing Internet connection) or can be downloaded from our website.
USB graphics require dual-core 2GHz+ CPU for best performance.Up-to-date USB drivers on host system recommended.
Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.
Linux/Unix are not supported.
Power

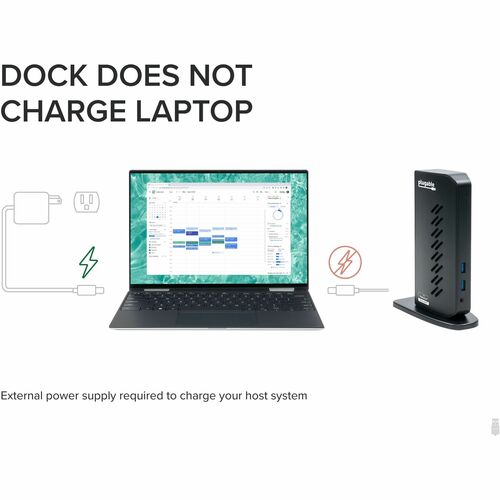

Includes 24W power supply. Dock does not provide power to attached computer.

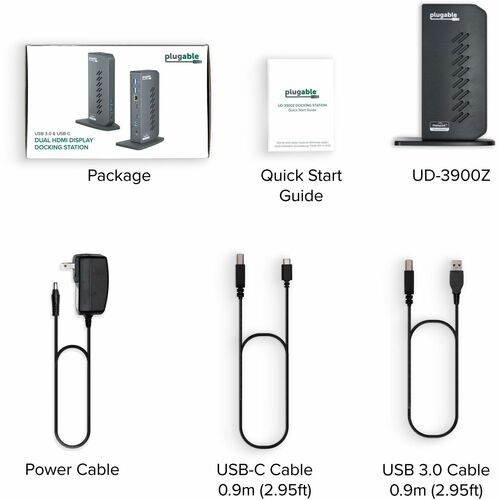

In the Box

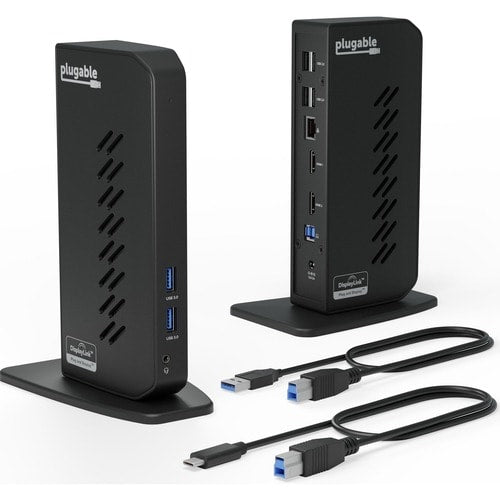

UD-3900Z dock, 24W power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable (USB 2.0 compatible) and USB 3.1 Type-C to Type-B cable, quick-install guide
Compatibility
Windows 11, 10, 8.1, 8, and 7 drivers can be automatically installed by Windows Update (with an existing Internet connection) or can be downloaded from our website.
USB graphics require dual-core 2GHz+ CPU for best performance.Up-to-date USB drivers on host system recommended.
Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.
Linux/Unix are not supported.
Power
Includes 24W power supply. Dock does not provide power to attached computer.
In the Box
UD-3900Z dock, 24W power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable (USB 2.0 compatible) and USB 3.1 Type-C to Type-B cable, quick-install guide

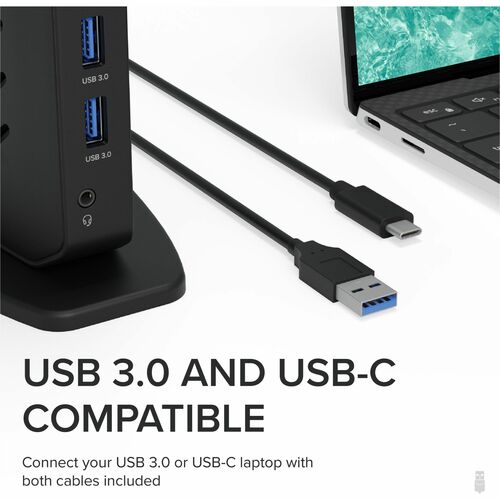

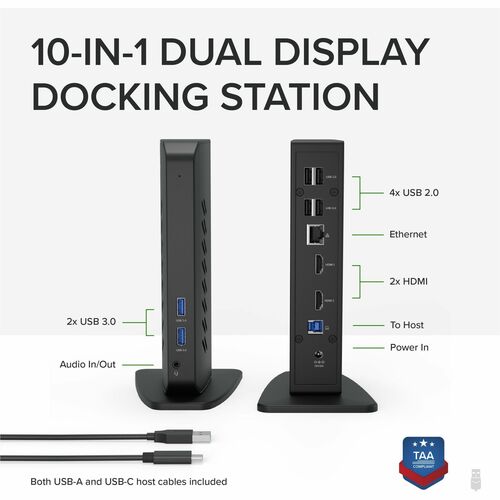

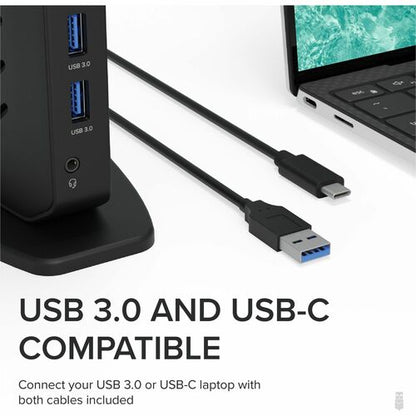

- Flexible Expandability - This USB Laptop Dock provides dual HDMI video outputs, wired Gigabit Ethernet, 3.5mm combination audio jack, two USB 3.0 ports, and four USB 2.0 ports. Includes both USB 3.0 and USB-C cables for flexible host connectivity

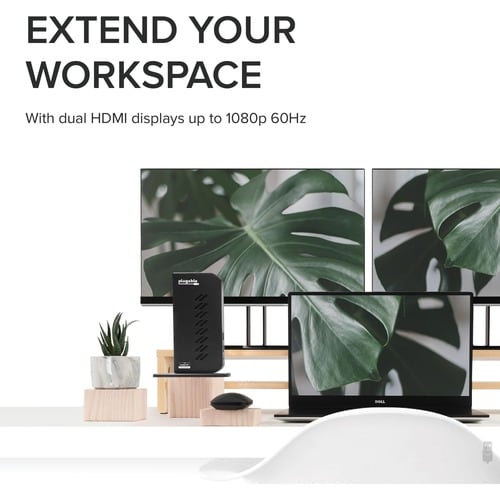

- Dual HD Monitors - Equipped with 2 HDMI ports easily connect two HDMI monitors, each supporting resolutions up to 1920x1200. Lower resolutions such 1080p (1920x1080) are also supported

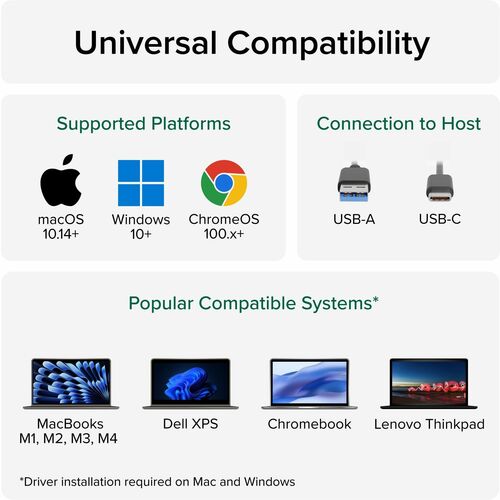

- Compatibility - Docking station is compatible with Windows 11, 10, 8.x, and 7 systems, ChromeOS 100+, and macOS 10.14+. Plug and play driver installation via Windows Update; manual driver installation on Mac. Linux not supported. Dock does not charge host PC
- Recommended Use - For use with web and productivity software at home or the office. Not recommended for gaming. Cannot be mixed with non-DisplayLink USB adapters. DisplayPort connections not supported. Does not support HDCP, will not playback encrypted or copy-protected content
- Warranty and Support - Questions only an expert can answer? When you contact our support team, you're connecting with the engineers who design our devices. Every Plugable product is backed by our Seattle-based support team-even before purchase, and a 2-year limited parts and labor warranty after purchase
Technical Specifications
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 24 W |
| Software | |
| Operating System Supported | macOS |
| Windows | |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible with most modern laptops and desktops running Windows 10 / 8.x / 7 and macOS 10.14+. |
| Country of Origin | Thailand |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | UD-3900Z |
| Manufacturer Website Address | http://www.plugable.com |
| Packaged Quantity | 1 |
| Manufacturer | Plugable Technologies |
| Product Model | UD-3900Z |
| Product Name | Dual HDMI USB Universal Docking Station For Windows |
| Brand Name | Plugable |
| Interfaces/Ports | |
| Host Interface | USB 3.0 Type A |
| USB 3.1 Type C | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.1 Type-C to Type-B cable |
| Number of USB Type-A Ports | 6 |
| USB Type-A | Yes |
| Technical Information | |
| Device Supported | Notebook/Tablet PC/Desktop PC |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 2048 x 1152 |
| 800 x 600 | |
| 640 x 480 | |
| 1024 x 768 | |
| 1152 x 864 | |
| 1280 x 1024 | |
| 1280 x 720 | |
| 1280 x 800 | |
| 1600 x 900 | |
| 1920 x 1200 | |
| Screen Mode Supported | Full HD |
