Plugable USB C Docking Station with Charging, Comp
Plugable USB C Docking Station with Charging, Comp
Plugable USB C Docking Station with Charging, Compatible with Thunderbolt 3 and USB-C MacBooks and Specific Windows, Chromebook, Linux Systems - (HDMI Display, 60W Charging, Ethernet, 3x USB 3.0 Ports) - TAA
VPN:UD-CA1A SKU:AC208009 UPC: 911WWU
Add an extra monitor with dedicated HDMI outputPower your system directly from the dock using USB-C Power DeliveryAdds 5 USB ports, gigabit ethernet, audio input and output
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details







Recently Viewed
Plugable USB C Docking Station with Charging, Comp
Product information summary

About the product

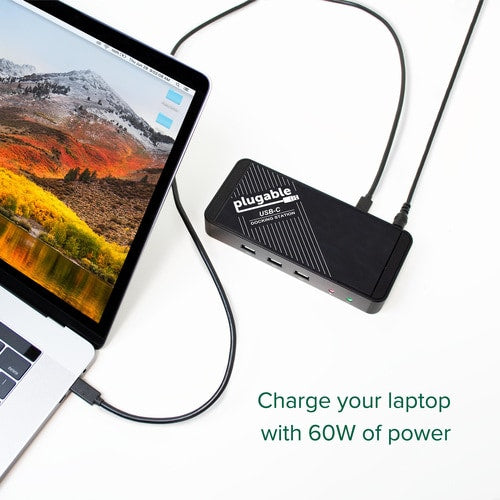

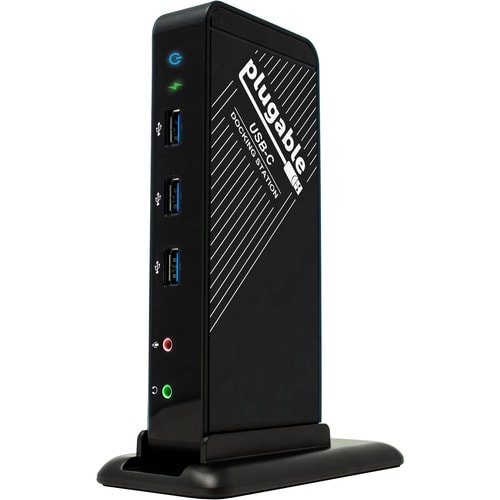

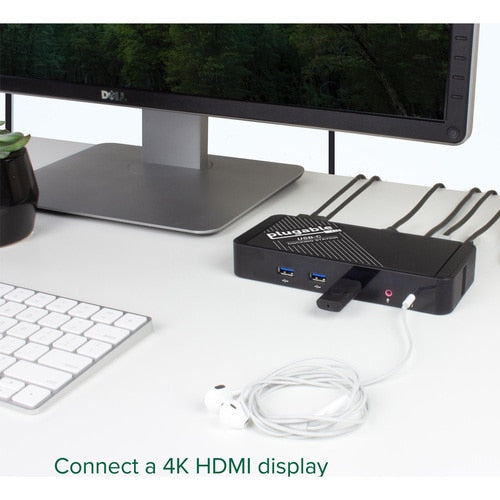

The Plugable UD-CA1A USB-C Docking Station provides an additional display output (via Alternate Mode), up to 60 Watts of Power Delivery (PD) to charge your host computer via USB-C (host computer must support PD over USB-C), gigabit Ethernet, audio, and expanded USB device connectivity. All through a single USB-C cable. The UD-CA1A is TAA compliant.\nPerformance\nThe UD-CA1A docking station utilizes Alternate Mode display technology which uses a direct pipeline to the graphics processor in your system, and your connected monitor will function and perform as a natively attached display. The Alternate Mode video (native DisplayPort signal) gets converted to HDMI 1.4 to accommodate widely available HDMI monitors.\nCompatible Systems\nPlug and play installation on systems like the 2018 MacBook Air, 2016/2017/2018 MacBook Pros, Chromebooks, Microsoft Surface Book 2, Microsoft Surface Go, HP Spectre x360 13 , and Dell XPS (9350, 9550, 9360, 9560, 9370, 9380), Lenovo X1 Carbon X1 G5.\nIncompatible Systems\nNo current Android phones or tablets with USB-C support Alternate Mode video output

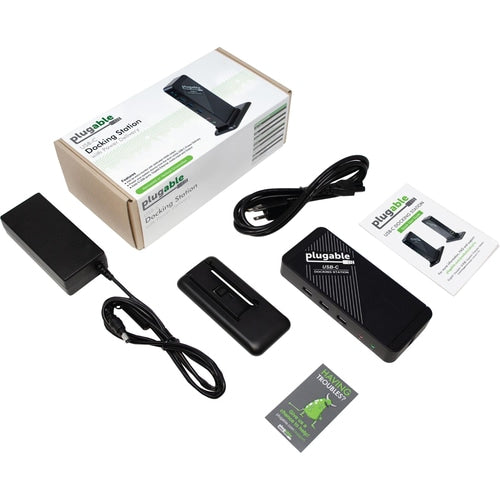

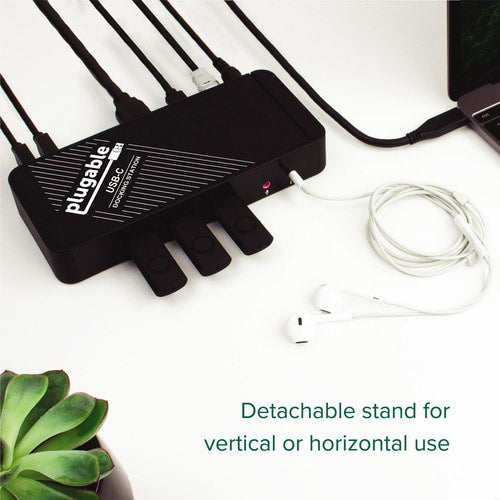

ASMedia USB 3.1 controllers do not support Alternate Mode video at this time.\nPower and Charging\nThe UD-CA1A's power supply can charge hosts with up to 60 Watts of power via the USB Power Delivery standard. As mentioned above, some devices which support video output over USB-C will not charge via USB-C. For these systems, the charger from your system manufacturer will be required. \nIn the Box\nUD-CA1A docking station with stand, 1m long USB-C cable, 80W (20V, 4A) power supply with US power plug, and quick start guide. More from the ManufacturerAdd an extra monitor with dedicated HDMI outputPower your system directly from the dock using USB-C Power DeliveryAdds 5 USB ports, gigabit ethernet, audio input and outputHorizantal or Vertical Orientation
Technical Specifications
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Power Description | |
Maximum Power Supply Wattage | 60 W |
Software | |
Operating System Supported | macOS |
Windows | |
General Information | |
Product Type | Docking Station |
Manufacturer Part Number | UD-CA1A |
Manufacturer Website Address | http://www.plugable.com |
Packaged Quantity | 1 |
Manufacturer | Plugable Technologies |
Product Model | UD-CA1A |
Product Name | USB-C Docking Station with Power Delivery/Charging |
Brand Name | Plugable |
Miscellaneous | |
Package Contents |
|
Compatibility |
|
Country of Origin | Taiwan |
Brand Compatibility | Microsoft |
Apple | |
Dell | |
HP | |
Lenovo | |
TAA Compliant | Yes |
Technical Information | |
Device Supported | Notebook/Tablet PC/Desktop PC/Smartphone |
Connectivity Technology | Wired |
Supported Resolutions | 1280 x 1024 |
1024 x 768 | |
1280 x 720 | |
1280 x 800 | |
1600 x 900 | |
1920 x 1080 | |
2560 x 1080 | |
2560 x 1440 | |
3440 x 1440 | |
3840 x 2160 | |
640 x 480 | |
800 x 600 | |
Screen Mode Supported | 4K |

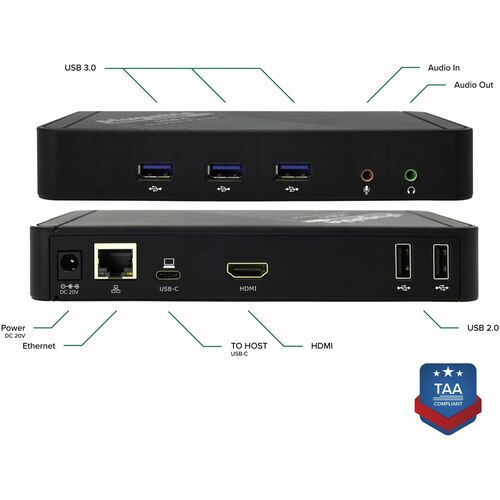

Interfaces/Ports | |
Host Interface | USB Type C |
Microphone | Yes |
HDMI | Yes |
HDMI Version | 1.4 |
Network (RJ-45) | Yes |
Audio Line In | Yes |
Audio Line Out | Yes |
DisplayPort | Yes |
Number of HDMI Outputs | 1 |
Total Number of USB Ports | 5 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.0 Ports | 3 |
Number of RJ-45 Ports | 1 |
USB Type-C | Yes |
USB Type-C Detail | 1 x USB 3.0 Type-C port |
Number of USB Type-A Ports | 5 |
USB Type-A | Yes |
