About the product

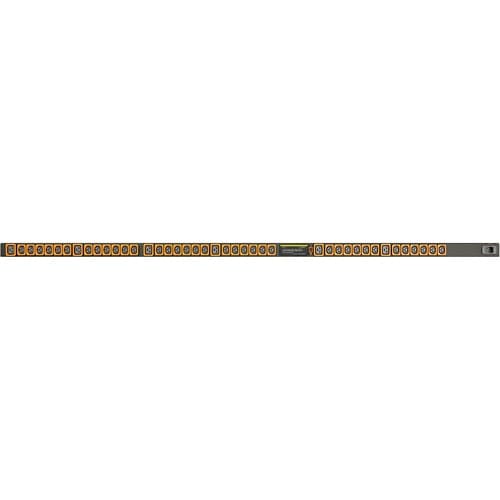

UI10001L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Length | 72" (1828.80 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | UI10001L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MU01X4W0-42PZ67-2C20A9A00-S |
| Product Name | MU01X4W0-42PZ67-2C20A9A00-S 42-Outlets PDU |
| Brand Name | Vertiv Geist |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 240 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| 100 V AC - 120 V AC | |
| Power Rating (Watt) | 3.60 kW |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Basic |
| Receptacle Detail | 36 x U-Lock IEC 60320 C13 |
| 6 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
